10. TOOL FUNCTIONS
607
10.2
TOOL COMPENSATION VALUE/
TOOL COMPENSATION NUMBER/
TOOL COMPENSATION MEMORY
Tool compensation values include tool geometry compensation values
and tool wear compensation values (Fig. 10.2.1 (a)).
The geometry compensation and wear compensation can be combined
into to the tool compensation.
Geometry
compensation
value
Wear
Compensation
value
(a) Geometry and wear com-
pensation are discriminated
Tool com-
pensation
value
(b) Geometry and were compensa-
tion are not discriminated
Standard position Standard position

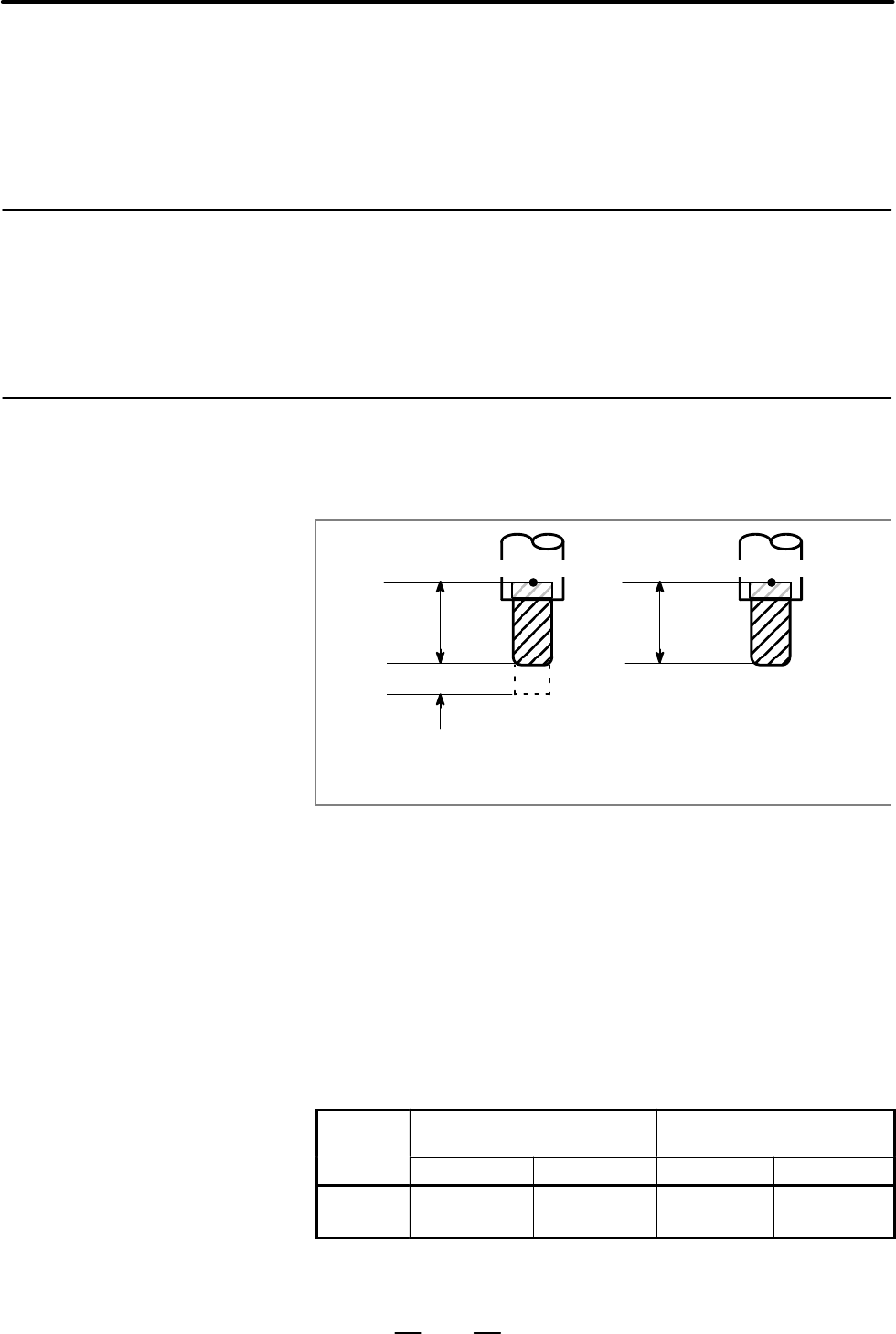

Fig. 10.2.1(a) Geometric compensation and wear compensation
Tool compensation values can be entered into CNC memory from the
MDI or from a program.
A tool compensation value is selected from the CNC memory when the
corresponding code is specified after address H or D in a program.
The value is used for tool length compensation, cutter compensation, or
the tool offset.
Tool offset amount range which can be set is as follows:
Increment
Tool compensation
(Geometry compensation)
Tool wear compensation
system
Metric input Inch input Metric input Inch input
IS-B
IS-C
"999.999mm
"999.9999mm
"99.9999inch
"99.99999inch
"99.999mm
"99.9999mm
"9.9999 inch
"9.99999inch
The memory can hold 400 sets of tool compensation values.
10.2.1
Tool Compensation
Value/Tool Compensation
Number/Tool
Compensation Memory
General (M series)
D Range of tool
compensation value
D Tool compensation
number
