17. PCMCIA ETHERNET FUNCTION
B–63833EN–1/02
968
If an error occurs with the PCMCIA Ethernet function, the error message
screen for the PCMCIA Ethernet function displays an error message.
Display
1 Press the function key
MESSAGE
.
2 Press the continuous menu key at the right end of the soft key display.

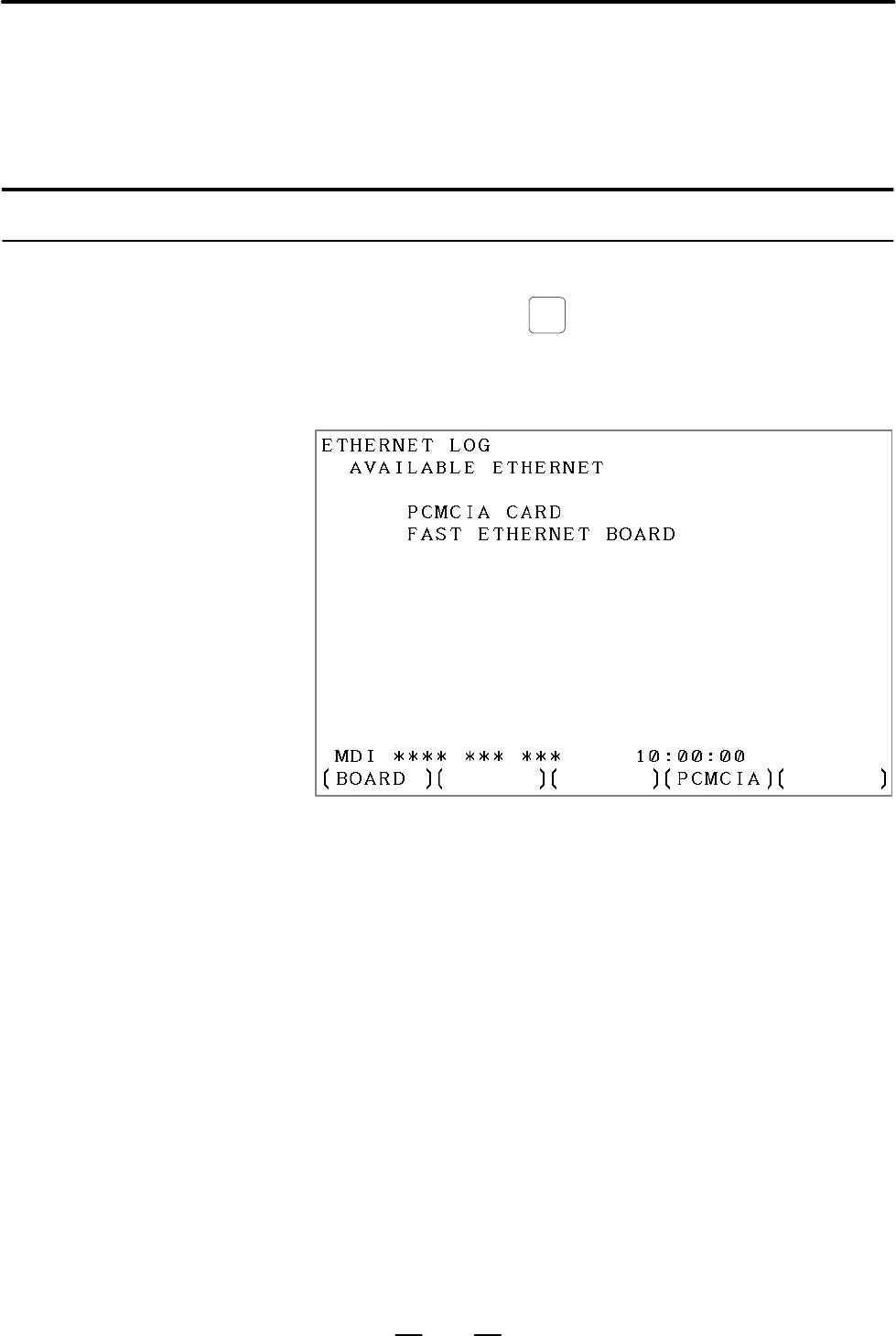

3 Press the [ETHLOG] soft key. The Ethernet log screen appears. The
Ethernet functions currently available are displayed.
The upper row displays ”PCMCIA CARD.”
The lower row displays the usable Ethernet option boards. When no
option board is installed, no information is displayed.
4 By pressing the [PCMCIA] soft key, the error message screen for the
PCMCIA Ethernet function can be displayed.
17.3
PCMCIA ETHERNET
ERROR MESSAGE
SCREEN
Procedure
