Series 0i/0i Mate - Model B Connection manual (Function) Page 343

Connection manual (Function)

Page of 1090

/ 1090

B–63833EN–1/02

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

325

An override value is set with parameter No. 1712. An override value

is valid even for dry run and F1–digit feed specification.

In the feed per minute mode, the actual feedrate is as follows:

F × (inner corner automatic override) × (feedrate override)

For internally offset circular cutting, the feedrate on a programmed path

is set to a specified feedrate (F) by specifying the circular cutting feedrate

with respect to F, as indicated below. This function is valid in the cutter

compensation mode, regardless of the G62 code.

Rc : Cutter center path radius

Rp : Programmed radius

It is also valid for the dry run and the F1–digit feed command.

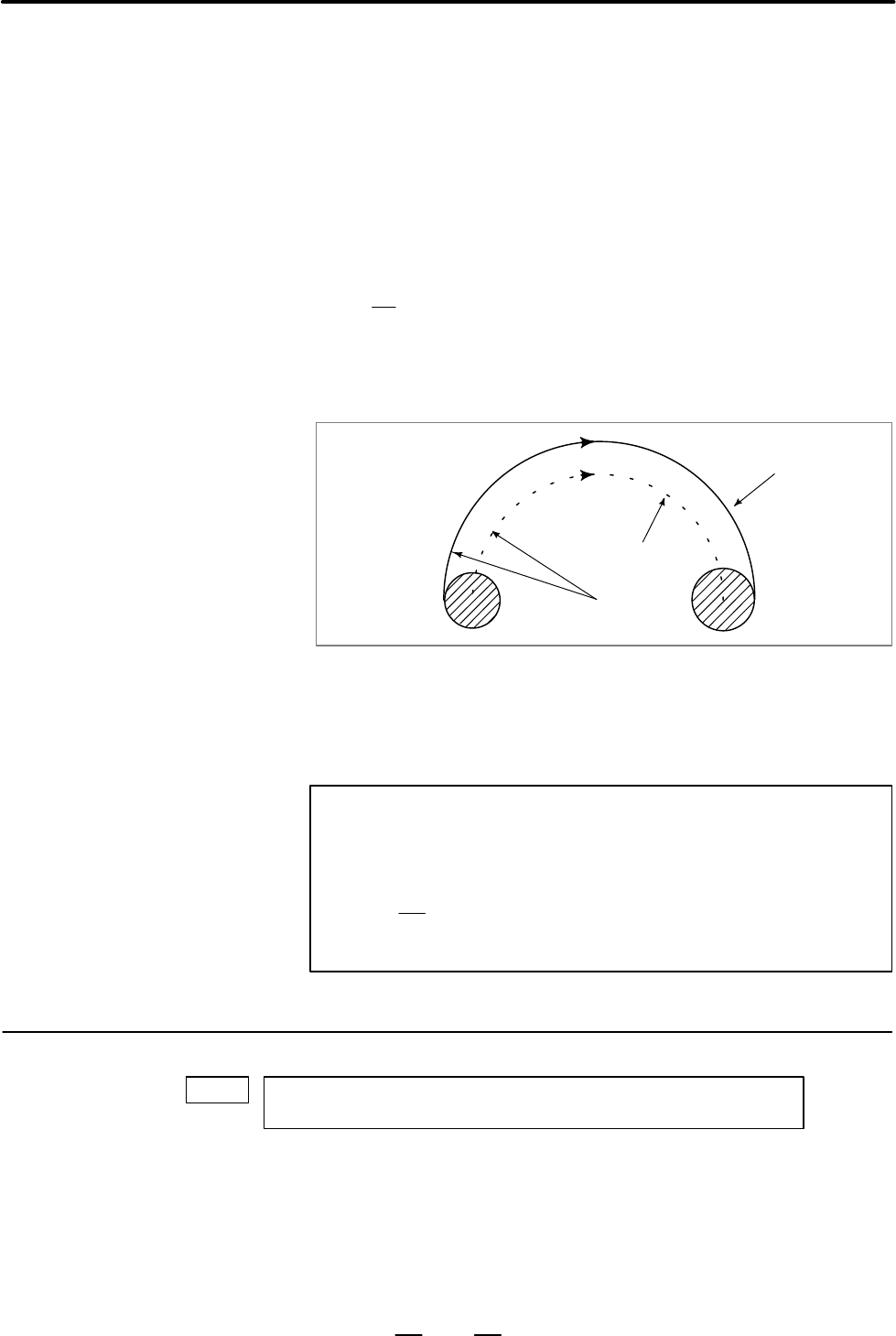

Programmed path

Cutter center

path

Internal circular cutting feedrate change

If Rc is much smaller than Rp, Rc/Rp80; the tool stops. A minimum

deceleration ratio (MDR) is to be specified with parameter No. 1710.

When Rc/Rp

xMDR, the feedrate of the tool is (F×MDR).

CAUTION

When internal circular cutting must be performed together

with automatic override for inner corners, the feedrate of the

tool is as follows:

(inner corner override)

× (feedrate override)

1710

Minimum deceleration ratio (MDR) of the inner circular cutting

rate in automatic corner override

[Data type] Byte

[Unit of data] %

[Valid data range] 1 to 100

Set the minimum deceleration ratio (MDR) in changing the inner circular

cutting feedrate by automatic corner override.

D Override value

D Internal circular cutting

feedrate change

Parameter
