Series 0i/0i Mate - Model B Connection manual (Function) Page 421

Connection manual (Function)

Page of 1090

/ 1090

B–63833EN–1/02

8. AUXILIARY FUNCTION

403

(6)If the completion signal remains set to 1 for longer than period TFIN,

specified in parameter No. 3011 (standard value: 16 msec), the CNC

sets the strobe signal to 0 and reports that the completion signal has

been received.

(7)When the strobe signal is set to 0, set the completion signal to 0 in the

PMC.

(8)When the completion signal is set to 0, the CNC sets all code signals

to 0 and completes all sequences of the miscellaneous function.(*2)

(9)Once all other commands in the same block have been completed, the

CNC executes the next block.

*1 When the tool function is executed, the programmed tool number is

sent as the code signal (T series).

*2 When the spindle–speed function, tool function, or secondary

auxiliary function is executed, the code signal is maintained until a

new code for the corresponding function is specified.

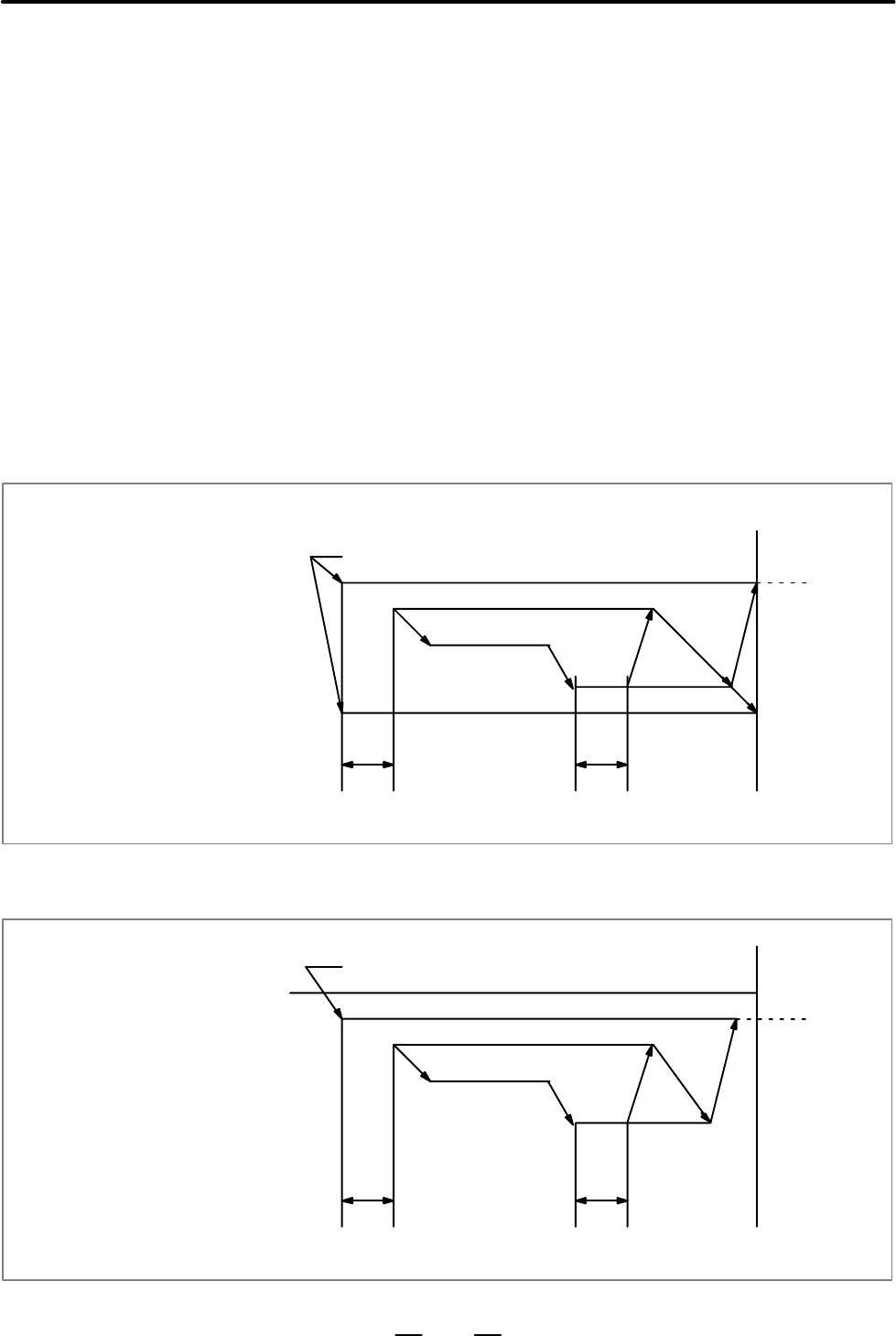

The timing diagram is shown below:

Example 1 Single miscellaneous function specified in a block

(1)(2) (3)

(*2)

TMF TFIN

M command

(independent) Mxxx

code signals M00–M31

Strobe signals MF

PMC side action

End signal FIN

Distribution

end signals DEN

(5) (6) (7)(8) (9)

Example 2 Move command and miscellaneous function in the same block

2a.Execution of a miscellaneous function without waiting for move command completion

(1)(2) (3)

(*2)

TMF TFIN

M command Mxxx

Move command

Code signals M00–M31

Strobe signal MF

PMC side action

End signal FIN

Distribution

end signals DEN

(5) (6) (7) (8) (9)
