17. PCMCIA ETHERNET FUNCTION

B–63833EN–1/02

972

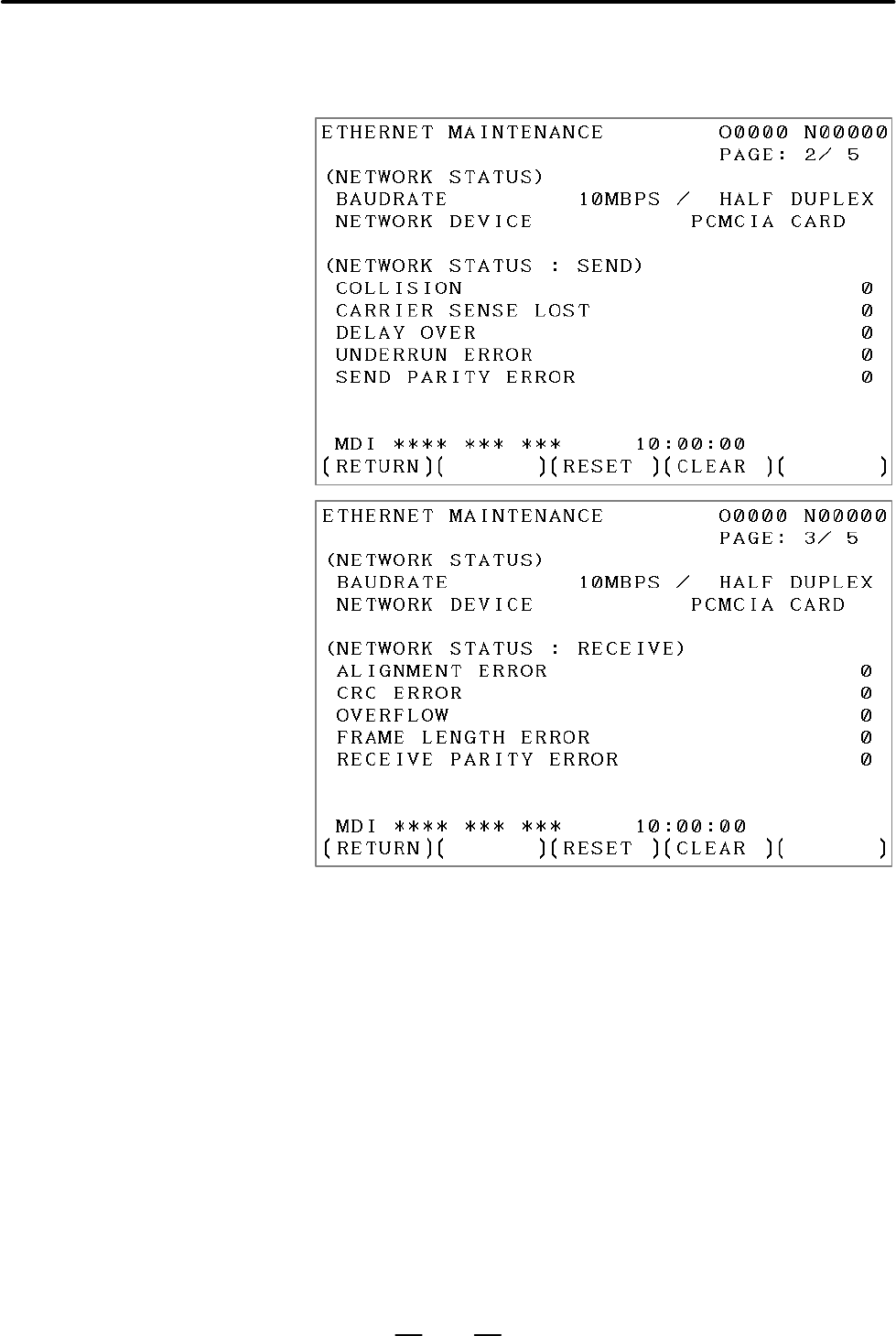

7 The screen below is used to check the communication state of the

PCMCIA Ethernet function and the error detection count of the

Ethernet controller.

The screen consists of two pages: one page for an error detection count

for transmission, and the other for an error detection count for

reception.

By pressing the [CLEAR] soft key, the error detection counters for

transmission and reception can be cleared to 0.

By pressing the [RESET] soft key, the current communication device

can be initialized and communication can be performed from the

initial state. Use this key to reset communication based on the

PCMCIA Ethernet function.
