B–63833EN–1/02

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

359

tb tb tb tb

ta ta

tc tc

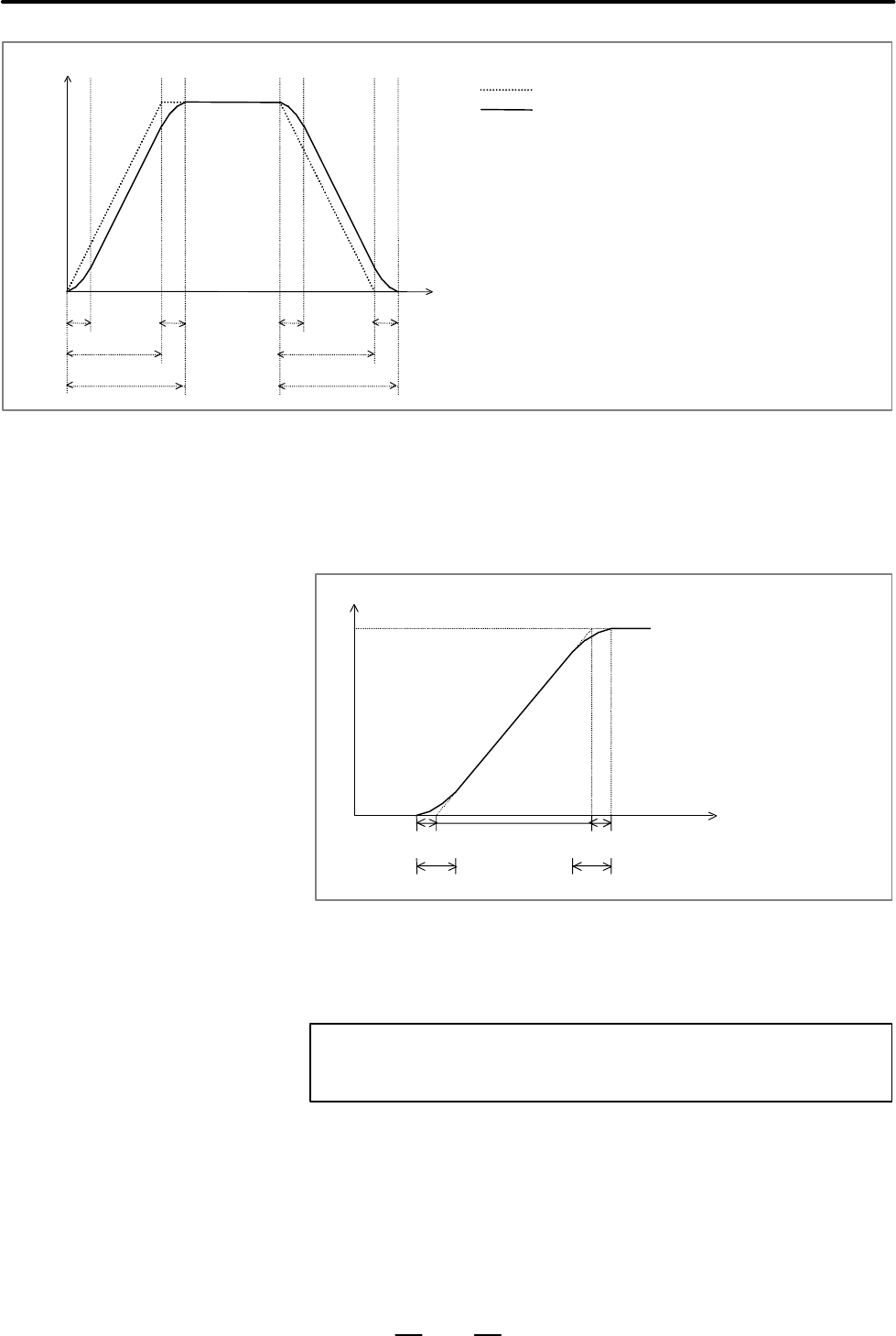

Feedrate

Linear acceleration/deceleration

Bell–shaped acceleration/deceleration

ta: Depends on linear acceleration/deceleration.

tb: Bell–shaped time constant

tc: Bell–shaped acceleration/deceleration time

tc = ta + tb

ta is not constant, but varies with the rapid

traverse rate and rapid traverse time

constant of a specified axis.

tb is determined by an axis.

Time

Let F be a feedrate for movement, let A be acceleration when linear

acceleration/deceleration is assumed, and let T be the time constant of

bell–shaped acceleration/deceleration. Then, time required for

acceleration/deceleration is as follows:

Time required for acceleration/deceleration = F/A (linear type)

= F/A + T (bell–shaped type)

T/2 T/2

F/A

Feedrate

F/A: Time required for accel-

eration when linear ac-

celeration/deceleration is

assumed

T: Time required for a

rounded corner

When non–linear interpolation is used, the tool moves according to the

feedrate set in parameter No. 1420 and the acceleration/deceleration set

in parameter No. 1620. By setting parameter No. 1621, bell–shaped

acceleration/deceleration can be selected.

NOTE

Overlapping between rapid traverse blocks is disabled.
