Series 0i/0i Mate - Model B Connection manual (Function) Page 388

Connection manual (Function)
B–63833EN–1/02
7. FEEDRATE CONTROL/ACCELERATION
AND DECELERATION CONTROL
370

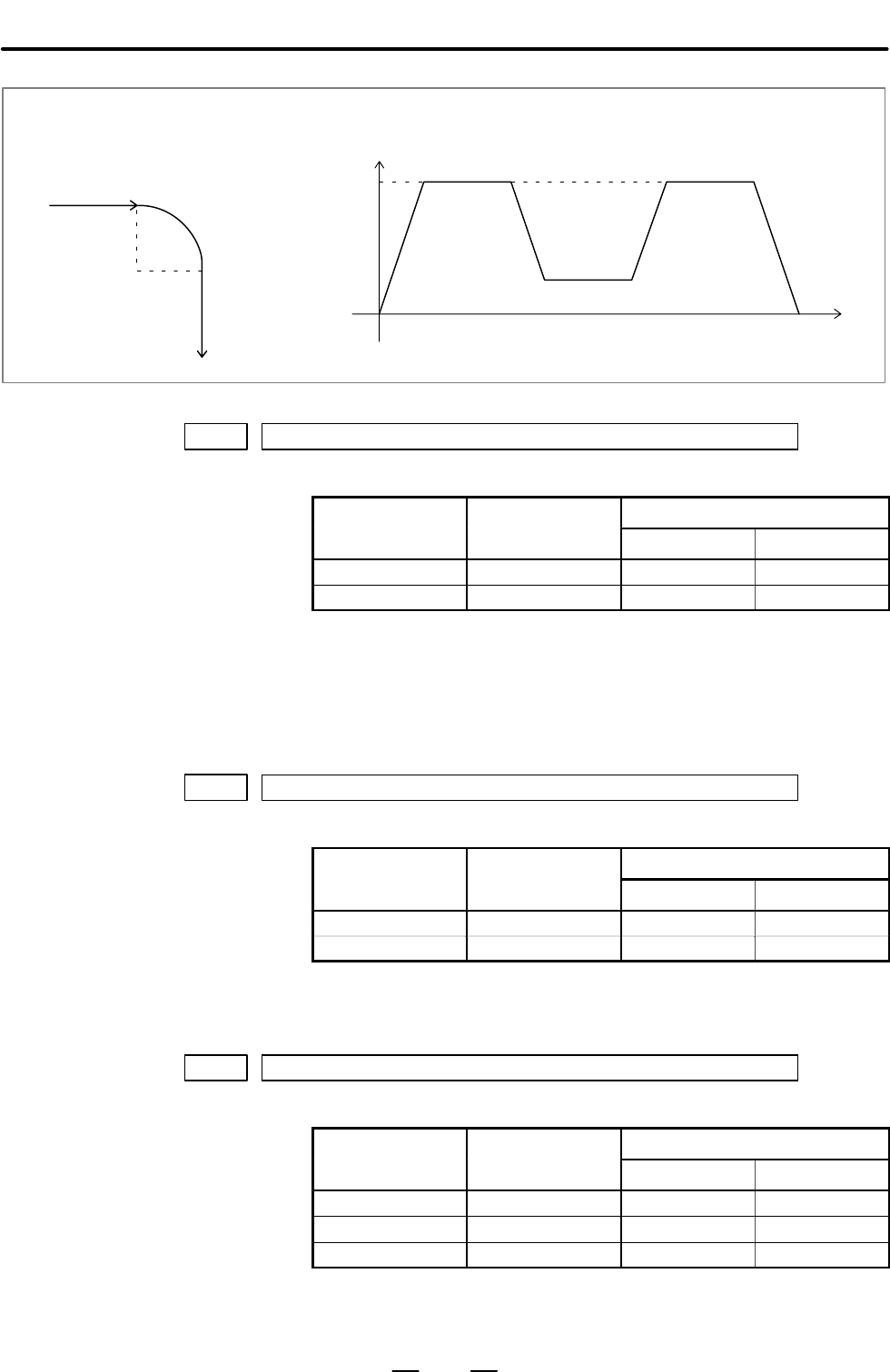

N1
a
b
N2
r
N3
Specified
feedrate
ab
N1
N2 N3
Time
(Example)
1732 Lower limit RVmin for feedrate clamping by arc radius
[Data type] Word
Valid data range
Increment system Unit of data
IS–A, IS–B IS–C
Millimeter machine 1 mm/min 0 to 15000 0 to 12000
Inch machine 0.1 inch/min 0 to 6000 0 to 4800
When the function for clamping the feedrate by arc radius is used, the
upper limit imposed on the feedrate falls with the arc radius. If the upper
limit imposed on the feedrate is less than the lower limit imposed on the
feedrate clamping RVmin, the upper limit imposed on the feedrate is set as
RVmin.
1422
Upper limit imposed on cutting feedrate in AI advanced preview control
[Data type] 2–word
Valid data range
Increment system Unit of data
IS–A, IS–B IS–C
Millimeter machine 1 mm/min 6 to 240000 6 to 100000
Inch machine 0.1 inch/min 6 to 96000 6 to 4800
This parameter is used to set the upper limit on the cutting feedrate in AI
advanced preview control mode.
1432 Maximum cutting feedrate in AI advanced preview control mode (for each axis)
[Data type] 2–word axis
Valid data range
Increment system Unit of data
IS–A, IS–B IS–C
Millimeter machine 1 mm/min 0 to 240000 0 to 100000
Inch machine 0.1 inch/min 0 to 96000 0 to 48000
Rotation axis 1 deg/min 0 to 240000 0 to 100000
This parameter sets the maximum cutting feedrate for each axis in AI
advanced preview control mode.
[Unit of data]
[Valid data range]
D Other parameters
[Unit of data]
[Valid data range]
[Unit of data]
[Valid data range]
