6. INTERPOLATION FUNCTION

B–63833EN–1/02

280

+X (orthogonal axis)

+Y (angular axis)

Actual move coordinate system

q (inclination angle)

Program coordinate system

Move command in the minus direction

X–axis: Compensation in the plus direction

Y–axis: Positioning in the

minus direction

Move command in the minus direction

Set the directions of single direction positioning (parameter No. 5440) for

the angular axis and orthogonal axis so that the directions for the angular

axis and for the orthogonal axis are the same (plus and plus, or minus and

minus).

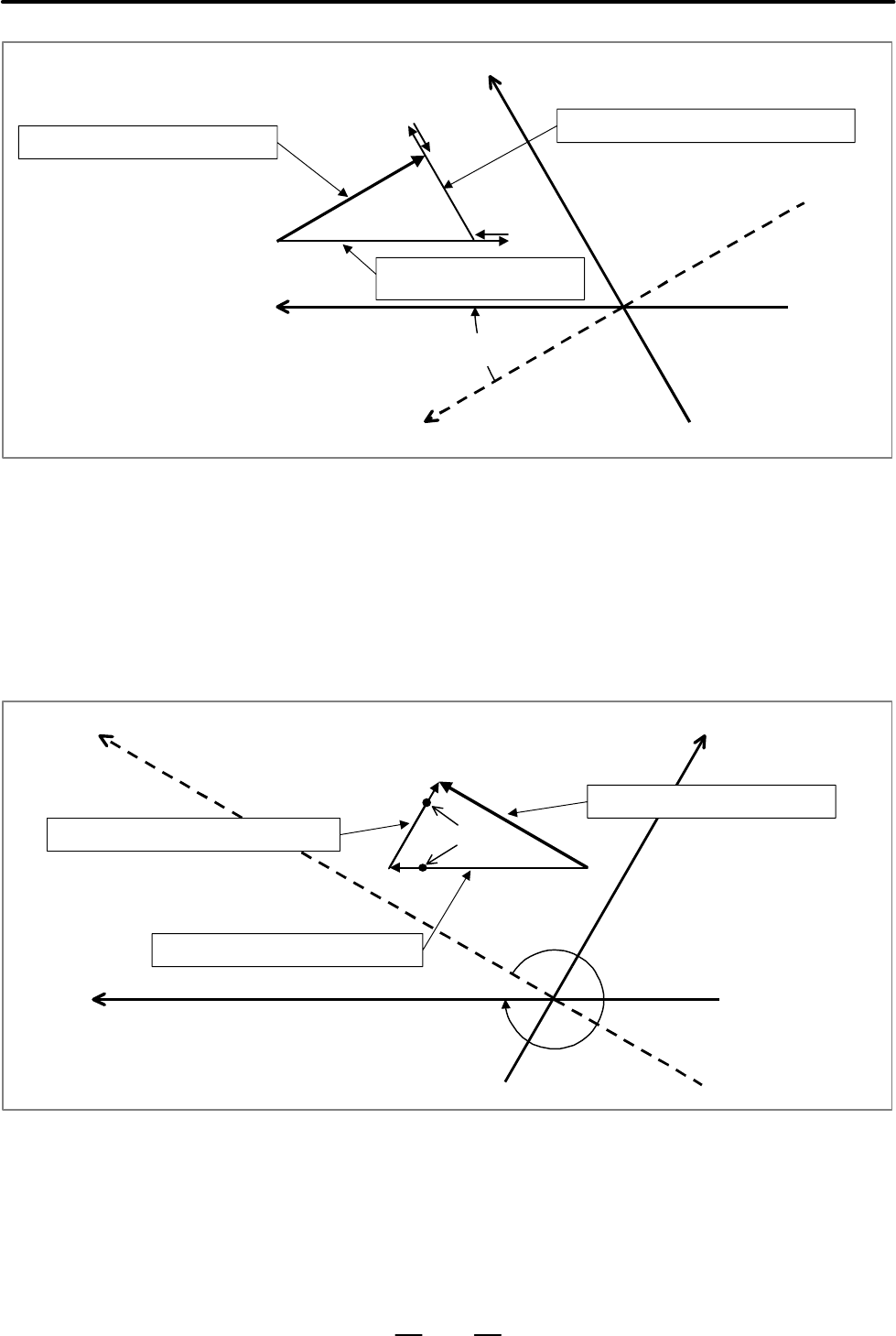

When both of the positioning directions for the X–axis (orthogonal axis)

and for the Y–axis (angular axis) are plus, the operation shown below is

performed.

q (inclination angle)

Program coordinate system

+X (orthogonal axis)

+Y (angular axis)

Actual move coordinate system

X–axis: Compensation in the plus direction

Temporary

stop

Move command in the plus direction

Y–axis: Positioning in the plus direction

Move command in the plus direction

D When the inclination

angle of an angular axis

(parameter No. 8210) is

91° to 179° or 271° to

359°
