3.5.26.1 Setting the maximum number of undo operations.

Procedure

1. Select [Tool]-[Option]. Then click the [Ladder] tab.

2. Move the cursor to [Undo max number], and set the maximum

number of Undo operations. (Range of setting : 0 - 50)

3. Click the <OK> button.

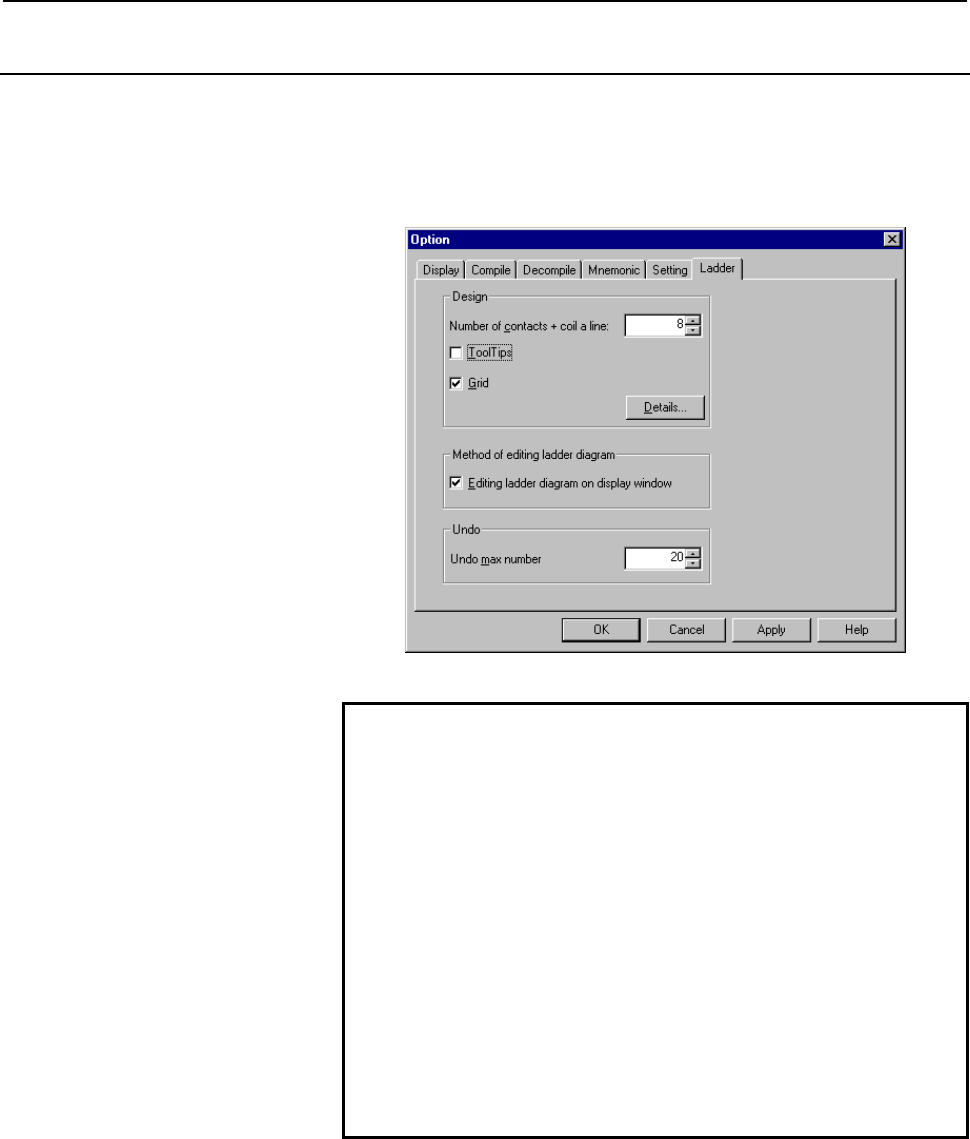

Fig. 3.5.26.1

NOTE

1 This function is effective to the following edit operations.

• Ladder editing in the direct ladder edit screen

(Includes “Change of PMC address by Replace

function”.)

• Addition and deletion of sub-program (P1/P2…) in

program list screen.

2 Undo log is erased by the following operation.

• Changing the “Number of contacts + coil a line”

• Changing the “Method of editing ladder diagram”

• Changing the online mode

• Executing the Decompilation

• Importing the source program

3 There is a case that the operation cannot be canceled

correctly, when the nets which contain the error are

connected.
