B-66234EN/05 6.MNEMONIC EDITING

- 267 -

6.6 MNEMONIC OPTIONS

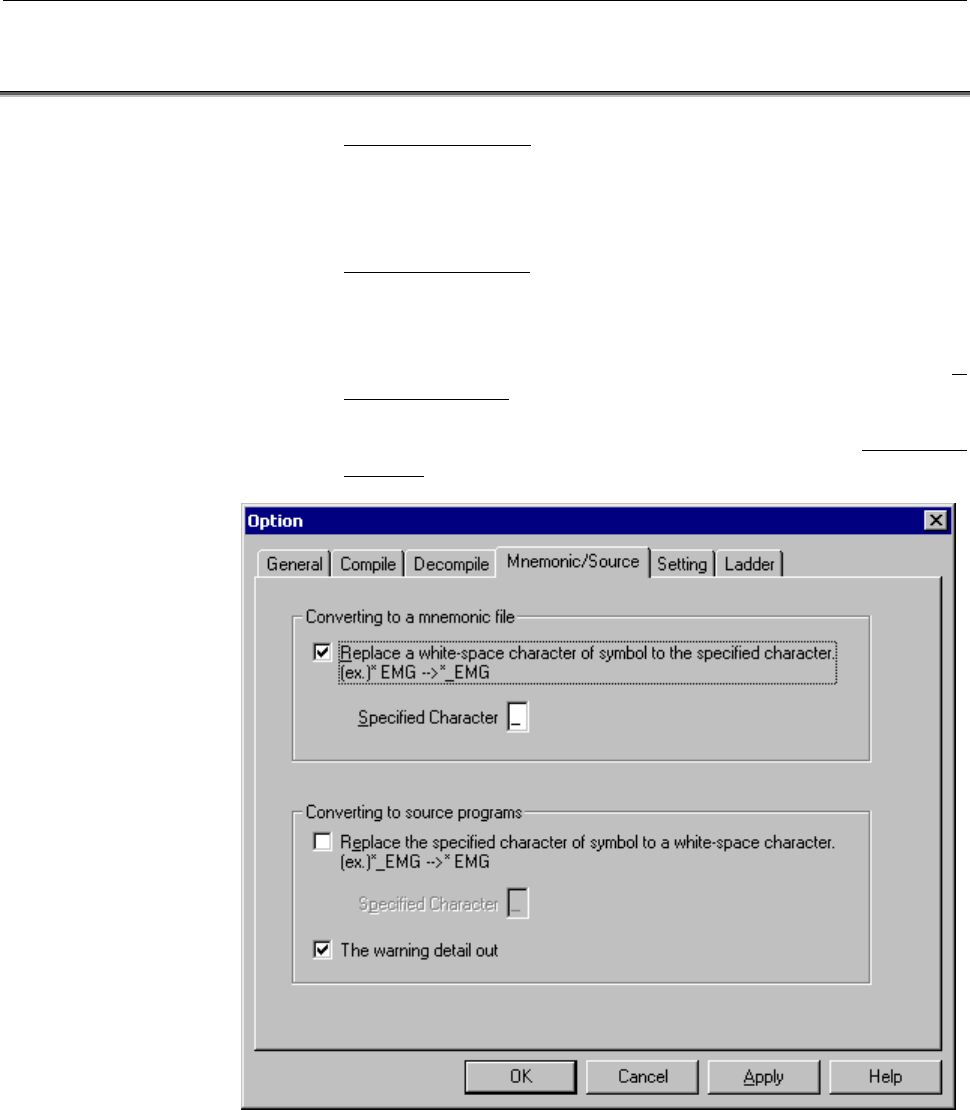

A specified character

is separate in “Conversion into a mnemonic file”

and “Conversion into the source program”. And the replacement of the

white-space character is selectable on the mnemonic option

daialog-box ([Tool] – [Option - Mnemonic/Source]).

A specified character

is:

The white-space character is treated as a separate character in a

mnemonic file. When converting the source program into a mnemonic

file, it is possible to replace the white-space character in the symbol

with another character. The replaceable character is described as “A

specified character”.

When converting a mnemonic file into the source program, it is

possible to replace the white-space character with a specified

character.
