/ 714

B-66234EN/05 5.COMPILATION AND DECOMPILATION

- 225 -

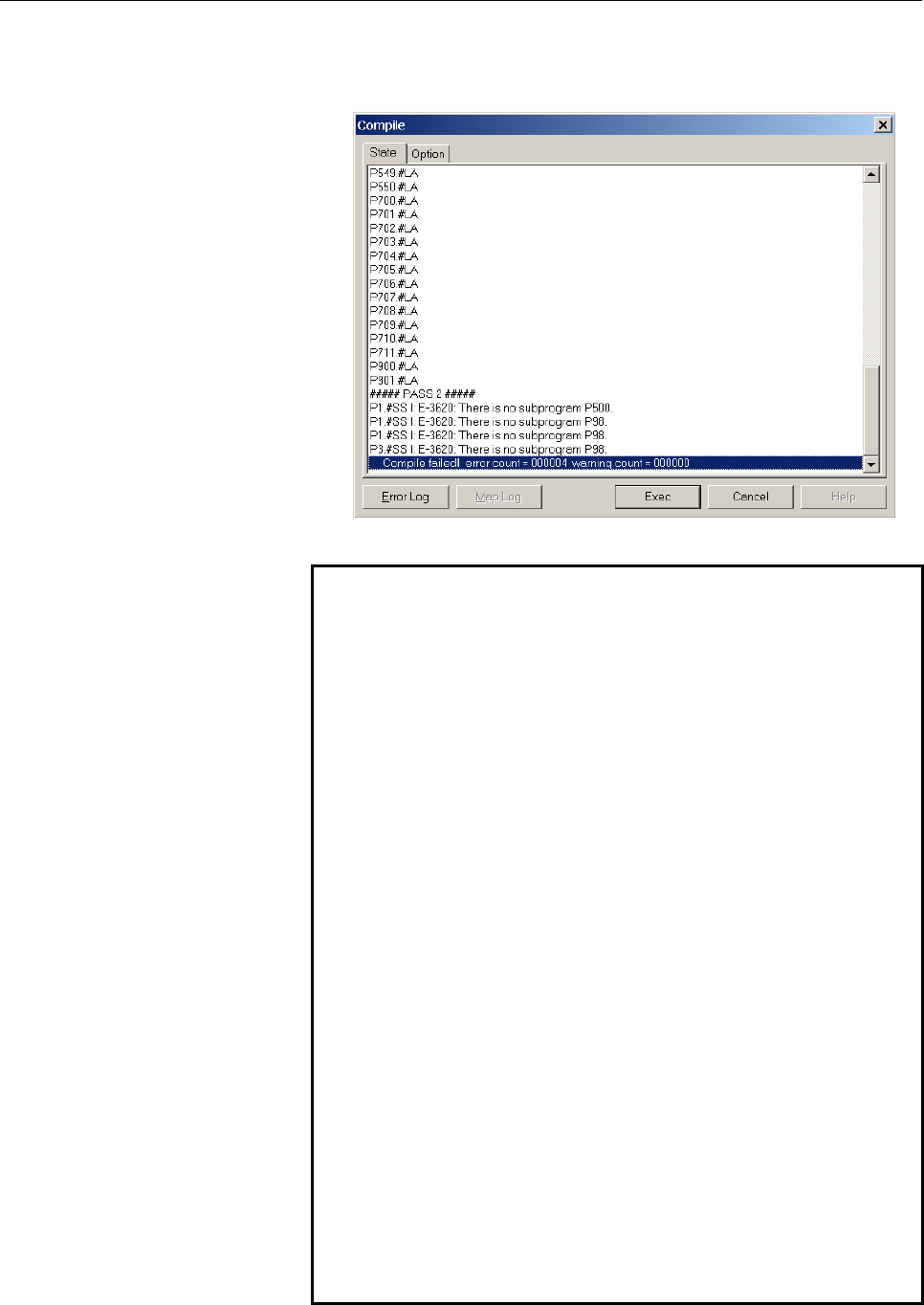

4. While data is being compiled, the progress of the processing

appears on the screen. When completed, the number of errors and

warnings appears.

Fig. 5.1 (f)

NOTE

1 Condense mode

Condense mode has the following advantages.

• Reduced compilation time.

• Reduced transfer time from a personal computer to

the PMC.

• The mode requires little ROM space.

On the other hand, the following restrictions must be

observed:

• When data is edited by an integrated edit function,

and if a ladder or symbol is added, overlapping with

the C language area might occur. Pay careful

attention to this point.

2 Net comment pointer

The net comment contains string information only in a

source program. The compiled object code does not

include the net comment information. Therefore, the

setting to output the "net comment pointer" (position

information of a net comment) as a function NOP to

object code was developed. This position information

enables the net comment to be restored at decompilation

after a ladder is modified by online editing.

3 Symbol comment data

A relay comment, which is a type of symbol comment

data, is not included in a compiled object code. For

details, see Section 3.7.1, " Symbol and Comment Data."

4 PMC-SB7

On PMC-SB7, the "Condense" and "Ignore too long

strings of the symbol" options are enabled

unconditionally.
