FAPT Ladder-III Operators manual Page 243

Operators manual
B-66234EN/05 4.PRINTING SEQUENCE PROGRAMS
- 217 -
Line Point
Specify the line spacing, in points. A value can be
entered directly. It can also be selected by clicking the
up/down arrows. The number of lines and the font size
may be adjusted automatically according to the
specified line spacing.
(The Initially value is 8.)
Ladder Data
Specify the ladder data for which you want to specify a
font.
Font Face
Specify the name of the font you want to use for an
item specified in Ladder Data.
(The Initially value is <Courier New>.)
Font Size
Specify the font size you want to use for an item
specified in Ladder Data. The number of lines,
character spacing, and line spacing may be adjusted
automatically according to the specified font size.
(The Initially value is 8.)
<Reset> button
This button clears the settings for all the items on the
[Line Count (Ladder)] tab to the respective Initially
values.

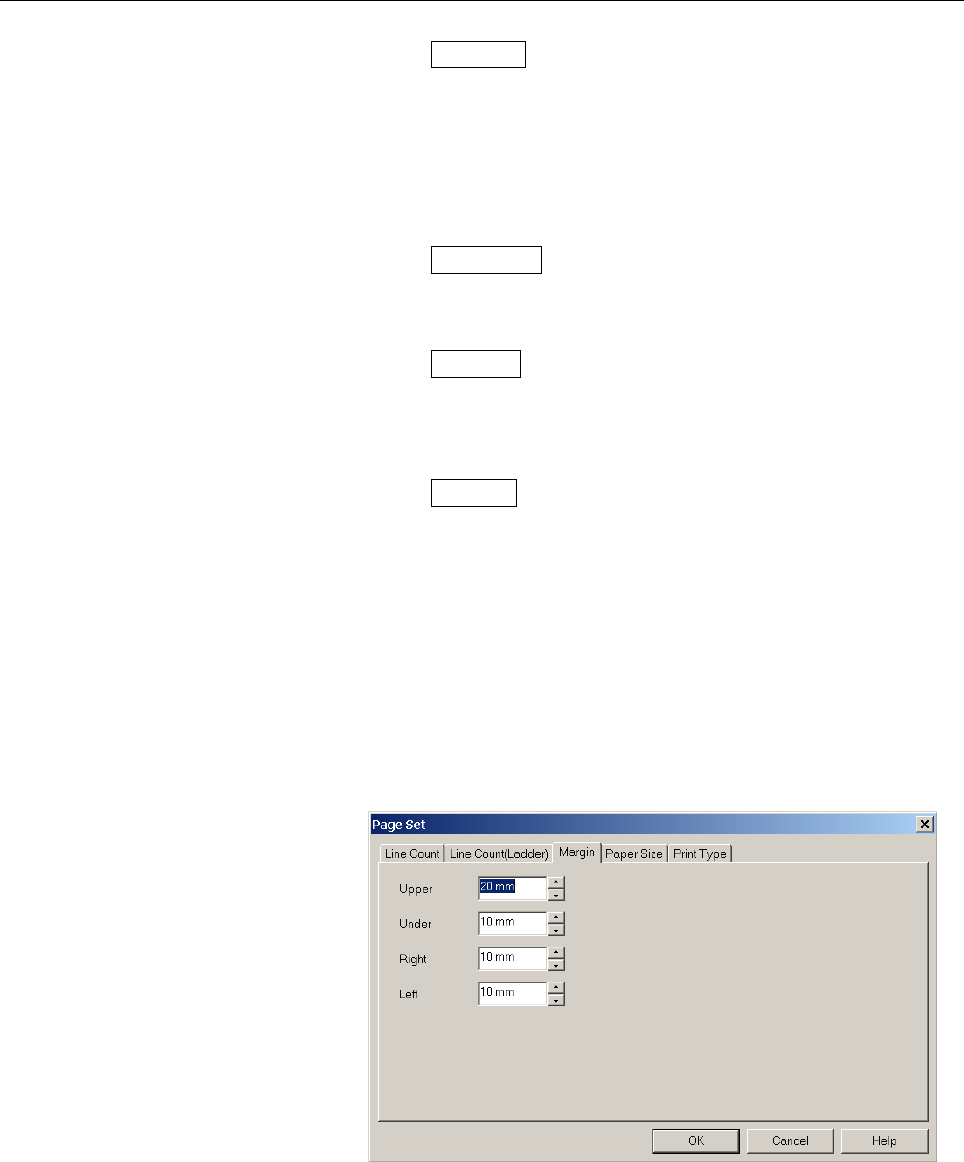

2-3 [Margin] tab
Fig. 4.12.2 (c)
Previous page
Next page
