FAPT Ladder-III Operators manual Page 703

Operators manual

Page of 714

/ 714

b. Start of online function

1. Click

<Connect/Disconnect with the PMC> button of the toolbar.

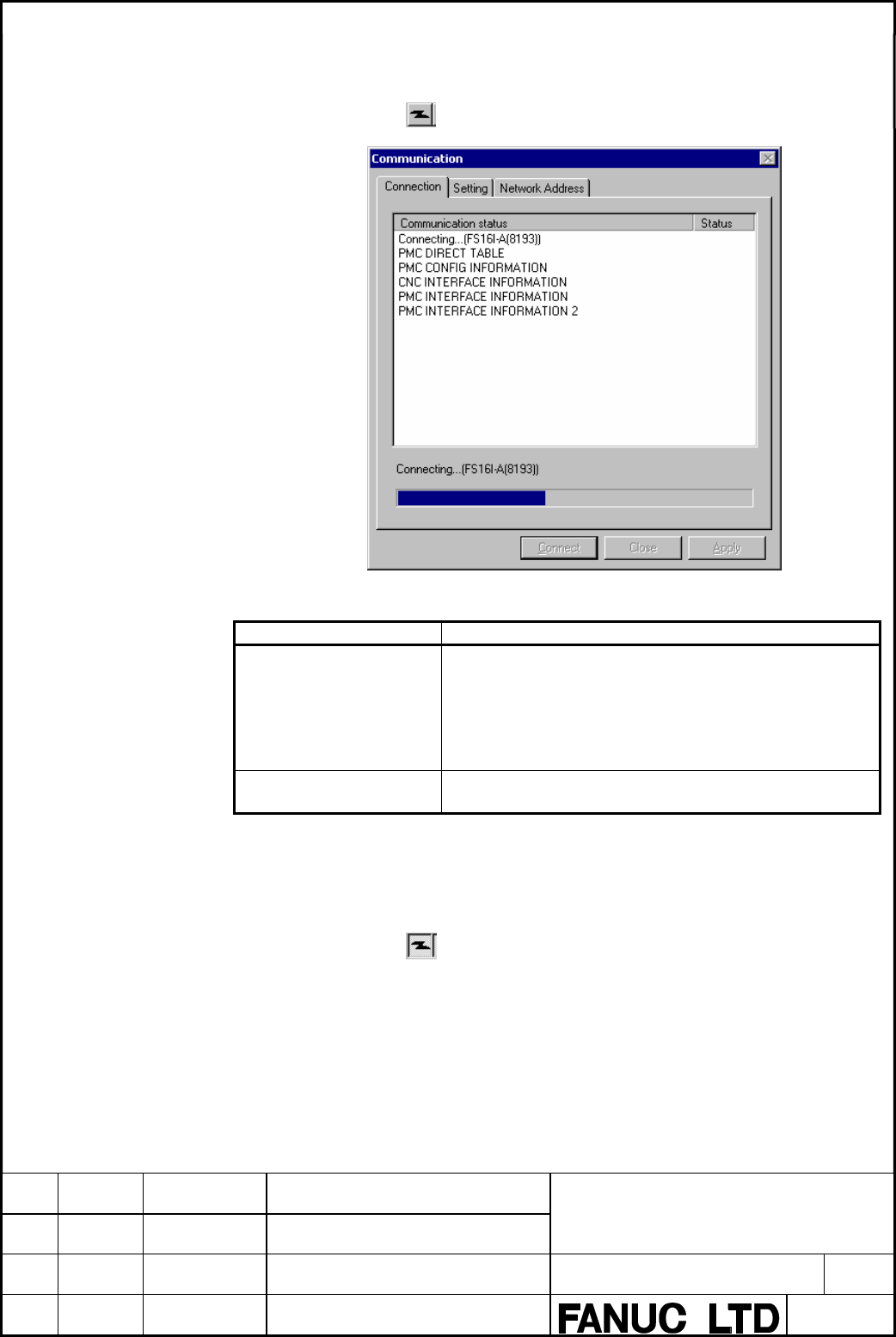

Fig. 7.2.1(a)

Result Explanation

When the connection was

normally completed

- The Communication dialog is closed automatically.

- The programmer mode does not change when connecting

with PMC after the sequence program was opened.

- When connecting with PMC after the sequence program was

closed, online program is loaded from it. Then, mode

changes to the online.

When the error occurs The dialog of the communication does not close. The error is

displayed.

c. End of online function

1. Click

<Connect/Disconnect with the PMC> button of the toolbar.

The communication is disconnected.

FANUC LADDER-III

SUPPLEMENTARY OPERATOR'S MANUAL

01 05/09/26 First issue B-66234EN/05-4

EDIT

DATE

DESIG.

DESCRIPTION

7/18

TITLE

DRAW.NO.

SHEET

CUST.
