FAPT Ladder-III Operators manual Page 673

Operators manual
FANUC LADDER-III
SUPPLEMENTARY OPERATOR’S MANUAL
01 05/05/30 First issue B-66234EN/05-3
EDIT
DATE
DESIG.
DESCRIPTION
33/55
TITLE
DRAW.NO.
SHEET
CUST.
NOTE(Only multi-path PMC)

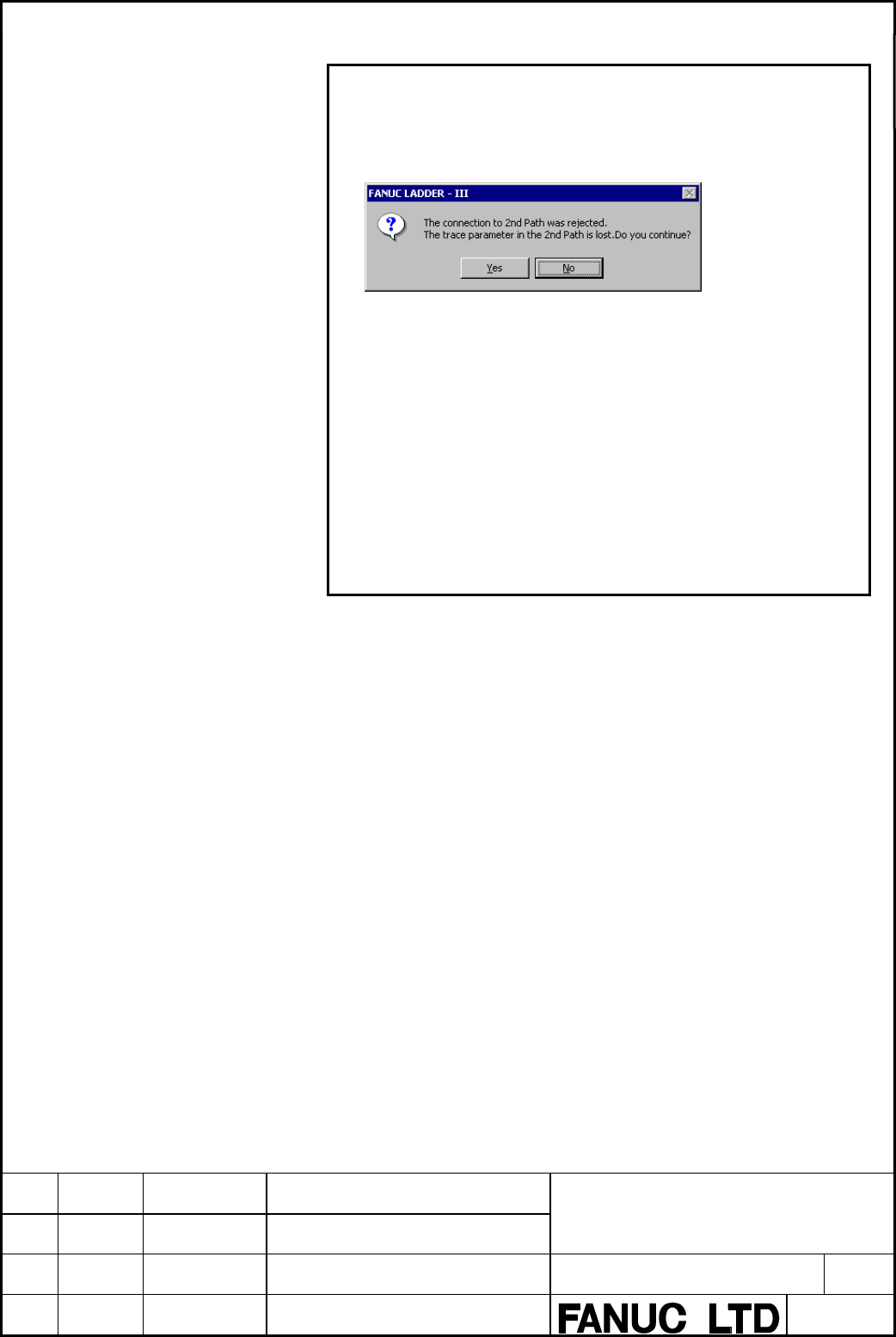

If the data table control screen or the ladder edit screen is
opened on the PMC side when starting trace, the following
message box will be displayed.
Yes: Trace is started except for the sampling of xx path.
(At this time, the trace parameter in the xx path disappears.)
No:Trace window is closed.
If you want to trace all path, please operate as follows.
(1) Please select "No" by the above message box.
(2) Please close the data table control screen or the ladder edit
screen opened on the PMC side.
(3) Please disconnect the communication once, and reestablish the
communication.
(4) Please select the trace from the diagnosis menu again.
