11.EXTENDED SYMBOL/COMMENT FUNCTION B-66234EN/05

- 426 -

11.14 K ADDRESS (KEEP RELAY)

11.14.1 Toolbar

(1) (2) (3) (4)

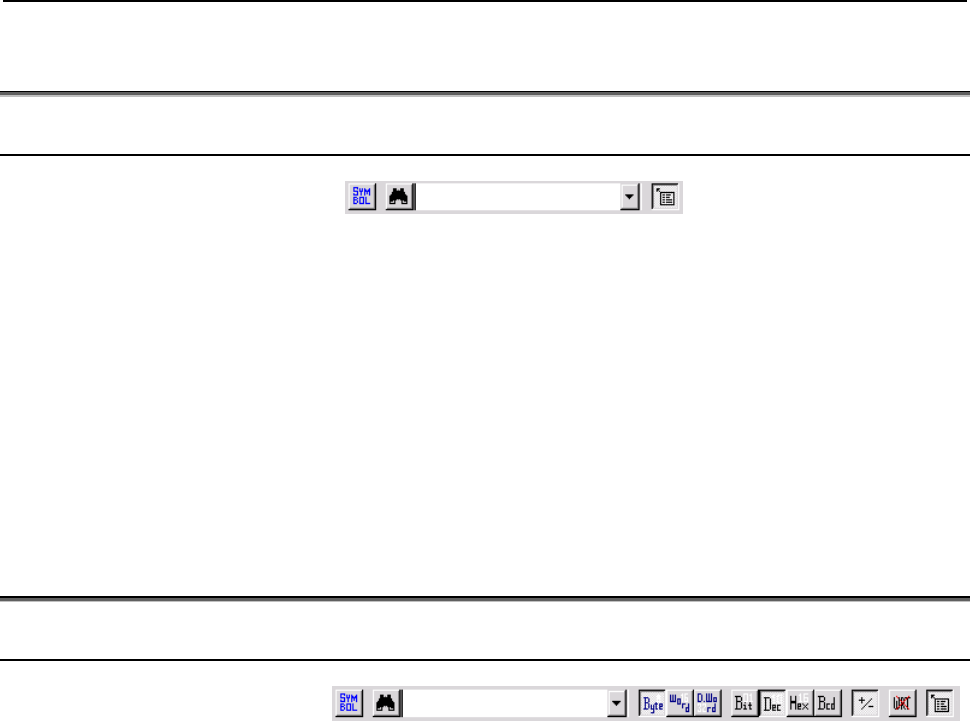

Fig. 11.14.1

<1> Symbol indication (off ⇔ on)

<2> Search

<3> Combo box for inputting the character string for which a search

is to be made.

To search a local symbol “ABC” in P1, Input ”P1.ABC”.

<4> ToolTips indication (off ⇔ on)

When the cursor is on an address, detailed information of the

address is shown if ToolTips indication is turned on.

11.15 D ADDRESS (DATA TABLE)

11.15.1 Toolbar

(1) (2) (3) (4)(5) (6) (7) (8) (9)(10)(11)(12)(13)

Fig. 11.15.1

<1> Symbol indication (off ⇔ on)

<2> Search

<3> Combo box for inputting the character string for which a search

is to be made.

To search a local symbol “ABC” in P1, Input ”P1.ABC”.

<4> Display format: Byte

<5> Display format: Word

<6> Display format: Double word

<7> Display type: Binary

<8> Display type: Decimal

<9> Display type: Hexadecimal

<10> Display type: BCD

<11> Sign indication (off ⇔ on)

(Valid only when decimal notation is set as the display type.)

<12> Write protection

<13> ToolTips indication (off ⇔ on)

When the cursor is on an address, detailed information of the

address is shown if ToolTips indication is turned on.
