B-66234EN/05 5.COMPILATION AND DECOMPILATION

- 229 -

Details of the options are listed below.

Table 5.2 (b)

Option Explanation

Symbol/Comment is decompiled

If not checked, no symbol/comment data is decompiled. The

definition of the source is directly used.

Merging the Symbol/ Comment has

given priority to the S

ource data

The symbols of the source program and object code are

merged only for a symbol and comment. If the same symbol

and comment exist, the definition of the source program is

used.

Merging the Symbol/ Comment has

given priority to the M

emory card data

The symbols of the source program and object code are

merged only for a symbol and comment. If the same symbol

and comment exist, the definition of the object code is used.

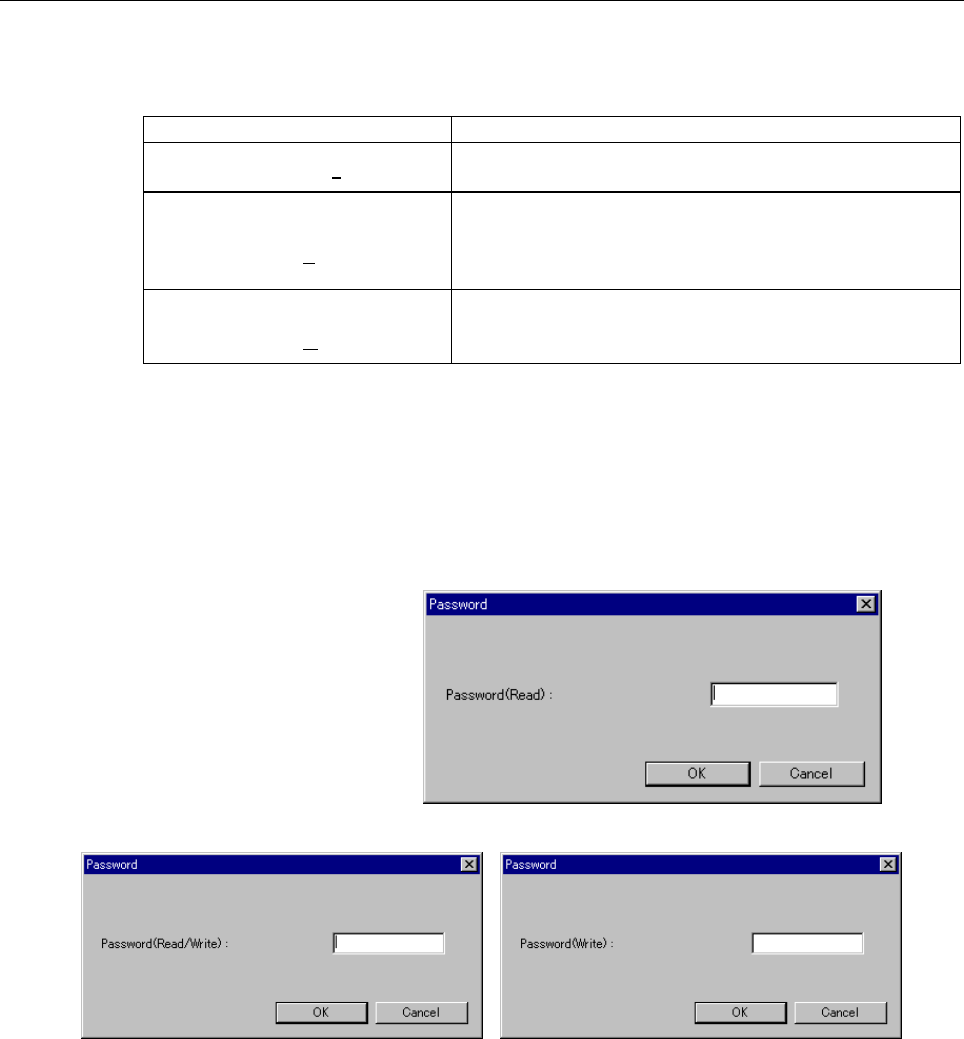

3. To start decompilation, click the <Exec> button. When object

code with a password is to be decompiled, the

[Password(Decompile)] dialog appears. Enter a password to

permit display or to permit display and editing, and then click the

<OK> button.

(For details on passwords, see "Protecting Ladder Programs by

Passwords.")

Fig. 5.2 (e)

Fig. 5.2 (f) Fig. 5.2 (g)
