B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 181 -

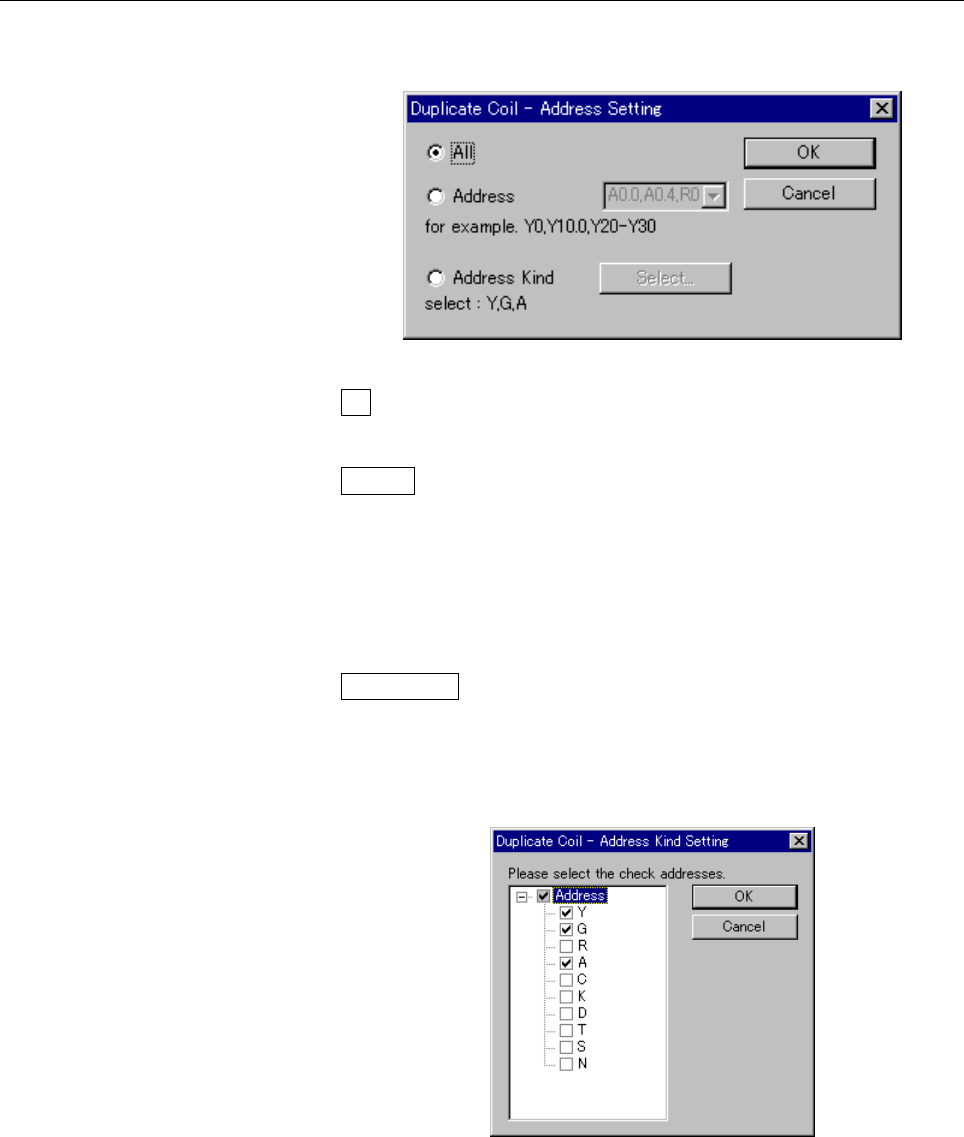

2. Select the check address on [Duplicate Coil – Address Setting]

dialog.

Fig. 3.17.1 (a)

All

All the output addresses are checked.

Address

An arbitrary output address is checked.

Specification by the bit address and specification in the range to

have used byte address are possible.

‘,’(commma) is used to specify two or more conditions.

Example: A0.0,A0.4,R0-R100,Y0-Y15

Address kind

All the range of the selected kind of address are checked.

Please select the kind of address on [Duplicate Coil - Address

Kind Setting] dialog

(Press <Select> button to display [Duplicate Coil - Address Kind

Setting] dialog.)

Fig. 3.17.1 (b)
