FAPT Ladder-III Operators manual Page 250

Operators manual
5.COMPILATION AND DECOMPILATION B-66234EN/05
- 224 -
The details of the options are listed below.
Table 5.1(b)
Option Explanation
Output
Symbol/Comment
A symbol (16 bytes or less) that can be displayed
on display unit of CNC, and a comment are output
to an object code.
Output First Comment First comment is output to an object code.
Output Second
Comment
Second comment is output to an object code.
Output Netcomment
pointers
A net comment pointer is output to an object code.
Multiple used check of
the Function parameter
number
Functions TMR, TMRB, CTR, DIFU, and DIFD are
checked if they are duplicated. If any, a warning is
displayed.
Setting of Password
A password is added to an object code. Enter a
password at the start of execution.

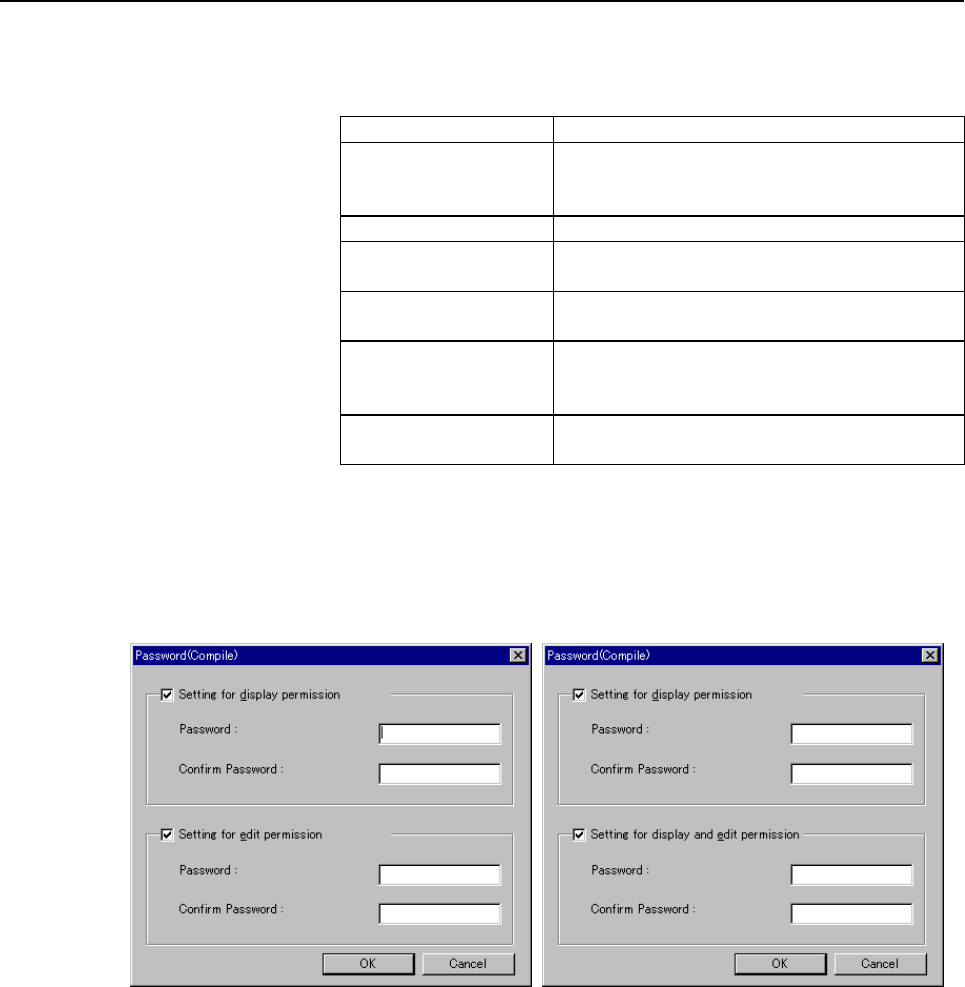

3. To start compilation, click the <Exec> button. When [Setting of
Password] in the compile option is checked, the
[Password(Compile)] dialog appears. Enter a password, then
click the <OK> button.
(For details of passwords, see Section 5.4, "Protecting Ladder
Programs by Passwords.")
Fig. 5.1 (d) Fig. 5.1 (e)
