9.DIAGNOSIS B-66234EN/05

- 360 -

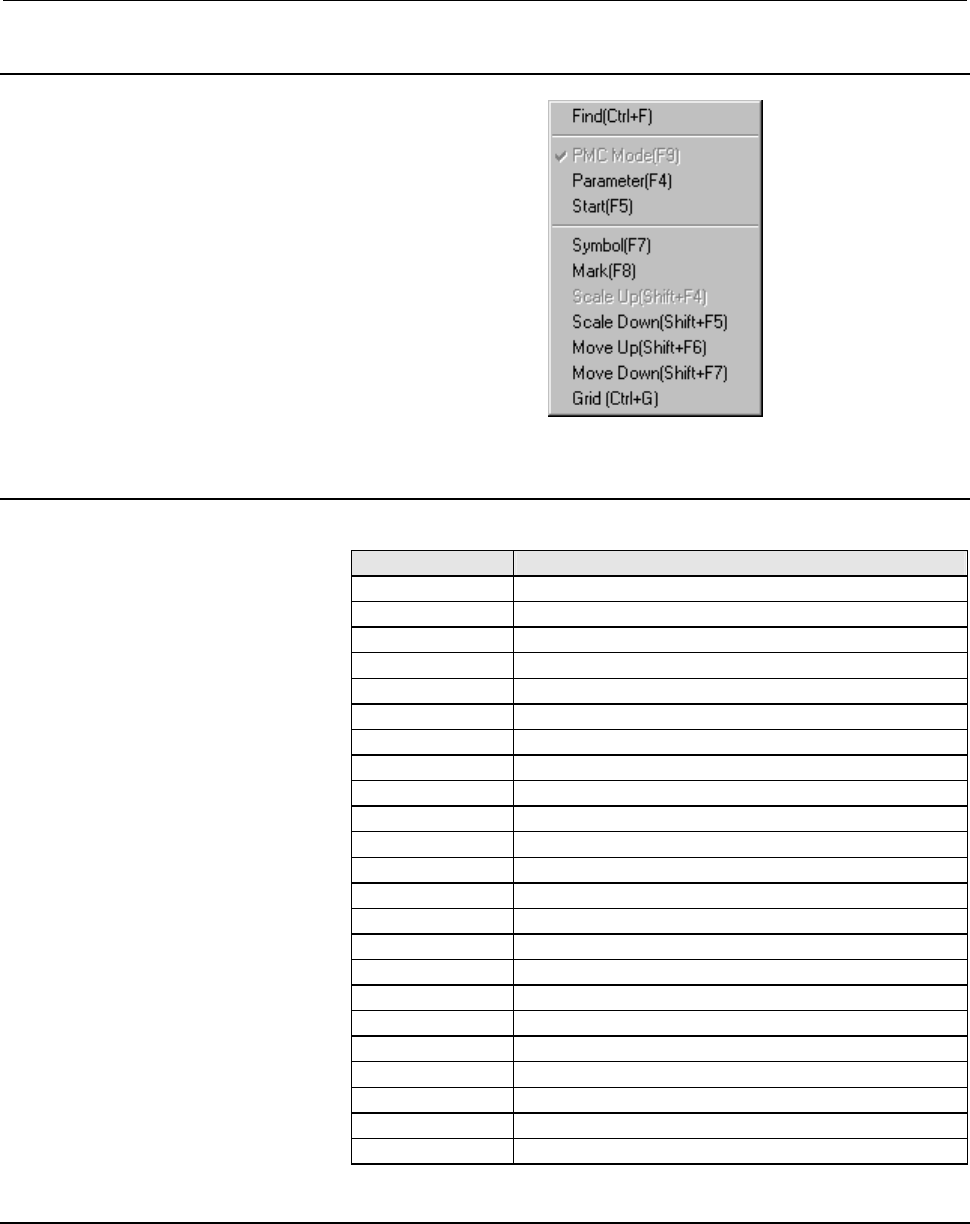

9.10.7 Context Menu

Fig. 9.10.7

9.10.8 Shortcut Keys

Table 9.10.8

Shortcut key Function

[F1] Help

[F3] Searches for the time or frame.

[F4] Displays the [Parameter] screen.

[F5] Starts or stops tracing.

[F7] Displays symbols.

[F8] Marking

[Shift]+[F4] Zoom-in

[Shift]+[F5] Zoom-out

[Shift]+[F6] Moves the signal address up.

[Shift]+[F7] Moves the signal address down.

[Ctrl]+[Home] Moves to the beginning of the trace result.

[Ctrl]+[End] Moves to the end of the trace result.

PageUp Scrolls the signal address display up.

PageDown Scrolls the signal address display down.

Ctrl + PageUp Displays the trace result on the previous page.

Ctrl + PageDown Displays the trace result on the next page.

Ctrl + G Displays or does not display grid lines.

[↑] Moves the address cursor one line up.

[↓] Moves the address cursor one line down.

[→] Moves the current position cursor right.

[←] Moves the current position cursor left.

[Home] Moves the address cursor to the start address.

[End] Moves the address cursor to the end address.

9.10.9 Automatic Sampling Function at Power-on

By setting a PMC parameter, tracing can automatically be started at

power-on. This setting can be made on the [Set Up] screen for PMC

parameters.

Trace function start = 0 (0: Manual 1: Automatic)
