3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 34 -

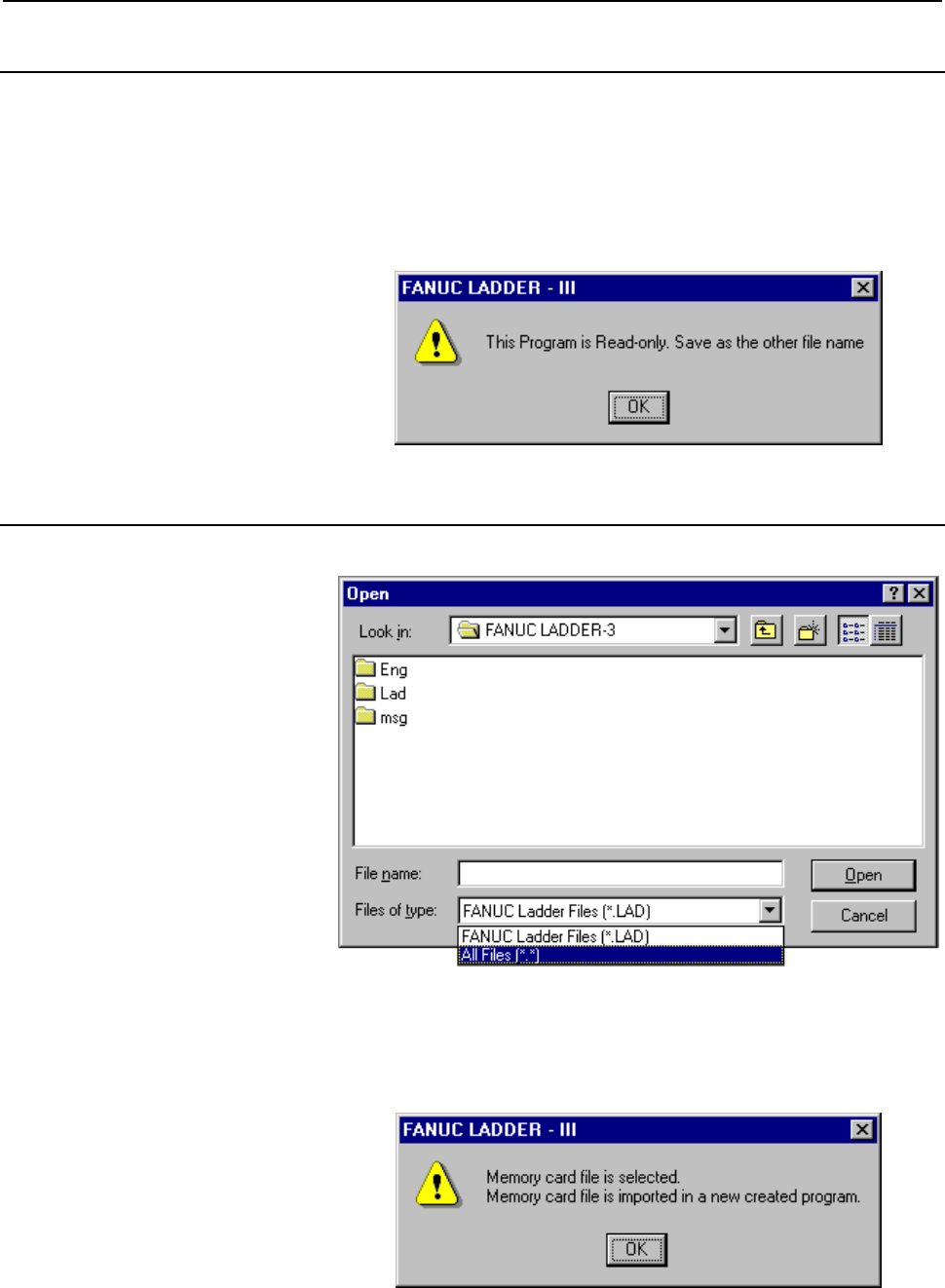

3.3.3 Opening Programs with the Read-only Attribute

When a program with the read-only attribute is opened, a character

string (for read-only indication) is added after the file name in the

status bar. Such a file cannot be overwritten, but can be saved only by

assigning a new name.

If an attempt is made to save such a file by assigning the same name,

the following error message appears:

Fig. 3.3.3

3.3.4 Program Importing Function from Memory Card Files

1 Select [File] - [Open Program]. Then the [Open] dialog appears.

Fig. 3.3.4(a)

2 Select "All files" by "File of type" list-box.

3 Enter the name of the existing memory card file you want to

open.

4 Following message appears informing a new program is creating.

Fig. 3.3.4(b)
