3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 172 -

3.15 EXPORTING PROGRAMS

This section describes how to export (copy in overwrite mode) data

files, ladder diagrams, and subprograms from the currently open

sequence program to another LAD program. It also explains how to

export (convert and copy in overwrite mode) the currently open

sequence program memory card format file to files on a memory card,

in ROM, and/or Handy file format.

3.15.1 Procedure

1. Select [File] - [Open Program] to open the program from which

you want to perform export.

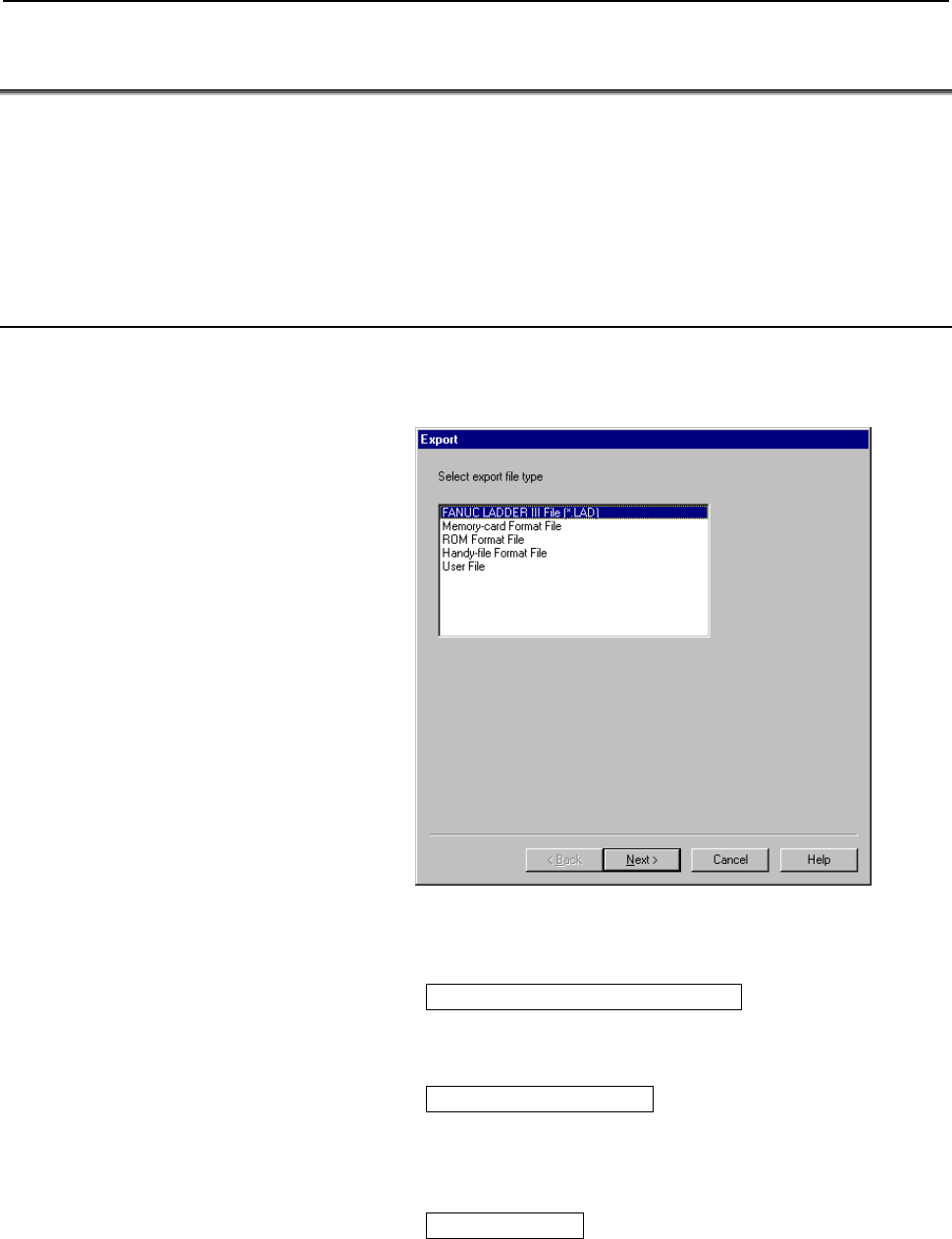

2. Select [File] - [Export]. The following dialog appears.

Fig. 3.15.1 (a)

2-1 Select the types of files you want to export.

FANUC LADDER-III File (*.LAD)

A data file is exported to a sequence program (LAD

file) for the same PMC.

Memory-card Format File

A memory card file (MCARD) is exported from the

currently open sequence program to a file in memory

card format.

ROM Format File

A memory card file (MCARD) is exported from the

currently open sequence program to a file in ROM

format.
