FAPT Ladder-III Operators manual Page 597

Operators manual
FANUC LADDER-III
SUPPLEMENTARY OPERATOR’S MANUAL
01 05/01/14 First issue B-66234EN/05-1
EDIT
DATE
DESIG.
DESCRIPTION
65/69
TITLE
DRAW.NO.
SHEET
CUST.
7.
Addition of control data for extra relay (E)
Extra relay (E) can be treated with the control data as well as data table.
9.3.7 Extra Relay (E)
Extra relay (E) can be treated with the control data by setting of Keep Relay
as well as the data table.
Moreover, it enables to output the contents of extra relay (E) according to the
control data by setting of Keep Relay.
Supported PMC models
Supported
Series 30i/31i/32i-A PMC
Procedure

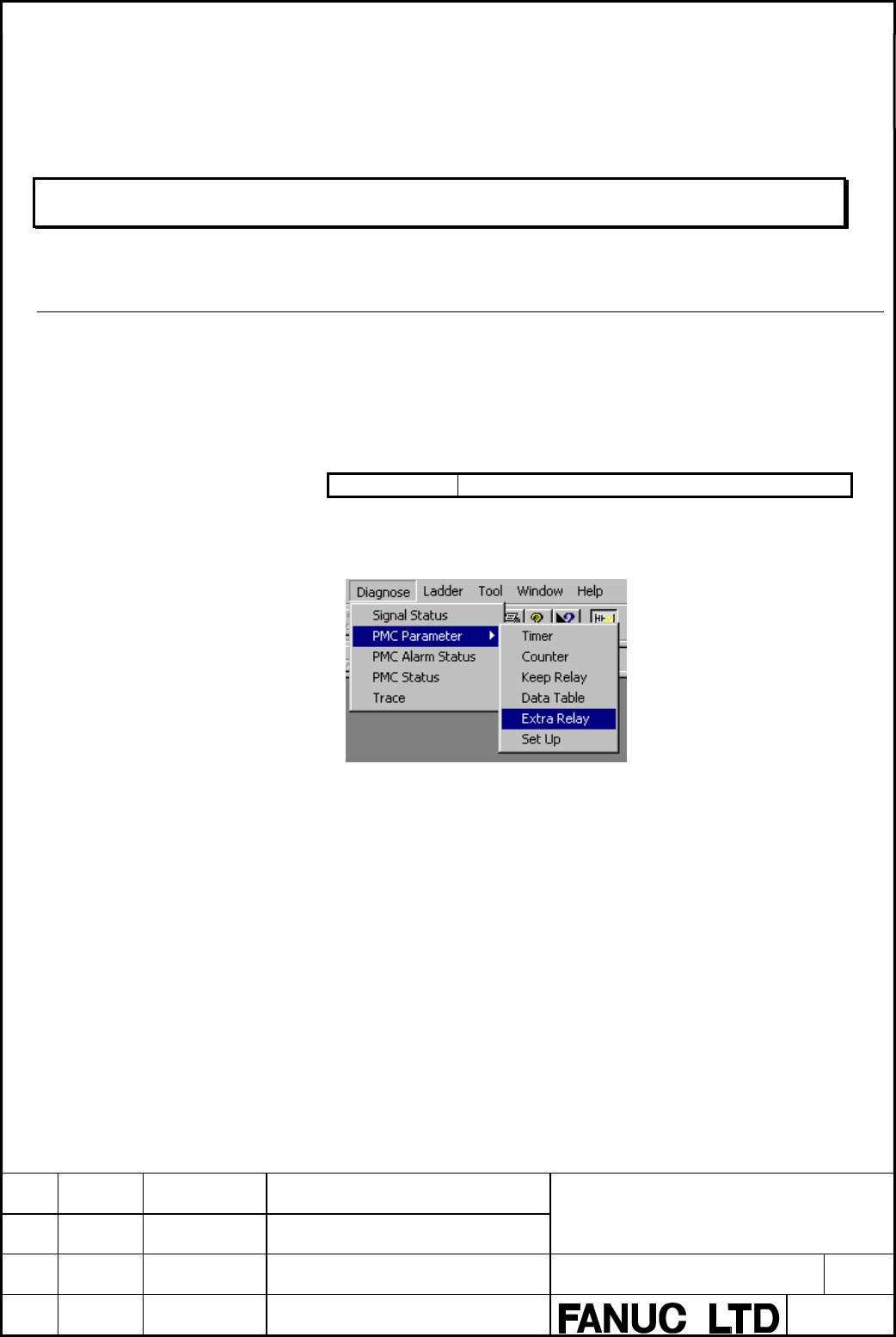

1. Select [Diagnose] – [PMC parametr] – [Extra Relay]
Insert after 9.3.6 Setting PMC Setting parameters
The following condition is required to display extra relay
menu.
1) PMC type supporting extra relay.
2) FANUC LADDER-III is connected with PMC.
3) The setting of extra relay screen display. (K909.5=1)
（effective in PMC1/PMC2/PMC3.）
