2.2.3 Edit Toolbar

The edit tool bar contains a set of buttons used for editing ladder

diagrams. You can input contacts and coils by using the edit tool bar.

See Section 3.5, "EDITING LADDER DIAGRAMS" for details.

2.2.4 Soft Keys

To perform operations with the currently selected child window, you

can select the displayed soft keys either by using the mouse or by

pressing keys. You can change the display size of soft keys using

[Softkey] in the [View] menu.

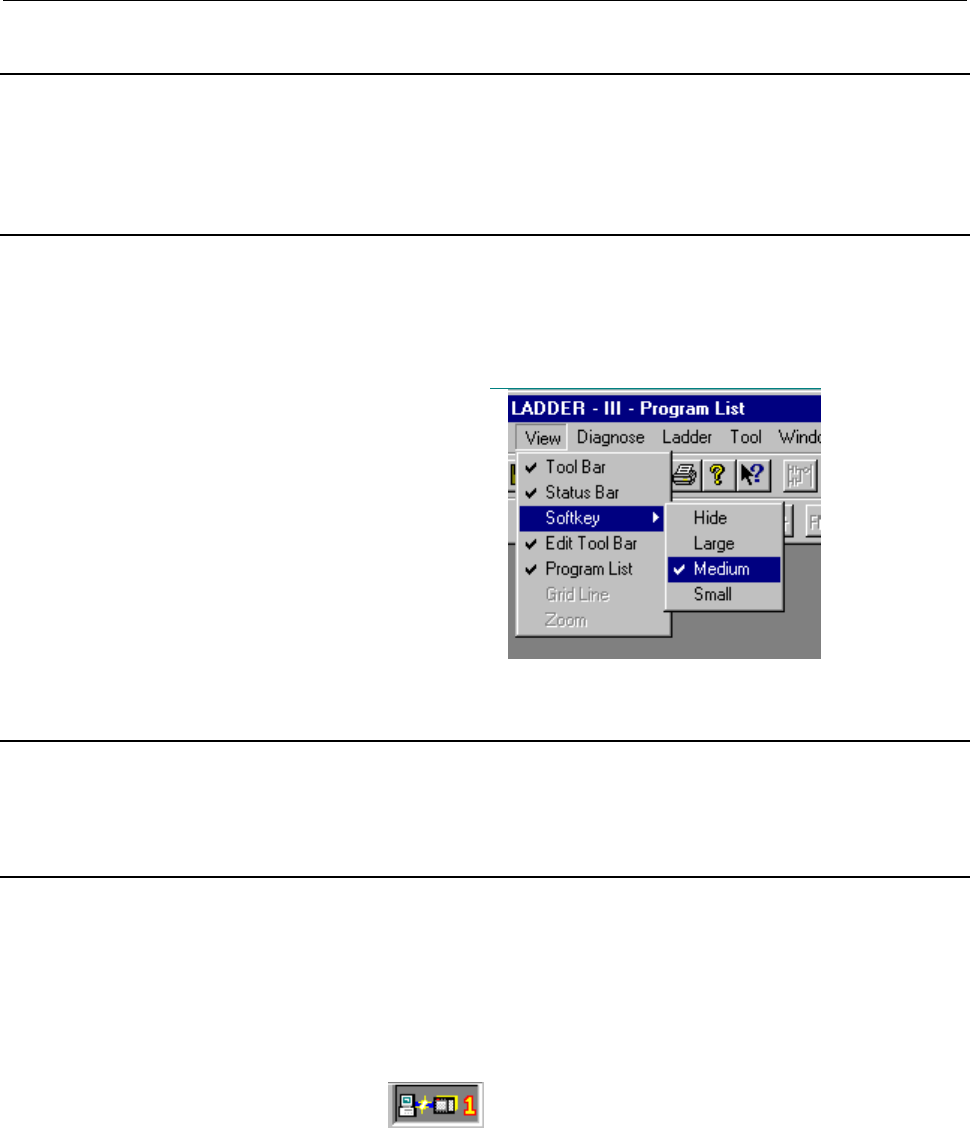

Fig. 2.2.4

2.2.5 Status Bar

The status bar provides information such as a sequence program name

and PMC model name.

2.2.6 Status Monitor

The target of connection (Loader or path number) and the state of the

communication with PMC are displayed on the top-right side of the

main window.

Non-display/display of Status monitor can be switched by [status

monitor] in [View] menu.

• When communicating to the first PMC
