9.DIAGNOSIS B-66234EN/05

- 352 -

9.10 SIGNAL TRACE FUNCTION

For the PMC-SB7 and 30i/31i/32i-A PMC, the screen specifications

of the signal trace function and signal analysis function of the

PMC-SA5/SB5/SB6 are integrated to improve operability and

functionality.

9.10.1 Procedure

1. Select [Diagnose] - [Trace].

The [Signal Trace] screen appears.

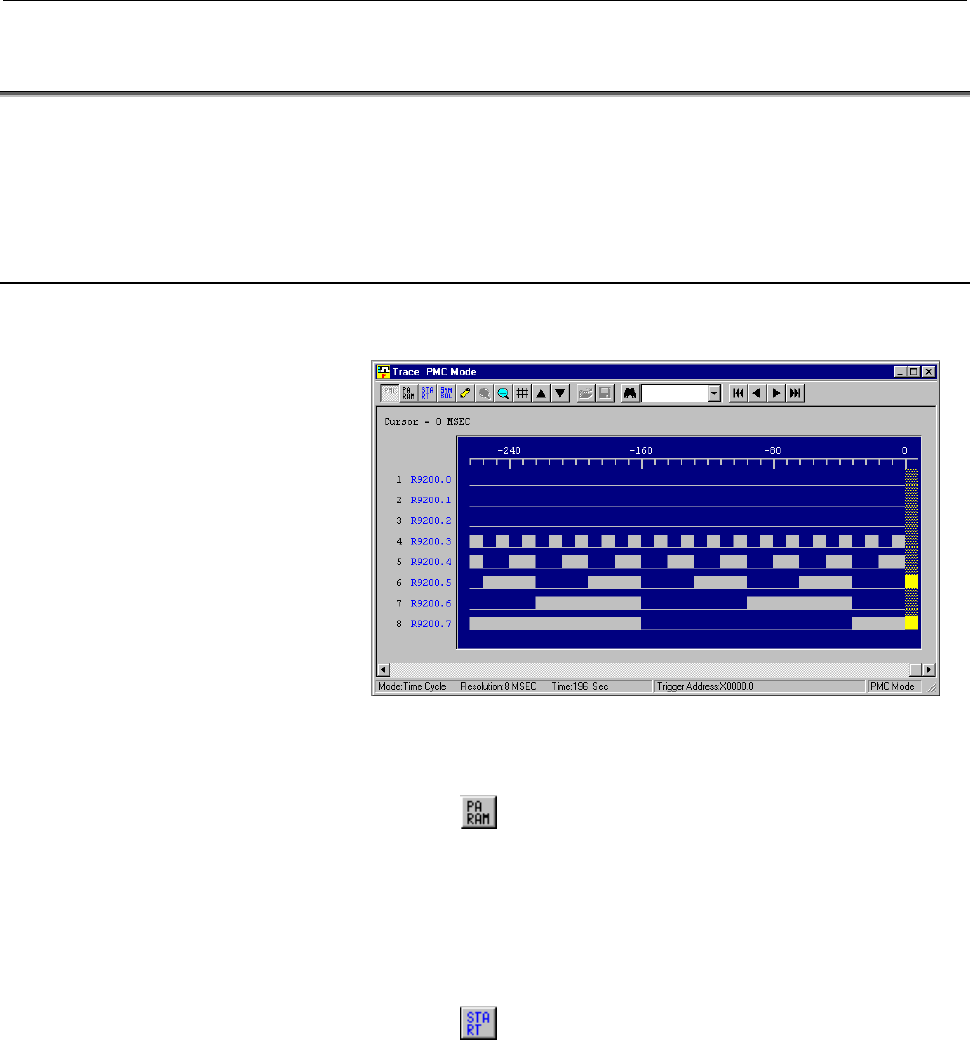

Fig. 9.10.1

2. Click the <Parameter> button.

The [Trace Parameter Setting] screen appears.

<Parameter> button

3. On the [Trace Parameter Setting] screen, set data.

See Subsection 9.10.4, "Setting Trace Parameters," for details.

4. Click the <Start> button. The button enters the down state, and

signal tracing starts.

<Start> button

5. To terminate tracing, click the <Start> button again. The button

enters the up state, and signal tracing terminates.
