3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 118 -

3.6 EDITING STEP SEQUENCES

This section describes how to edit step sequence programs.

NOTE

Step sequence programs can be displayed and

edited only when the current programmer mode

(offline/online) is offline. To change the

programmer mode to offline, select [Ladder] -

[Online/Offline].

How to display the step sequence edit screen

Procedure

1. Select [View] - [Program List]. The [Program List] screen

appears. (Usually, this screen appears automatically when a LAD

program is created or opened.)

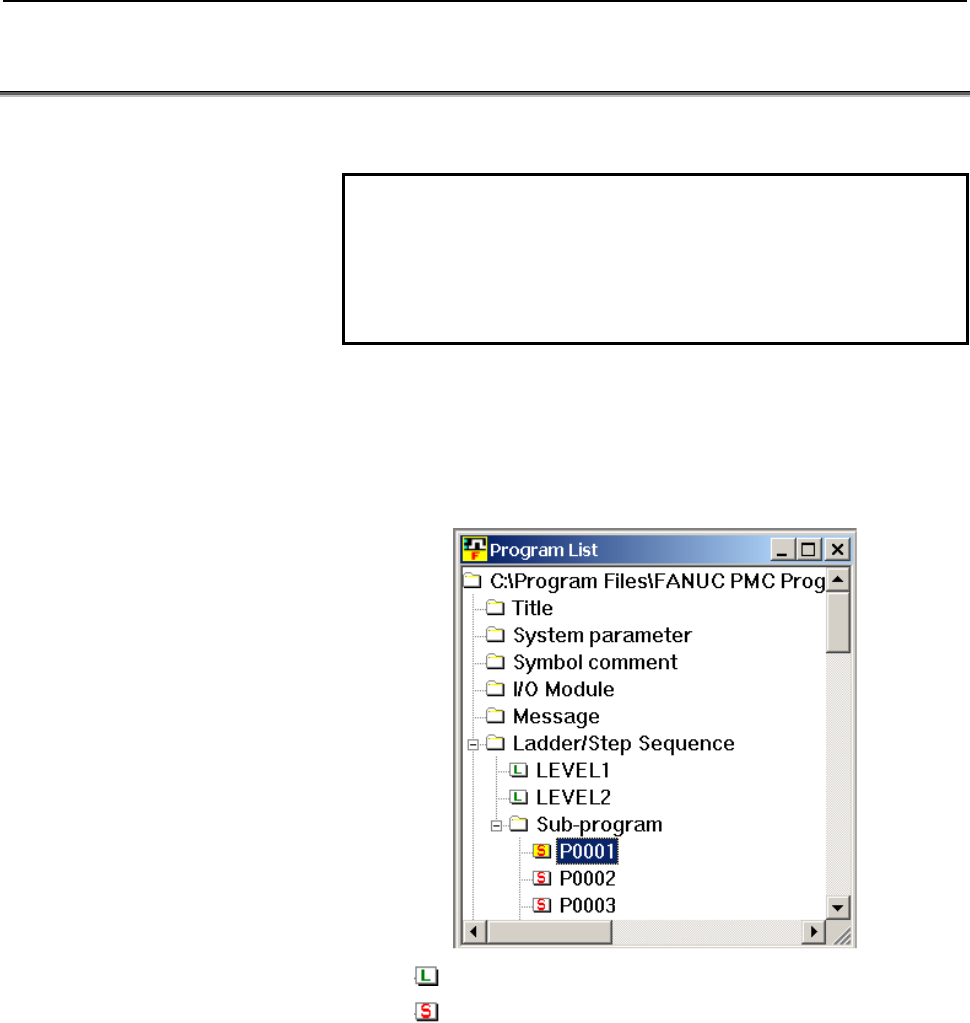

Fig. 3.6 (a)

2. On the [Program List] screen, double-click the step sequence

program you want to edit. Alternatively, select the step sequence

program, and then press the [Enter] or [F10] key.

Ladder

ram

Ste

uence

ram
