B-66234EN/05 9.DIAGNOSIS

- 307 -

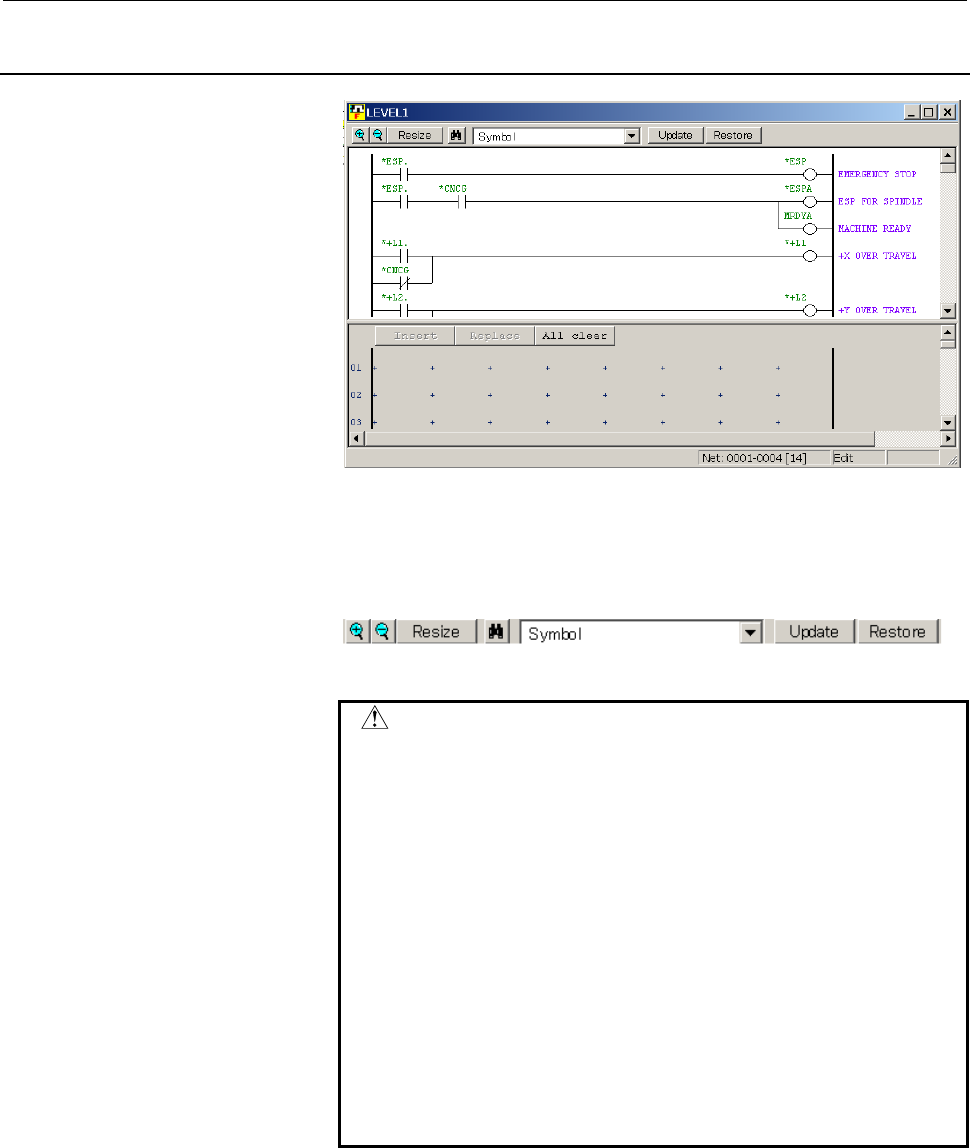

9.1.3 [Edit] Screen

Fig. 9.1.3(a)

The <Update> button on the toolbar writes the edited ladder program

to the PMC.

The <Restore> button restores the ladder program to its original state

that existed before editing.

Fig. 9.1.3(b)

CAUTION

1 Executing the update function alters the ladder

program on the PMC.

Before executing the update function, carefully

check whether it is safe to alter the ladder program.

Except for the Power Mate-D (PMC-PA3), powering

off the CNC without backing up the program clears

the program changes.

Before powering off the CNC, click the <Update>

button on the toolbar and then back up the

program.

2 To reflect the results of editing a ladder program in

online mode in the source program in the sequence

program (LAD file), switch to offline mode to

automatically execute decompilation. or execute

decompilation manually.

For other edit operations, see Section 3.5, "EDITING LADDER

DIAGRAMS."
