FANUC LADDER-III

SUPPLEMENTARY OPERATOR’S MANUAL

01 05/03/29 First issue B-66234EN/05-2

EDIT

DATE

DESIG.

DESCRIPTION

18/39

TITLE

DRAW.NO.

SHEET

CUST.

4. Addition of setting of zero suppression on PMC address

The following settings were added.

- When the mnemonic file is output, 0 is not added to the PMC address.

- When the external symbol file is output, 0 is not added to the PMC address.

(Example) When "R0000.0" is output, the PMC address is output in the form of "R0.0": zero

suppression. This function can be selected by setting the option.

4.1. Conversion to mnemonic file

Zero suppression of PMC address

The mnemonic file of the form that do not add "0" to the PMC address is

output.

Procedure

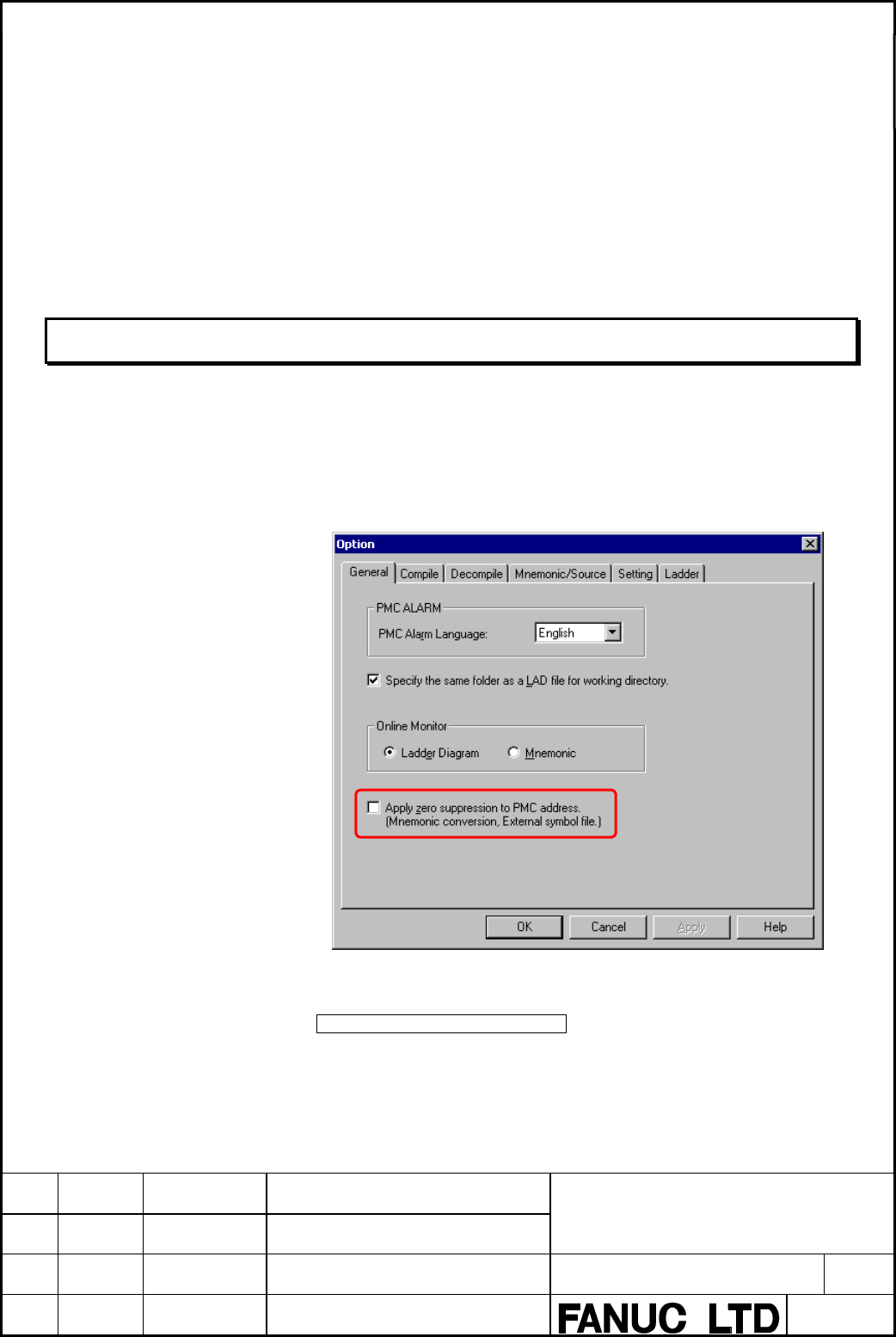

Select [Tool]-[Option...]. Then, the [Option] dialog appears.

Fig. 6.1(a)

Apply zero suppression to PMC address

No check

(Default)

When the mnemonic conversion and the external symbol file is output,

the output file is a form like "R0000.0" with "0" to the PMC address.

Check

When the mnemonic conversion and the external symbol file is output,

the output file is a form like "R0.0" without "0" to the PMC address.

Add to the end of "6.1 CONVERTING SOURCE PROGRAMS TO MNEMONIC FILES".
