B-66234EN/05 11.EXTENDED SYMBOL/COMMENT FUNCTION

- 409 -

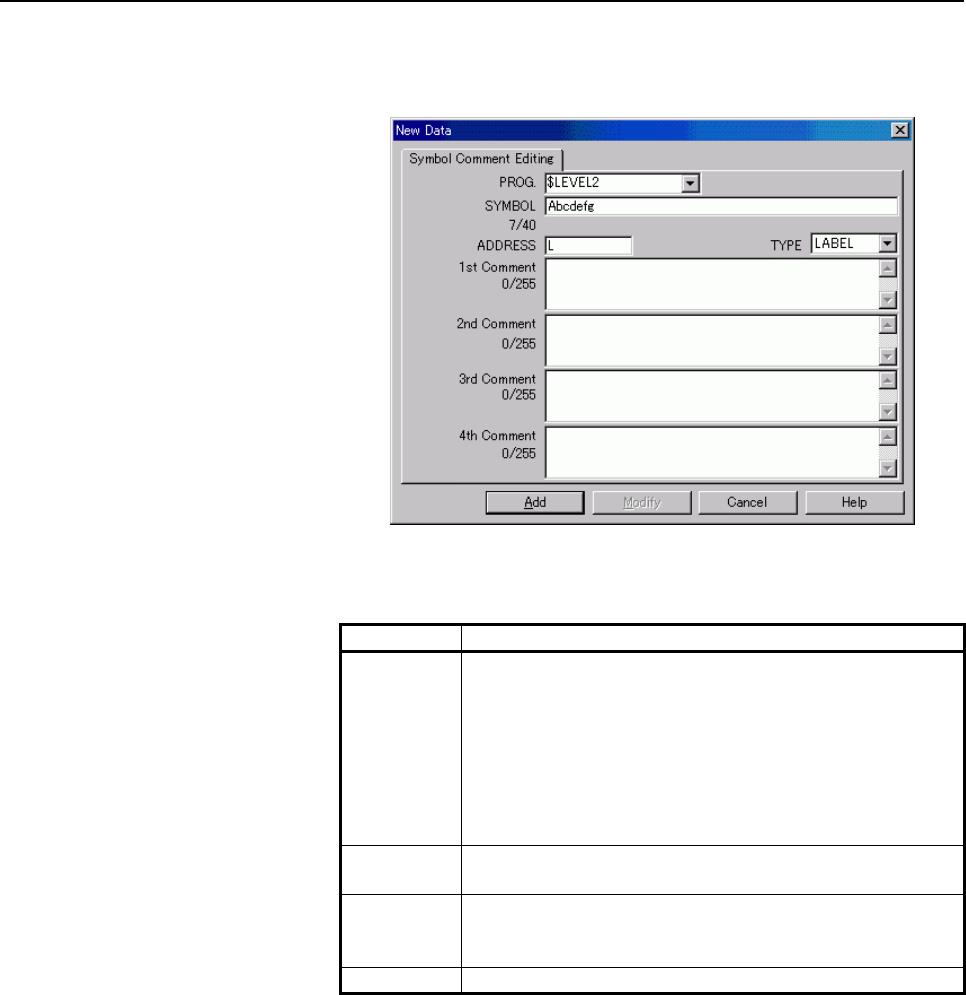

2. If you input the label as the undefined symbol, the following new

data definition screen appears. If you input the defined symbol,

the new data definition screen does not appear.

Fig. 11.3.9(b)

The following items are input automatically.

Table 7.1(a)

Item Contents

PROG. The contents of PROG are decided as follows by the

functional instruction and the subprogram name.

- JMPB: Since each program name is input, it is defined as

the local symbol.

- JMPC: Since nothing is input, it is defined as the global

symbol.

- LBL: In LEVEL2, it is defined as the global symbol.

Except LEVEL2, it is registered as the local symbol.

SYMBOL It is the label name input in the JMPB/ JMPC/ LBL

instructions

ADDRESS Only "L" is input automatically.

If you want to assign any specific label number, you may

change it.

TYPE "LABEL" is input automatically.
