FAPT Ladder-III Operators manual Page 99

Operators manual
B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS
- 73 -
3.5.17.1 Context menu
Search is possible with the easy operation by right-click operation of
the mouse. The context menu is displayed by the right-click after you
move cursor to the address or the functional instruction to search. You
can search by displayed "Find" menu.

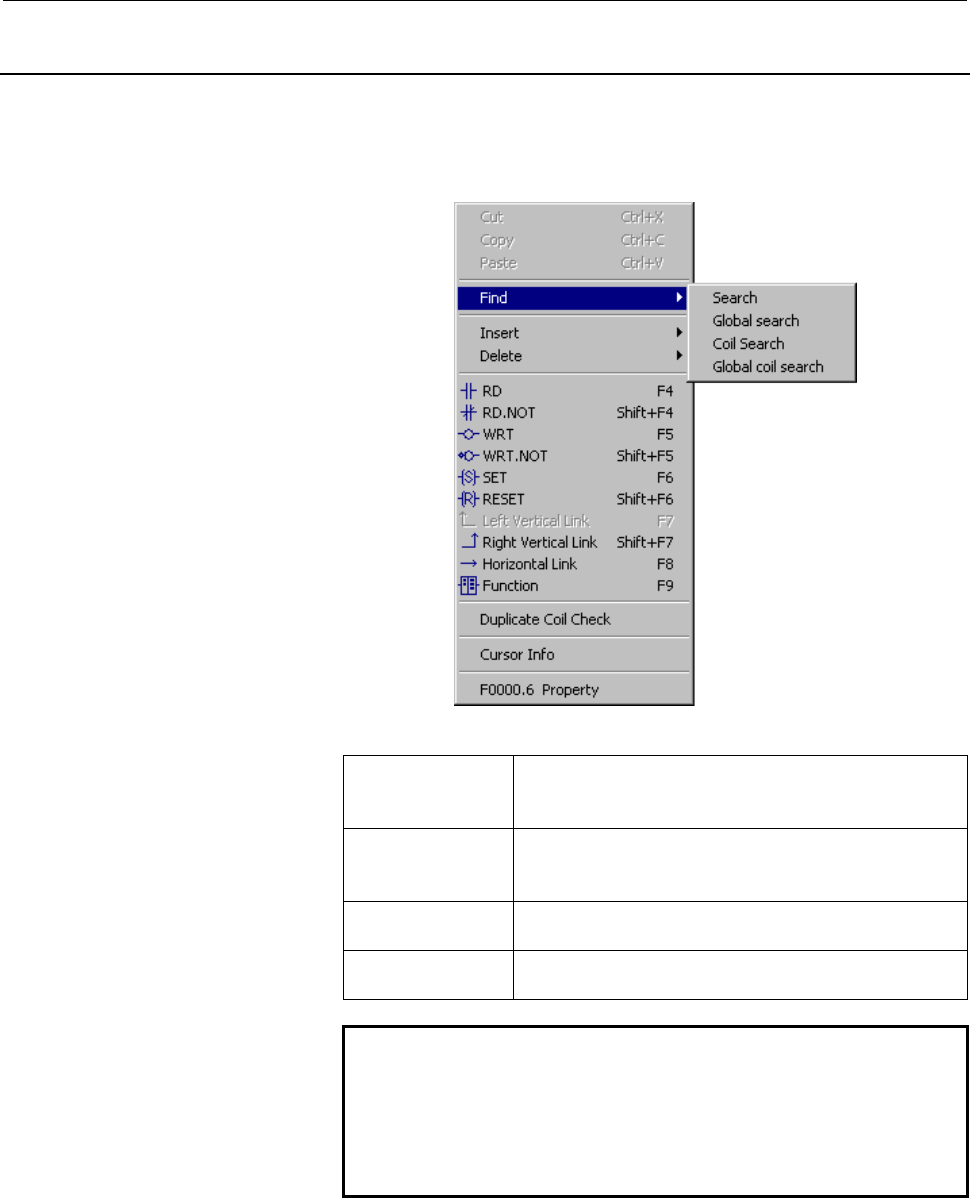

Fig. 3.5.17.1 (a)
Search In the open ladder source program, the relay address,
the coil address, the functional instruction, and the
byte address are searched.
Global search In all ladder source program, the relay address, the
coil address, the functional instruction, and the byte
address are searched.
Coil Search In the open ladder source program, the coil address is
searched.
Global coil search In all ladder source program, the coil address is
searched.
NOTE
1 The editing screen separated into the display and
the editing window is not supported.
2 The [Monitor] and the [Signal Trigger] of the online
mode are not supported.
3 The step sequence programs is not supported.
