B-66234EN/05 11.EXTENDED SYMBOL/COMMENT FUNCTION

- 383 -

11 EXTENDED SYMBOL/COMMENT

FUNCTION

The extended symbol/comment function allows you to use the

following features.

• Increase in the symbol/comment character count

• Ladder edit by using symbol.

• Symbol effective in each sub-program

• Symbol type setting

• Automatic assignment function for R,D,E address.

How to setup

In case of using the extended Symbol/Comment function, type of

PMC program has to be set when creating the new program.

Procedure

1. Select [File(F)] - [New Program]

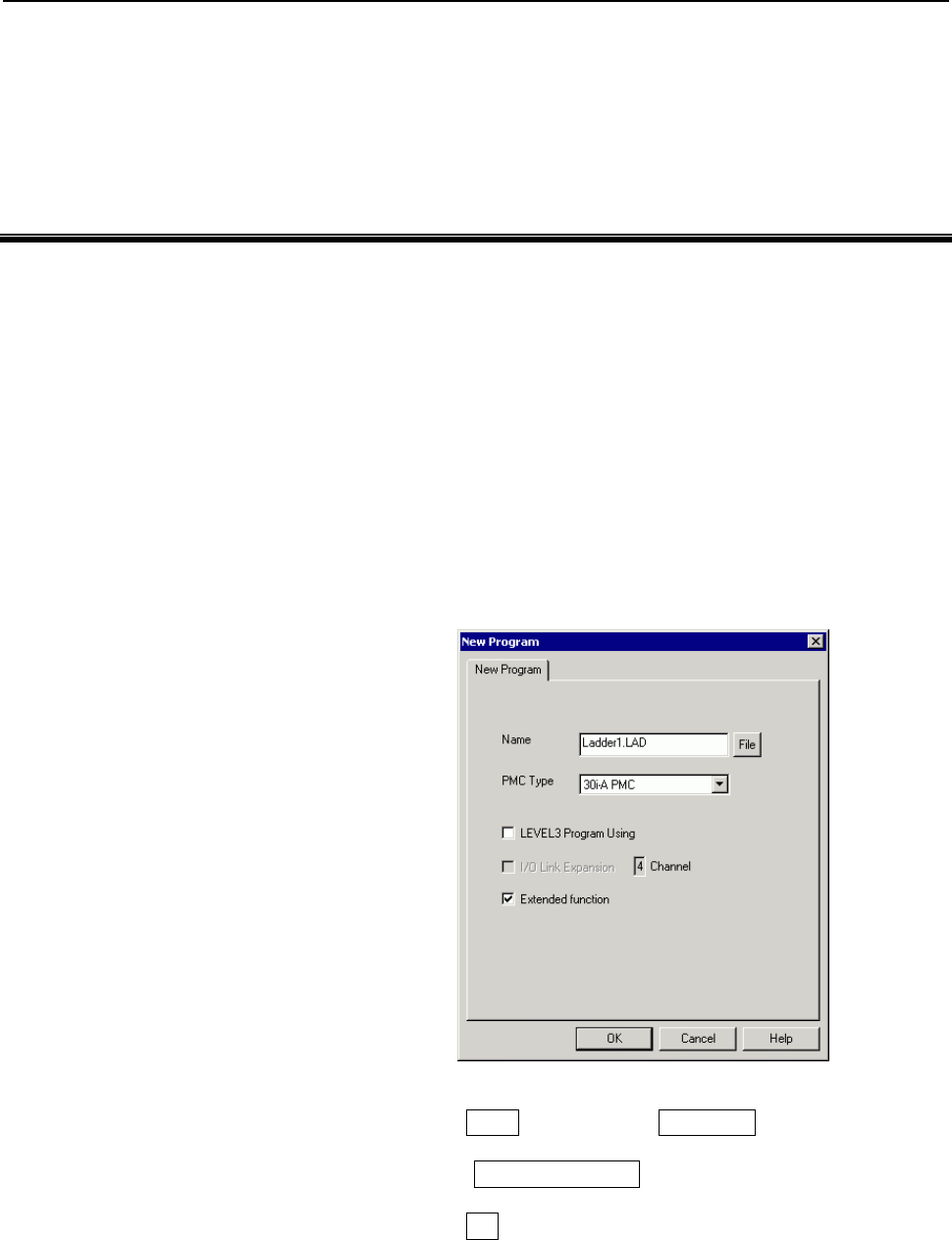

Fig. 11(a)

2. Enter the Name, then select the PMC Type

3. Check the Extended Function

4. Click the OK button
