FAPT Ladder-III Operators manual Page 278

Operators manual
6.MNEMONIC EDITING B-66234EN/05
- 252 -
NOTE
1 If you don’t need the control character in a
mnemonic file, please set
“NETCMT_CTRL_CHAR=NULL” in a
file %%%FLSET.
2 When the control character is used in a string,
please describe two consecutive control
characters.
Ex.) When the control character is “#”, please
describe “##”.
3 When specifying the position of a form feed
character (printing a ladder diagram), please
describe “a control character” + “P” in a net
comment.
4 If this software is updated with the new released
installer, a file %%%FLSET is initialized and the
line of “NETCMT_CTRL_CHARA=“ is deleted.
After reinstalling this software, please set
“NETCMT_CTRL_CHARA=“ again if you want to
change the control character in a mnemonic file.

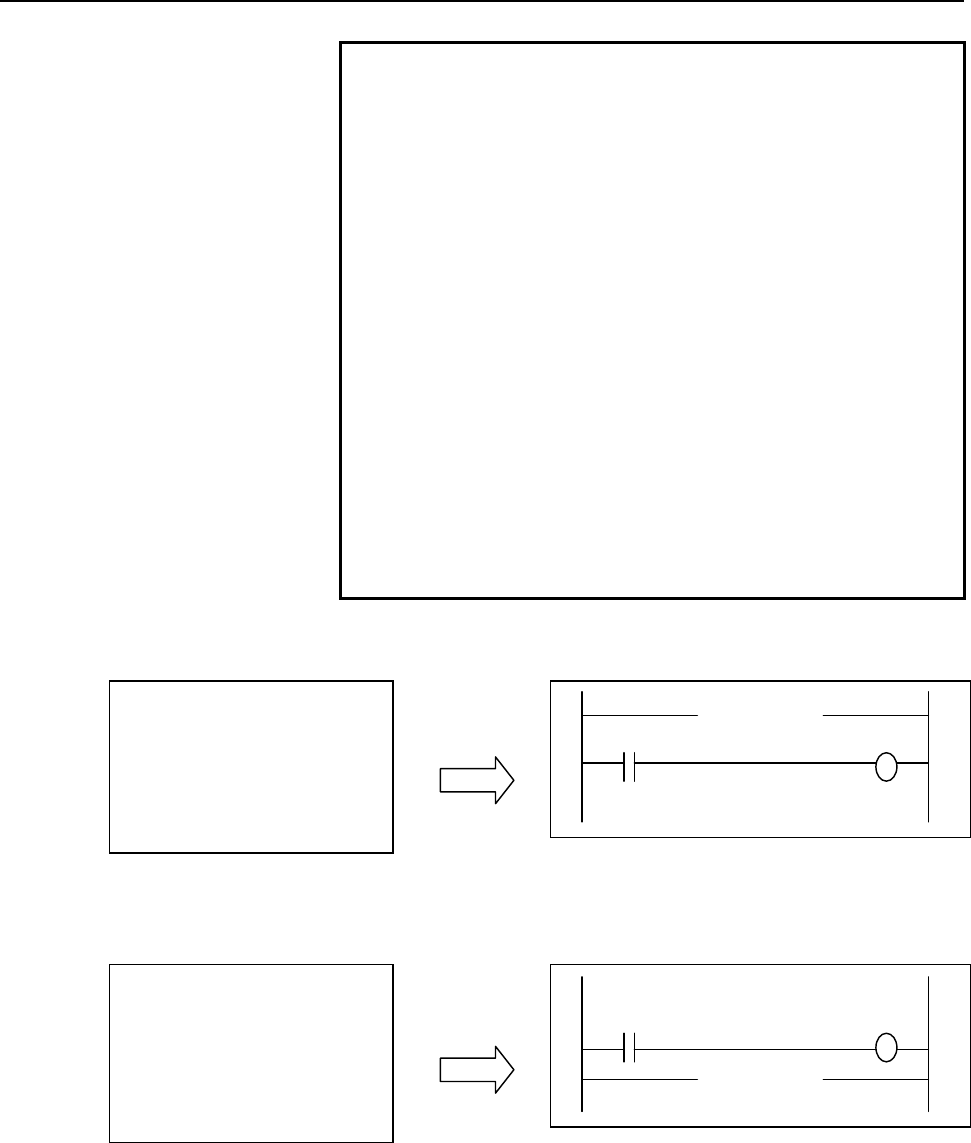

(Example)
When the control character is “$”.
Fig. 6.3 (b)
When the control character is “#”.
Fig. 6.3 (c)
%@3
(* $P *)
RD ABC
WRT XYZ
(* #P *)
:
%
[ #P ]
Converting into
the source
program
<New page>
A
BC XYZ
%@3
(* $P *)
RD ABC
WRT XYZ
(* #P *)
:
%
[ $P ]
A
BC
XYZ
<New page>
Converting into
the source
program
