3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 72 -

4. Specify a character string you want to search for.

4-1 Search string

Enter a character string to be searched for.

In a character string to be found, two types of wildcards can

be used: a question mark (?) and an asterisk (*). A wildcard

substitutes for one or multiple characters.

A question mark (?) is used to represent one character. This

wildcard can be used more than once to represent characters.

An asterisk (*) represents zero or more characters.

Multiple addresses can be specified by delimiting them

from each other by a comma (,) or semicolon (;). (Example:

Y0.0;X0.0)

4-2 Wildcard search

Check this check box if a specified character string to be

found includes wildcards.

4-3 Multiple search strings

Check this check box to specify multiple character strings to

be searched for.

4-4 Search direction

Select Upper direction or Lower direction as the direction of

search.

4-5 Search result list display

Check this check box to display the search results on the

[Search result list (call)] screen in a batch.

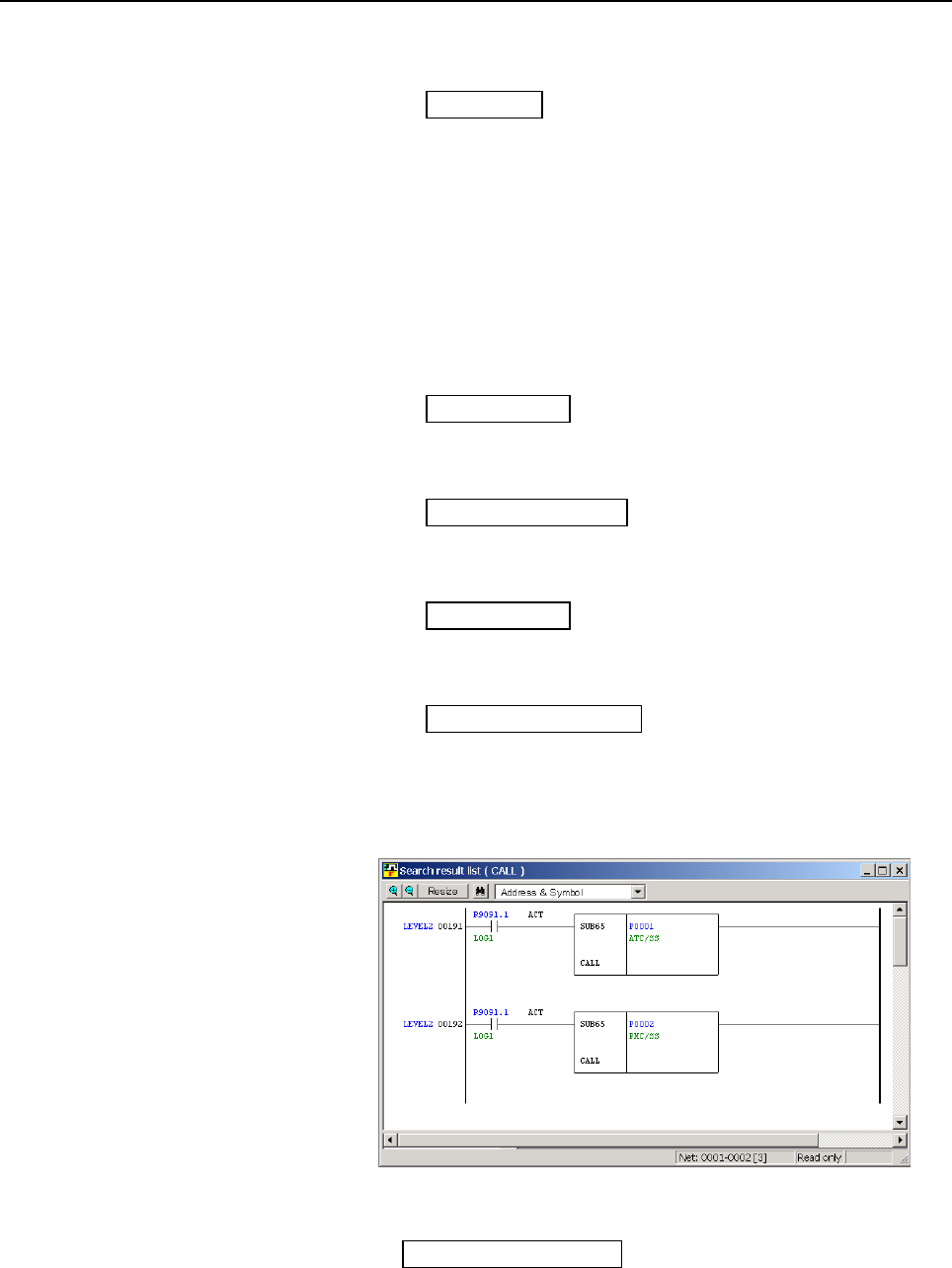

The [Search result list (call)] screen displays program

numbers, net numbers, ladder diagrams, and coil comments.

Fig. 3.5.17(e)

5. Execute search operation.

If Search result list display is checked, click the <Exec> button.

In other cases, click the <Next search> button.

6. Clear search condition settings.

Click the [Clear] button. The setting of each item is initialized.
