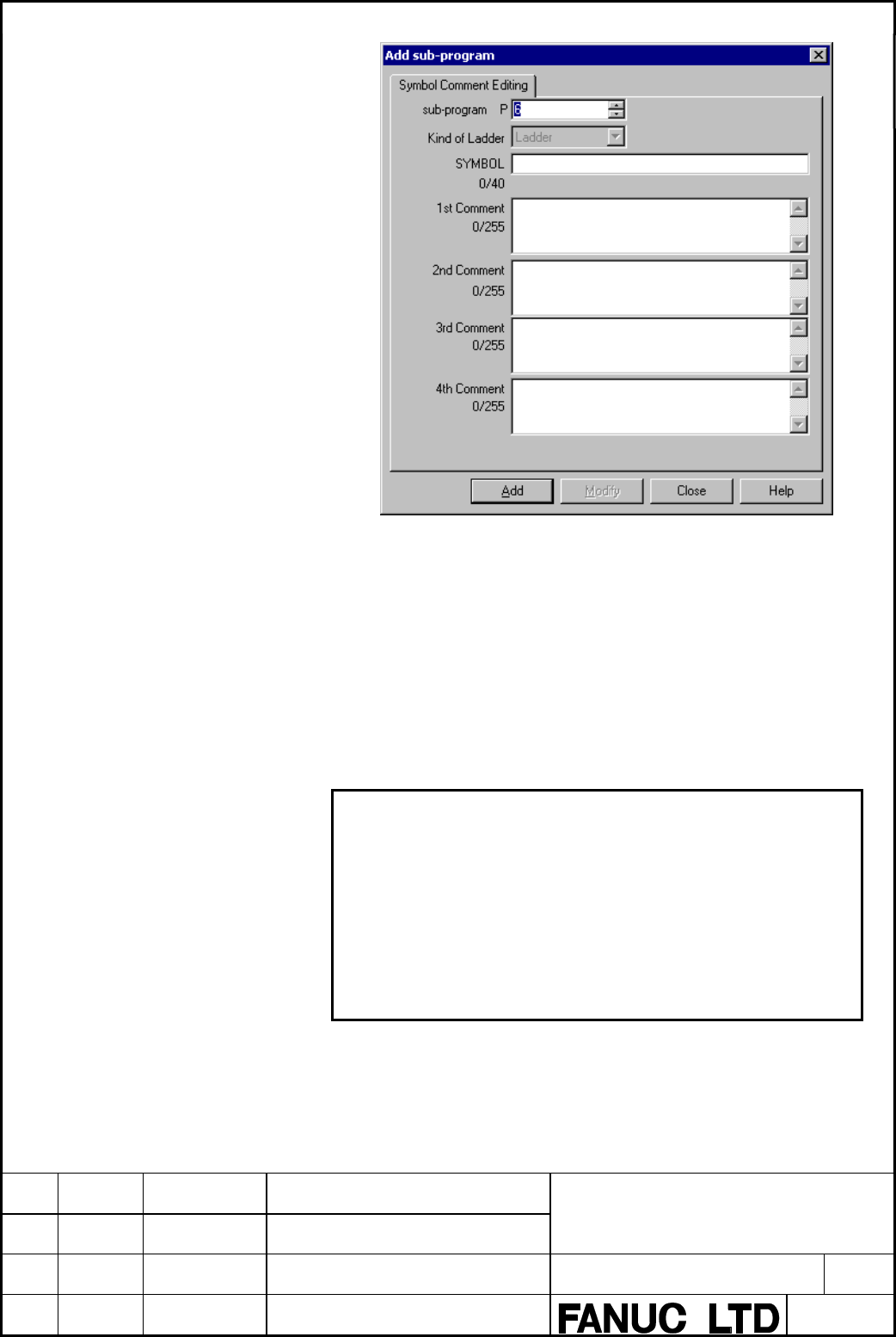

Fig. 3.5.12(f) For the PMC type which corresponds to plural comments
(30i/31i/32i-A with extended function)
4. Input the subprogram name.
5. Input the symbol and the comment, and push < OK > or <Add> button.
6. The subprogram is copied, and the screen of the added ladder program
is displayed.
*Supported drag/drop operations on program list screens.
Note
1. The step sequence subprogram cannot be copied.
2. The subprogram cannot be copied in online edit mode.
3. When the extended function is used, all the local symbols defined in the
sub program are copied.
4. The sub program cannot be copied between PMC-SA1 and other PMC
types.
5. The CALL instructions calling original subprogram name are not
replaced with new subprogram name.
Please correct the original program manually to correct the CALL
instruction.
