FAPT Ladder-III Operators manual Page 190

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05
- 164 -
3.14 IMPORTING PROGRAMS
This section describes how to import (copy in overwrite mode) data
files, ladder diagrams, and subprograms from a LAD program to
another sequence program that is currently open. It also explains how
to import (convert and copy in overwrite mode) files on a memory
card, ROM, or Handy file format to a currently open sequence
program file in memory card format.
3.14.1 Procedure
1 Select [File] - [Open Program] to open the program to which you
want to import.
2 Select [File] - [Import].

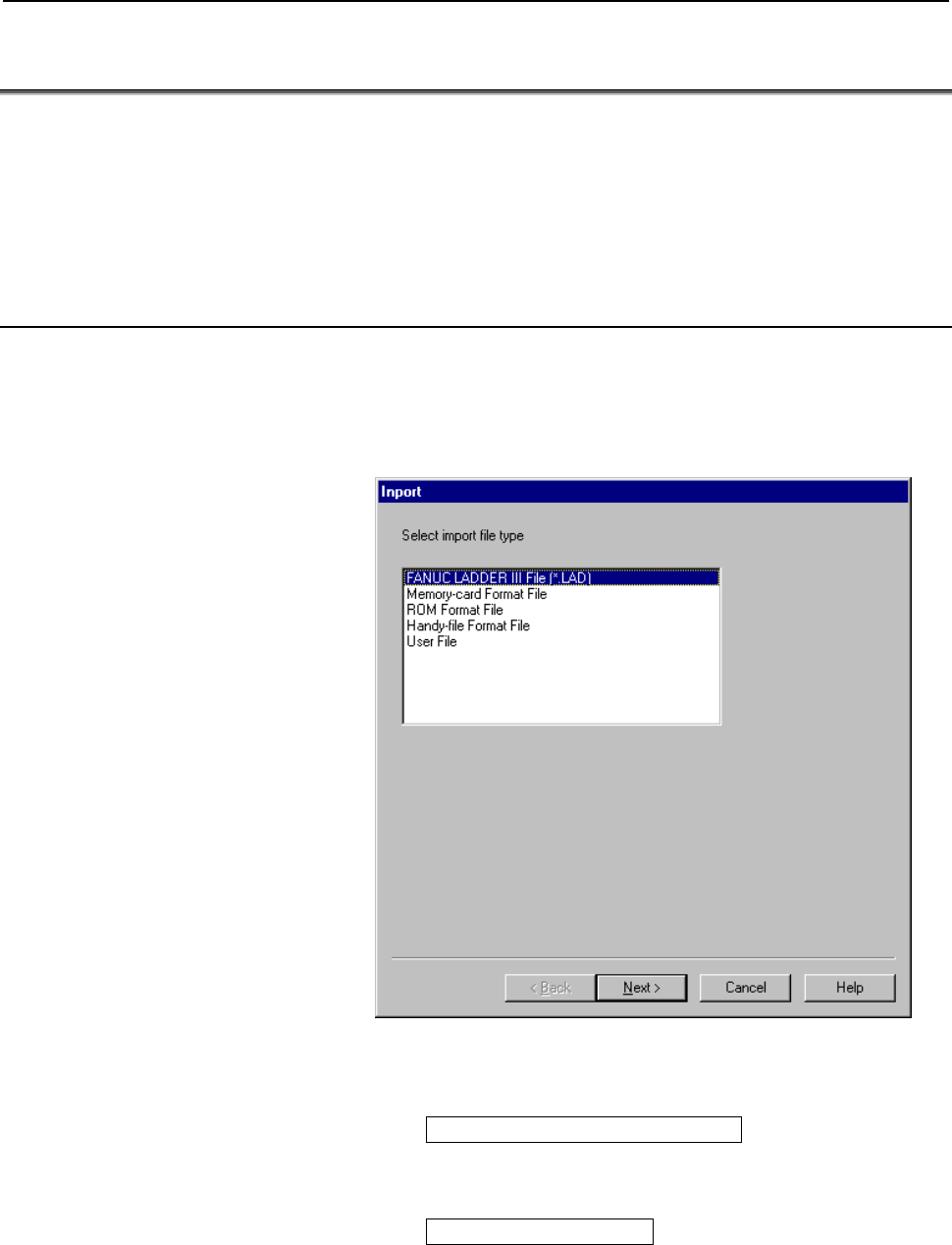

The [Import/Export -- Select import file type] screen appears.
Fig. 3.14.1 (a)
2-1 Select the files you want to import.
FANUC LADDER-III File (*.LAD)
A data file is imported from a sequence program (LAD
file) for the same PMC model.
Memory-card Format File
A memory card format file is imported. It is written
over a memory card file (MCARD) for the currently
open sequence program.
