FANUC LADDER-III

SUPPLEMENTARY OPERATOR’S MANUAL

01 05/05/30 First issue B-66234EN/05-3

EDIT

DATE

DESIG.

DESCRIPTION

34/55

TITLE

DRAW.NO.

SHEET

CUST.

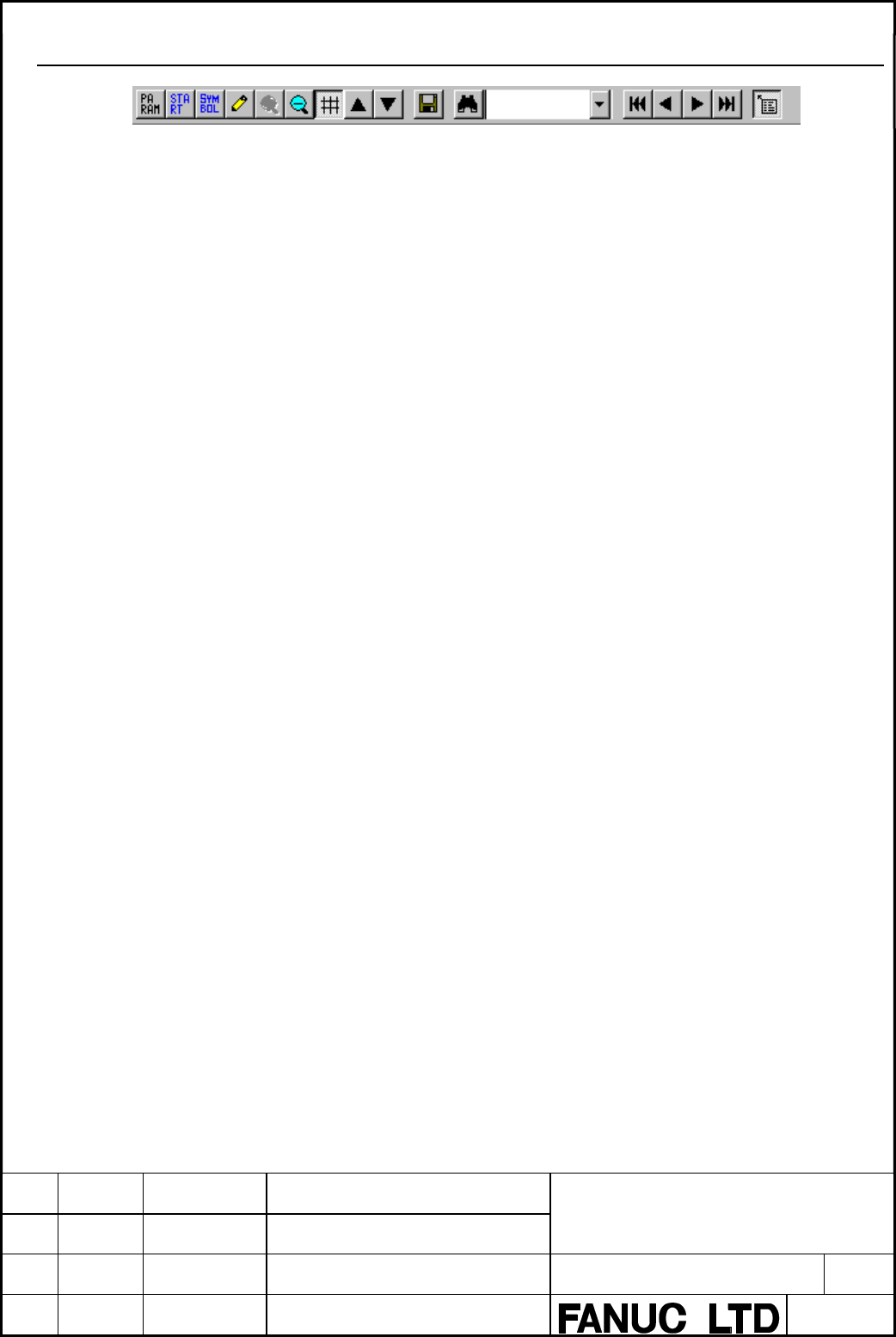

9.10.2 Toolbar

<1> <2> <3> <4> <5> <6> <7> <8> <9> <10> <11> <12> <13> <14><15><16>

Fig. 9.10.2

<1> Trace parameter setting button

Displays the [Trace Parameter Setting] dialog box.

<2> Trace start button

Starts or stops tracing.

When this button is in the up state, tracing is stopped.

When the button is in the down state, tracing is executed.

* When the trace function is being executed, the <Trace start>

button is in the down state.

<3> Symbol on/off button

Sets the display format of the trigger and sampling addresses.

When the symbol format is selected, the button is in the down state;

when the address format is selected, the button is in the up state.

<4> Marking button

Marks the cursor position at that time and displays the mark cursor.

When the mark cursor and current position cursor overlap one

another, the current position cursor is displayed. At the bottom of

the screen, [Mark position], the mark cursor position, and [Range],

the range from the mark cursor position to the current position

cursor, are displayed.

<5><6> Zoom button

Magnifies or reduces graphs.

<7> Grid line button

Specifies whether to display grid lines.

<8><9> Up-and-down replacement button

Clicking the [UP] button replaces the trace result at the address

cursor with the line immediately above.

Similarly, clicking the [DOWN] button replaces the trace result

with the line immediately below.

The display after replacement is held until the next execution of

tracing.
