FAPT Ladder-III Operators manual Page 193

Operators manual

Page of 714

/ 714

B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 167 -

♦ If the FANUC LADDER-III file (*.LAD) is selected as an

import-from file in step 2, above

4 Click the <Next> button.

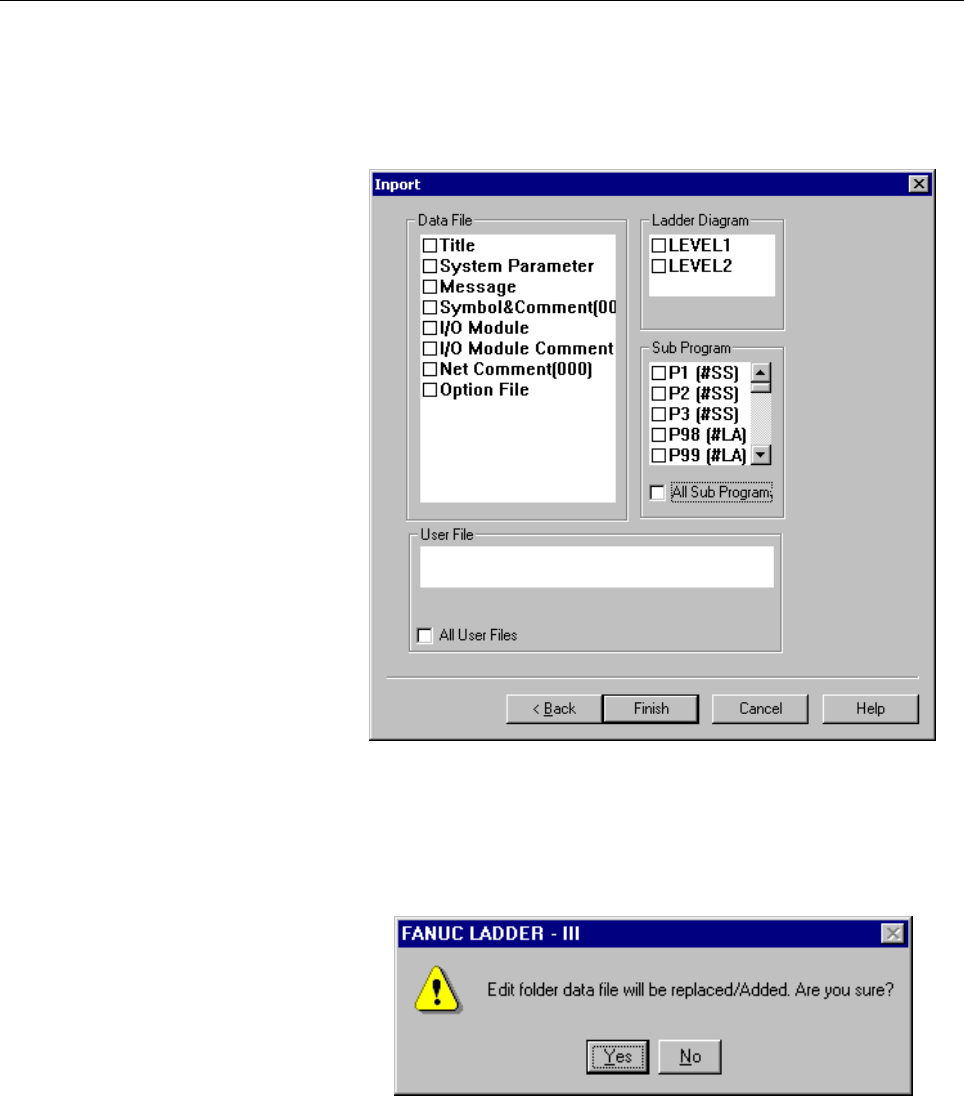

The [Import/Export --Select Data File, Ladder Diagram,

Subprogram, and/or User File] screen appears.

Fig. 3.14.1 (c)

4-1 Select the types of files you want to import.

5 Click the <Finish> button.

The message "Edit folder data file will be replaced/Added, Are

you sure?" appears.

Fig. 3.14.1 (d)

To import, click the <Yes> button.

To return to the [Import/Export -- Select Data File, Ladder

Diagram, Subprogram, and/or User File] screen without

continuing, click the <No> button.

6 To quit importing, click the <Cancel> button on the

[Import/Export File--Select Data File, Ladder Diagram,

Subprogram, and/or User File] screen.
