Initial step

An initial step is a step that automatically becomes active when the

program starts running. Except for this point, the initial step behaves

in the same manner as ordinary steps. Control can be passed from a

usual step to the initial step again. In this case, the initial step behaves

in exactly the same manner as an ordinary step.

• A step number [Sn] necessary to control the execution and a

subprogram [Pm] that describes the actual processing are defined

for an initial step.

• All initial steps become active when no other step is running.

• Each block must have at least one initial step. It can have any

number of initial steps.

• If a block has no initial step, it is not executed even if called.

• Each initial step is always assigned a step number. A duplicate

step number cannot be used in a program.

• If there are initial steps in the middle of parallel branching, there

must be at least one initial step in each flow.

Transition

A transition represents a condition under which transition occurs from

one step to another.

• There must be only one transition between steps.

• The transition of processing from one step to another is carried

out as described below:

• When a signal becomes on in a transition, its state is held even

after state transition occurs. So, if you do not want to maintain

the state, you must turn off the signal, using another subprogram.

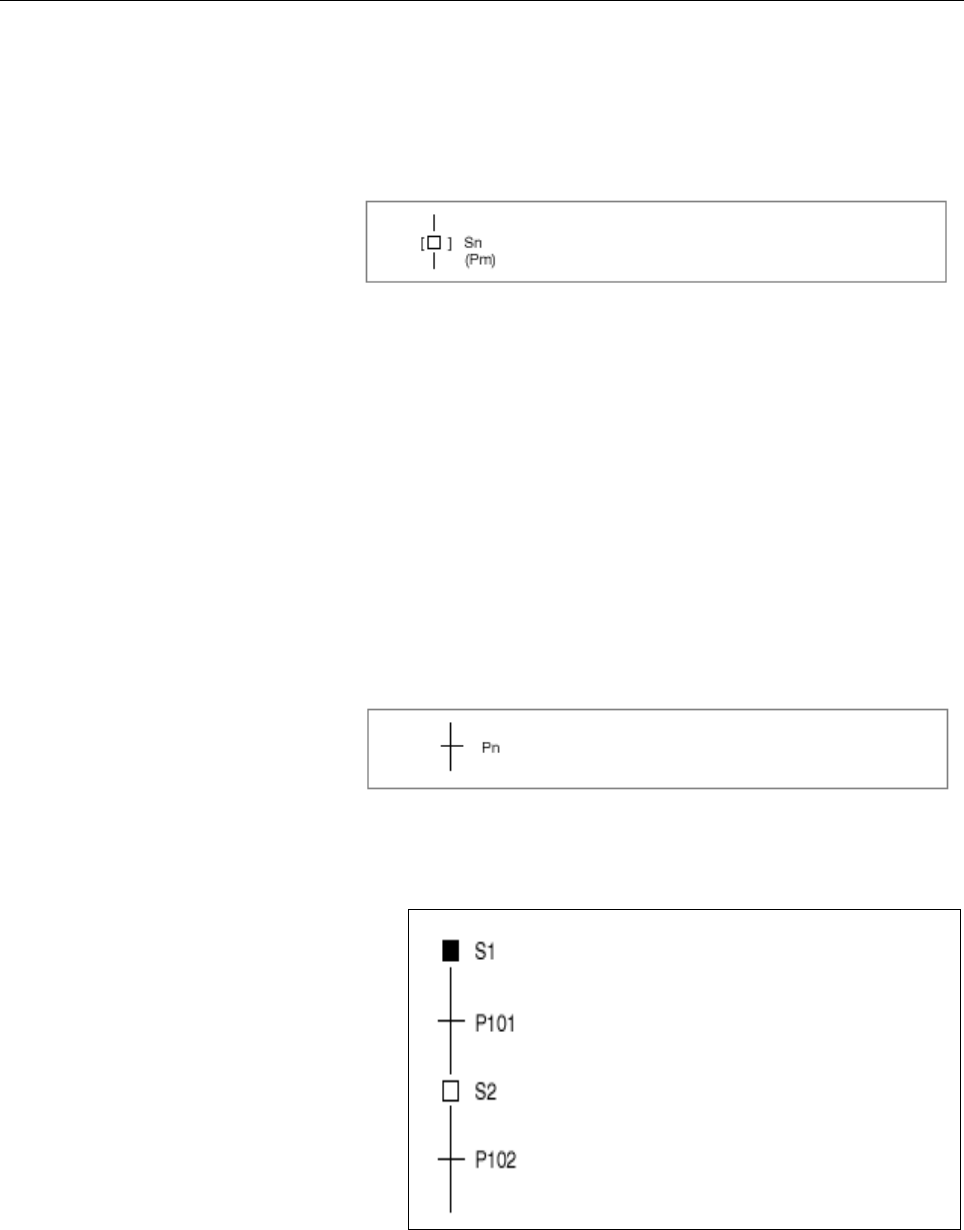

When S1 is running, only S1 and P101 are

processed. The other steps or transitions are not

executed. Even if P102 is satisfied, it is invalid

unless S2 is running.

Transition from S1 to S2 can occur if P101 is

satisfied. When P101 is satisfied, S1 ends

regardless of the state of S1, allowing S2 to start.
