FANUC LADDER-III

SUPPLEMENTARY OPERATOR’S MANUAL

01 05/01/14 First issue B-66234EN/05-1

EDIT

DATE

DESIG.

DESCRIPTION

18/69

TITLE

DRAW.NO.

SHEET

CUST.

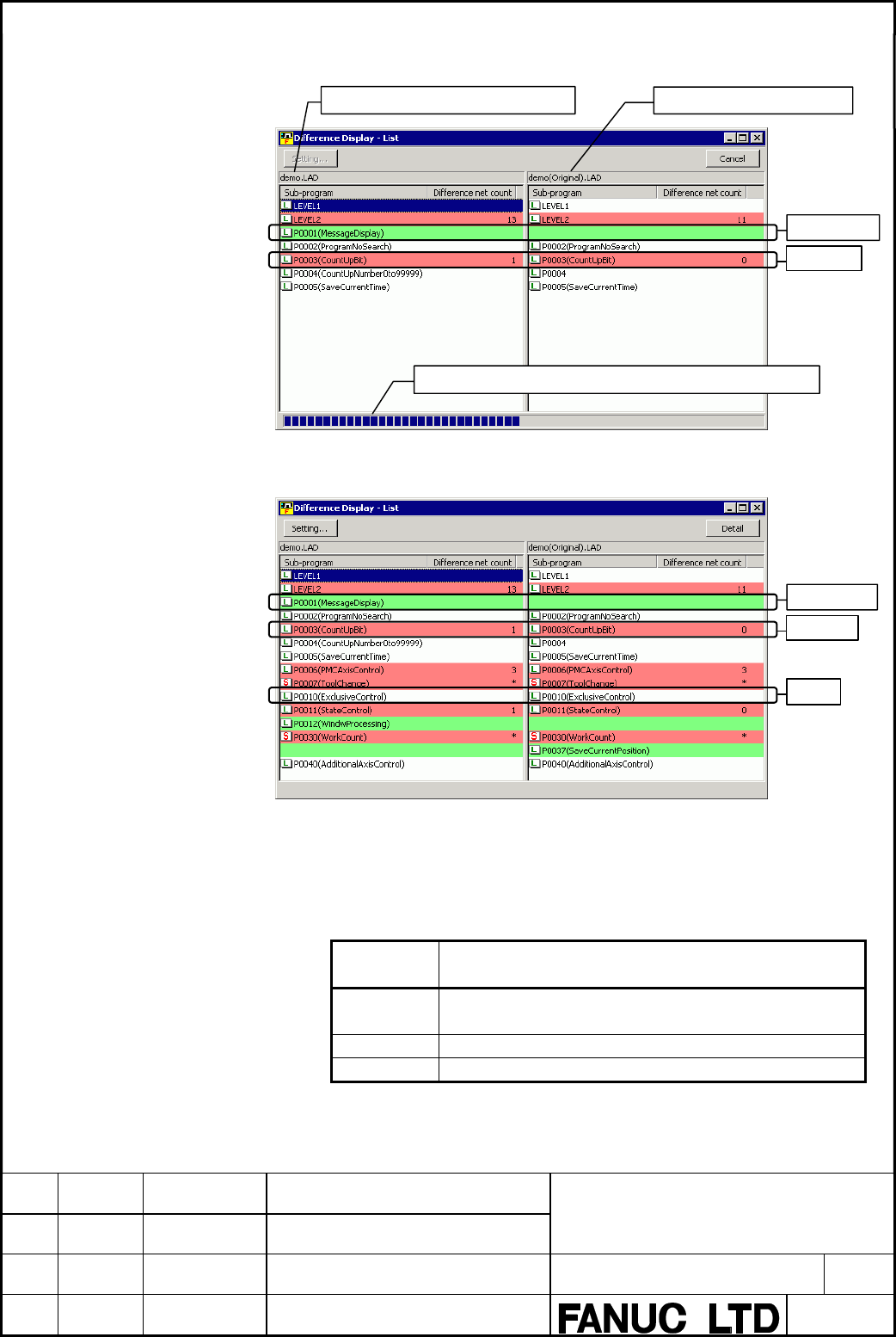

3. [Difference Display - List] screen appears.

Fig. 3.19.1(c) Comparing screen

Fig. 3.19.1(d) Comparison completion

To display the different part in the ladder subprogram, double-click

the target subprogram or click <detail> button after clicking the target

subprogram.

Displaying the comparison result in the following background color.

Background

color

Content of difference

White The content of the subprogram is the same. (the same color

as "Background" in ladder editing screen)

Light red The content of the subprogram is different.

Light green An odd subprogram exists.

Editing file: Source of comparison

Destination of comparison

The progress of the comparison processing is displayed.

Light red

Light green

Light red

Light green

White
