FAPT Ladder-III Operators manual Page 675

Operators manual

Page of 714

/ 714

FANUC LADDER-III

SUPPLEMENTARY OPERATOR’S MANUAL

01 05/05/30 First issue B-66234EN/05-3

EDIT

DATE

DESIG.

DESCRIPTION

35/55

TITLE

DRAW.NO.

SHEET

CUST.

<10>Output button

The trace result is outputted by text format.

Please refer to "9.10.10 Trace Result Output" for details.

<11>Search button

Searches the trace display area for the specified time or frame

number.

<12>First trace result button

Moves the cursor at the beginning of the trace result.

<13>Previous trace result button

Scrolls the trace result display up by one page.

<14>Next trace result button

Scrolls the trace result display down by one page.

<15>Last trace result button

Moves the cursor at the end of the trace result.

<16>Symbol hint display button

The detailed information on a symbol is displayed as a tool chip.

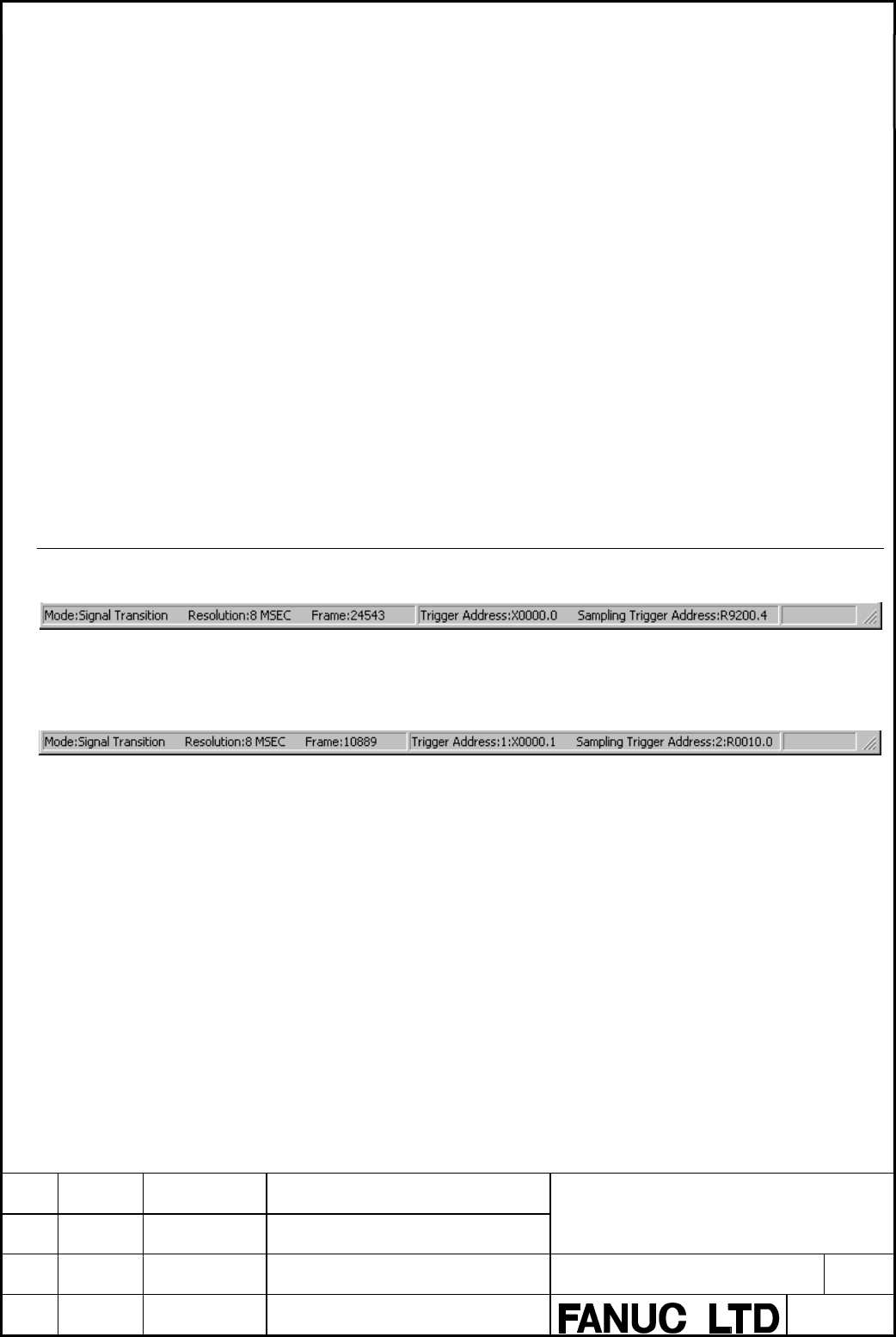

9.10.3 Status Bar

<1> <2> <3> <4> <5>

Fig. 9.10.3(a)

<1> <2> <3> <4> <5>

Fig. 9.10.3(b) multi-path PMC

<1> Sampling mode

The current selected sampling mode is indicated.

<2> Resolution

The current resolution setting is indicated.

<3> Frame

The current setting of the number of sampling frames is indicated.

<4> Trigger address

The current setting of the sampling stop trigger address is indicated.

<5> Sampling trigger address

The current setting of the sampling trigger address is indicated.
