3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 116 -

3.5.28.1 Automatic input of the TMR parameter of a functional

instruction

When inputting the TMR parameter, you must consider precision.

Some contents of the display differ in offline editing and online

editing.

Offline editing

(1) Range of parameter numbers subject to this automatic input

Timer numbers with their precision default setting being 8 ms

(timer number 9 and subsequent numbers) are assumed to be

subject to this automatic input.

Online editing

(1) Range of parameter numbers subject to this automatic input

The timer number 9 or later is assumed to be subject to this

automatic input.

(2) Display of setting and precision of an input timer number

In online editing, the preset value and accuracy value of an input

timer number are displayed in the status line in the following

format.

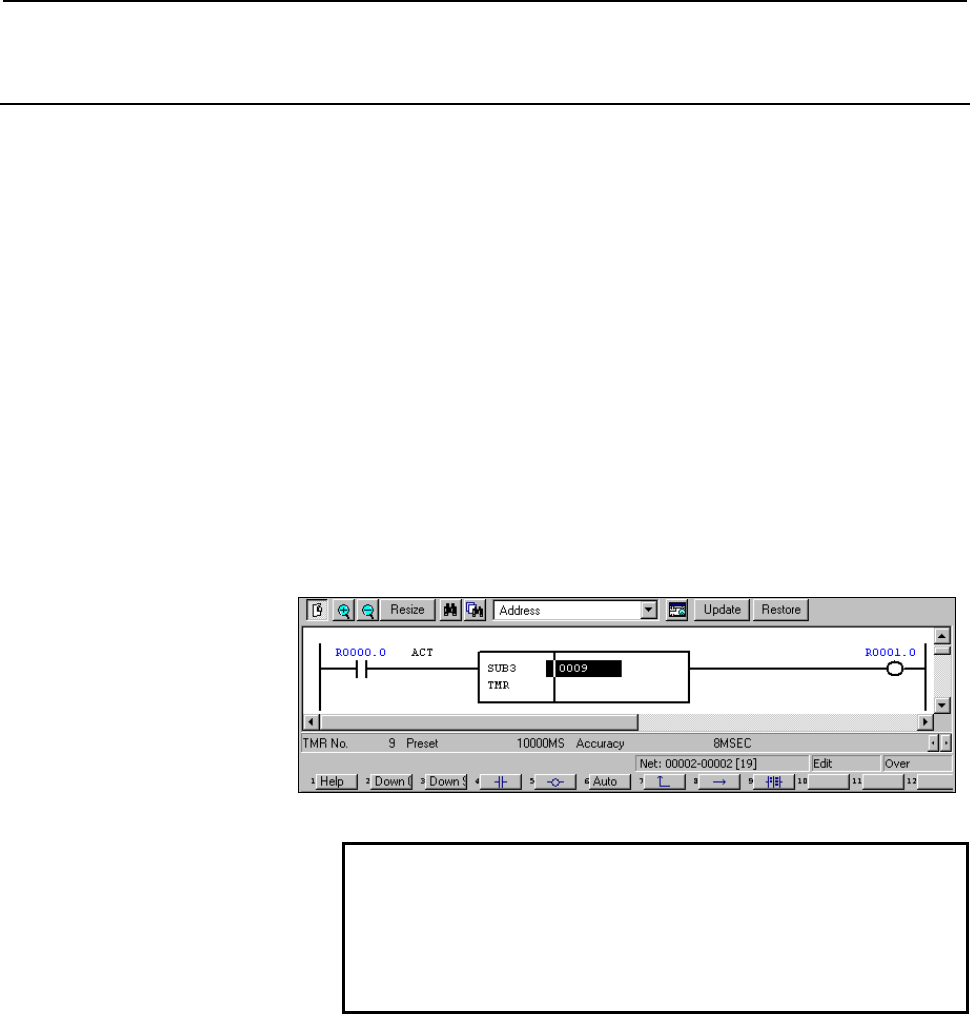

Fig. 3.5.28.1(a)

NOTE

All models are supporting the display of the TMR

number, the preset value and accuracy value on

the status line. If the automatic input of the TMR

parameter is supported, "Auto" will be displayed on

the [F6] key.
