FAPT Ladder-III Operators manual Page 222

Operators manual
4.PRINTING SEQUENCE PROGRAMS B-66234EN/05
- 196 -
1-2 Click the <Option> button. The [Option] screen appears.

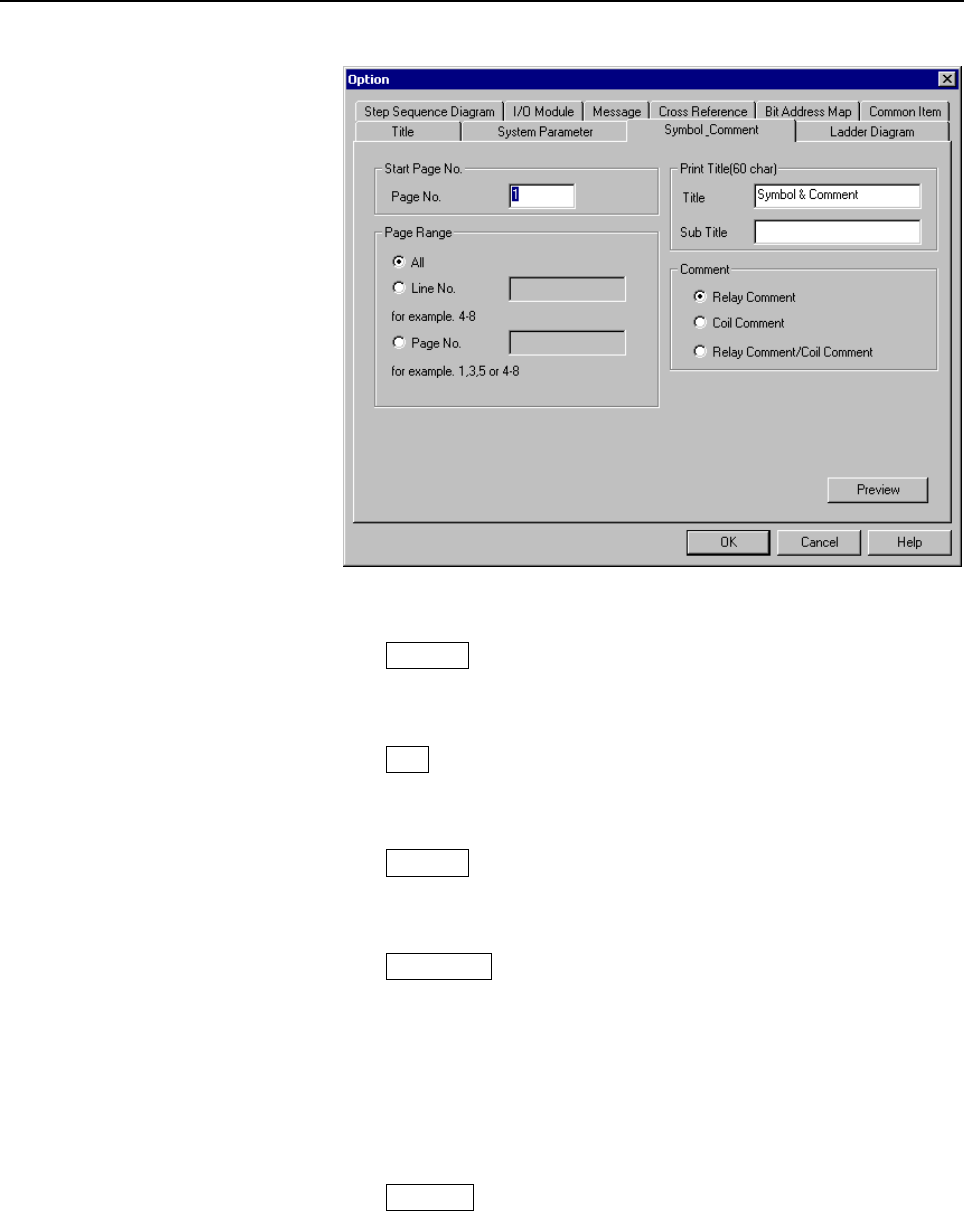

Fig. 4.4.1 (b)
2. Set up the following print options on the Symbol tab.
Page No.
Specify a start page number for symbol printing (the
Initially value is 1).
Title
Specify a title for symbol printing (the Initially value is
"Symbol & Comment").
Sub Title
Specify a subtitle for symbol printing (the Initially value is
blank).
Page Range
Specify the range of symbols to be printed (the Initially
value is <All>).
All: All the symbols will be printed.
Line No.: The symbols on the specified lines will be
printed.
Page No.: The symbols on the specified pages will be
printed.
Comment
Specify the type of comment you want to print (the Initially
value is <Relay Comment>).
Relay Comment: A relay comment will be printed.
Coil Comment: A coil comment will be printed.
Relay Comment/Coil Comment:
Relay and coil comments will be printed.
Previous page
Next page
