FAPT Ladder-III Operators manual Page 53

Operators manual

Page of 714

/ 714

B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 27 -

Selection of Multi-path PMC

[Selection of device] dialog box appears by the following operation.

• Starting the communication to PMC when no program is opened.

• Starting the communication to PMC when PMC type of the

opened program does not support Multi-path PMC.

• Selecting [Device select…] in TOOL menu.

In the [Selection of device] dialog, specify the PMC path you want to

connect. When you change the destination, perform communication

with the PMC again.

Procedure

1. The [Selection of device] dialog appears. (Only the PCM paths to

which you can connect are displayed.)

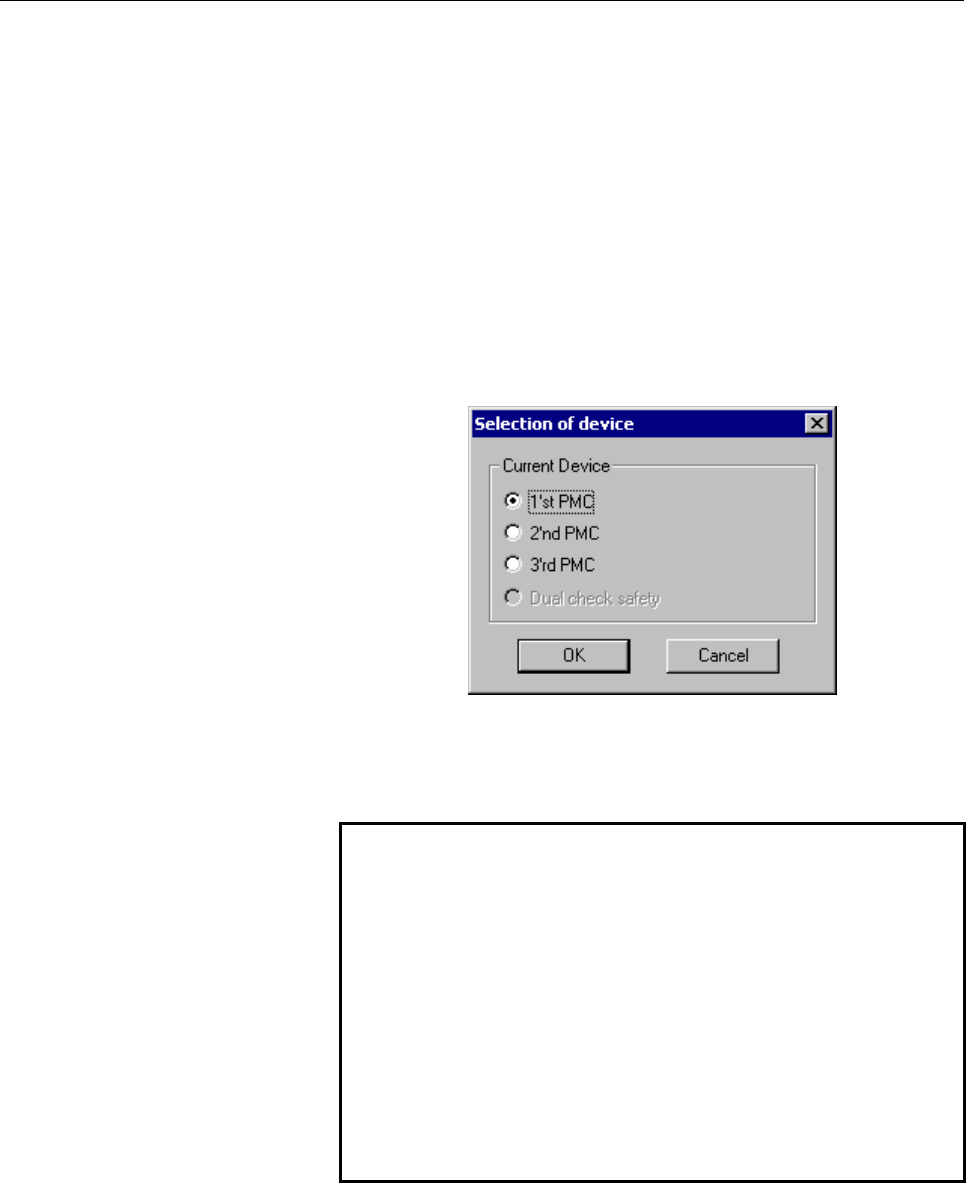

Fig. 3.1.4(b)

2. Select the path you want to connect using the [↑] and [↓] keys.

3. Click the <OK> button.

NOTE

1 It is not possible to connect with two or more PMC

paths at the same time.

2 When PMC type of the opened program support

Multi-path PMC and the connection to PMC is

started, FANUC LADDER-III is automatically

connected with the PMC path of the opened

program.

3 [Selection of device] dialog is not displayed when

there is only one PMC path which can be

connected. (When selecting [Device select…] in

TOOL menu, [Selection of device] dialog is

displayed.)
