FAPT Ladder-III Operators manual Page 683

Operators manual
FANUC LADDER-III
SUPPLEMENTARY OPERATOR’S MANUAL
01 05/05/30 First issue B-66234EN/05-3
EDIT
DATE
DESIG.
DESCRIPTION
43/55
TITLE
DRAW.NO.
SHEET
CUST.
OK
Stores the settings and closes the dialog box.
Cancel
Closes the dialog box without storing the settings.

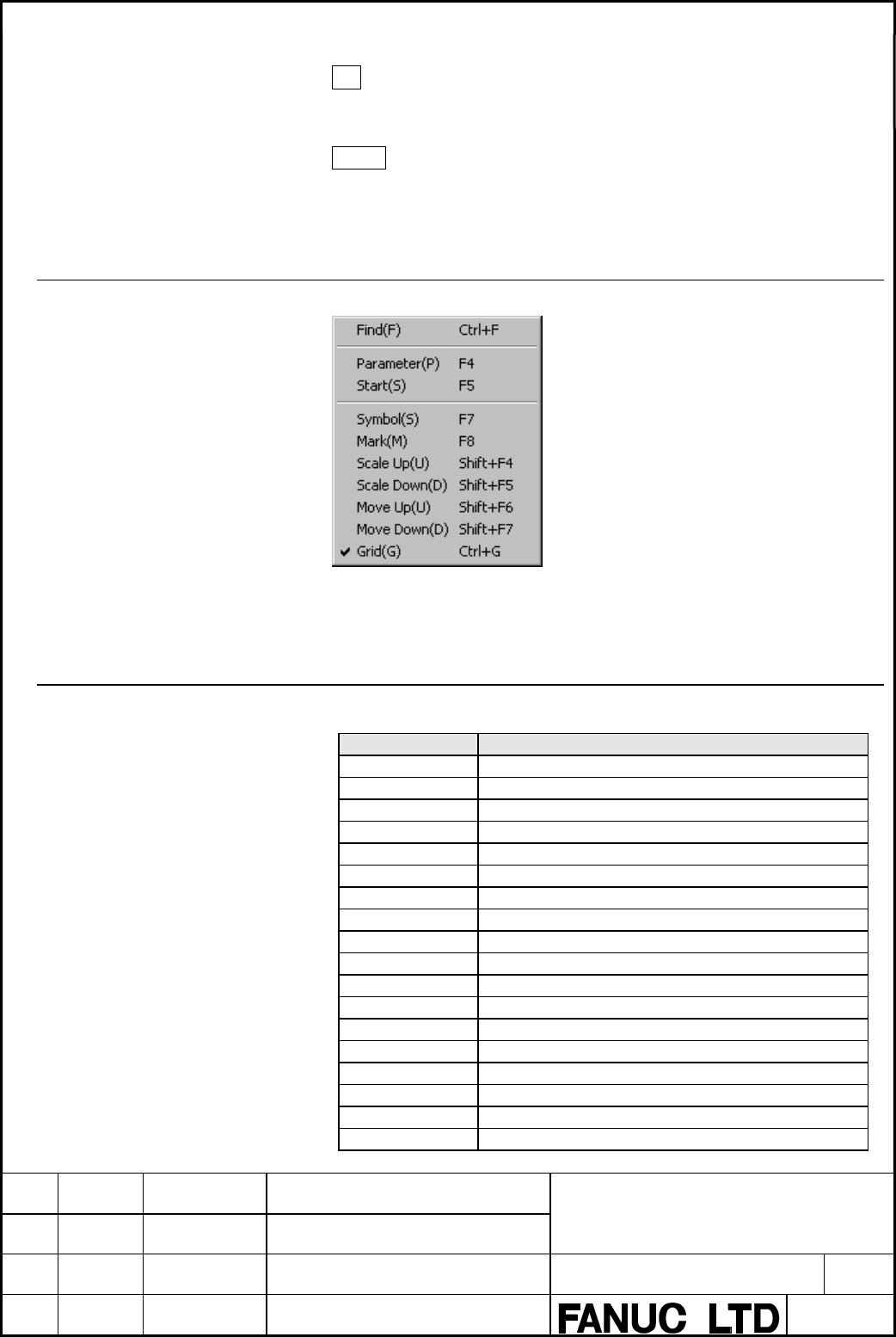

9.10.7 Context Menu
Fig. 9.10.7
9.10.8 Shortcut Keys
Table 9.10.8
Shortcut key Function
[F1] Help
[F3] Searches for the time or frame.
[F4] Displays the [Parameter] screen.
[F5] Starts or stops tracing.
[F7] Displays symbols.
[F8] Marking
[Shift]+[F4] Zoom-in
[Shift]+[F5] Zoom-out
[Shift]+[F6] Moves the signal address up.
[Shift]+[F7] Moves the signal address down.
[Ctrl]+[Home] Moves to the beginning of the trace result.
[Ctrl]+[End] Moves to the end of the trace result.
PageUp Scrolls the signal address display up.
PageDown Scrolls the signal address display down.
Ctrl + PageUp Displays the trace result on the previous page.
Ctrl + PageDown Displays the trace result on the next page.
Ctrl+Shift+A Trace result output.
Ctrl + G Displays or does not display grid lines.
