3.5.24.3 Context menu

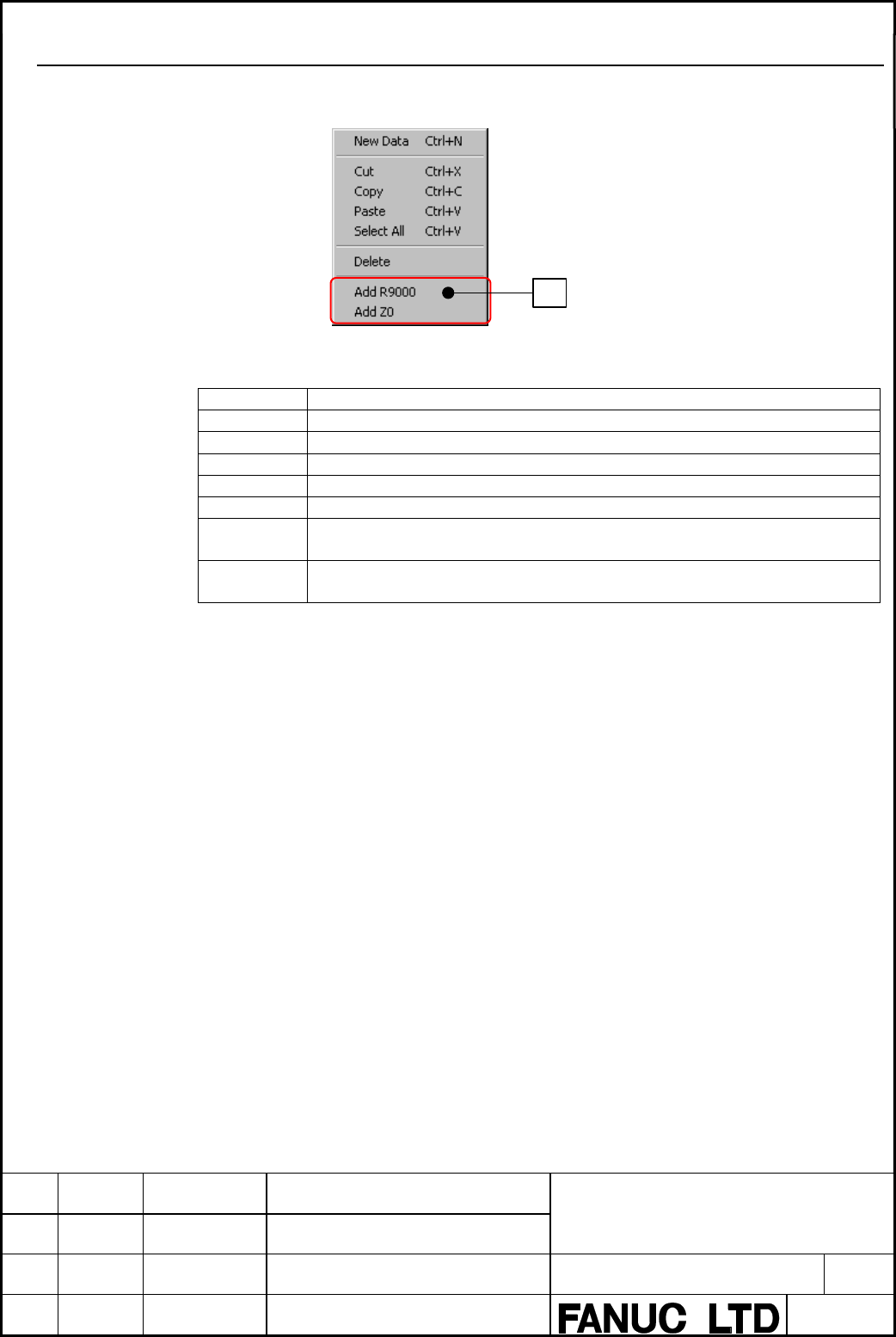

Right-click on the address display window to display the context menu.
Fig. 3.5.24.3(a)
New Data New Data screen is displayed. Fig. 3.5.24.1(d)
Cut Move selected data to the clipboard.
Copy Copy selected data to the clipboard.
Paste Copy data from the clipboard by the addition.
Select All Select all the addresses on the address display window.
Delete Delete the selected data.
Add R9000 Add the setting that replaces R9000 to R9499 with Z0 to the address display
window. †1
Add Z0 Add the setting that replaces Z0 to Z499 with R9000 to the address display
window. †1
†1: This item is displayed when the ladder program is PMC Memory C of
30
i/31i/32i-A.
