FAPT Ladder-III Operators manual Page 170

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05
- 144 -
3 To close the [Symbol/COMMENT] screen, click the <Close>
button.
This operation has nothing to do with whether to save the data
entered on the [New Data] screen for [SYMBOL/COMMENT].
See Section 3.11, "Saving Programs," for an explanation about
how to save data entered on the [New Data] screen for
[SYMBOL/COMMENT].
See Section 3.12 "Closing Programs," for an explanation about
how to close the sequence program without saving data entered
on the [New Data] screen for [SYMBOL/COMMENT].

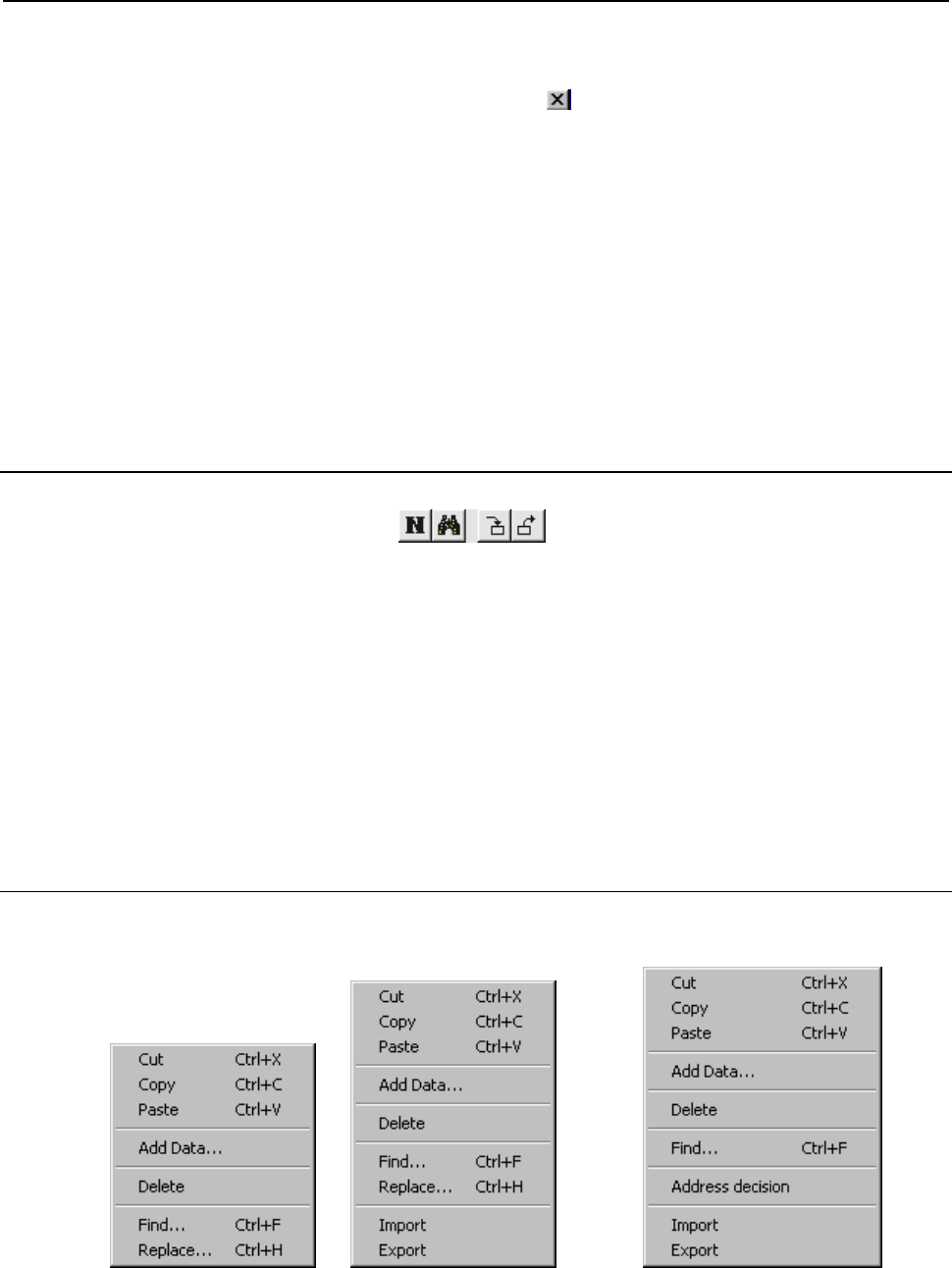

3.7.3 Toolbar
<1><2>
<3><4>
Fig. 3.7.3
<1> <Add New Data> button
The [New Data] screen appears.
<2> <Search> button
The [Search] screen appears.
<3> <Import> button
The [Import] screen appears.
<4> <Export> button
The [Export] screen appears.
3.7.4 Context Menu
Right-click the [SYMBOL/COMMENT] screen. The following
context menu appears.
Fig. 3.7.4(a) Fig. 3.7.4(b) 30i/31i/32i-A Fig. 3.7.4(c) 30i/31i/32i-A Extended function
<Close> button
