11.2.2 Context Menu

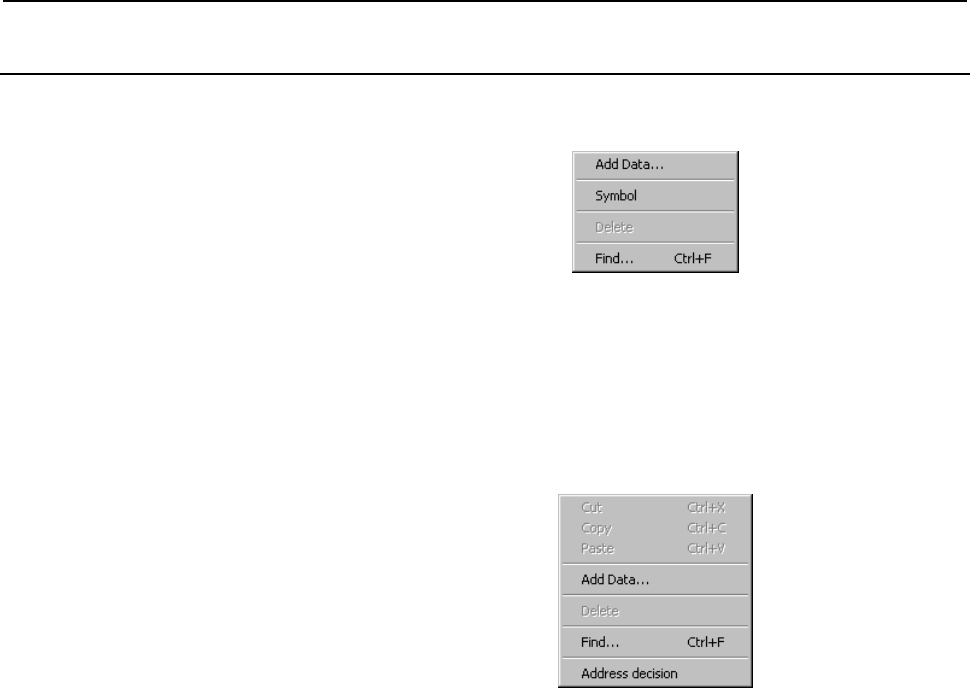

Right-click the [Display selection window] screen. The following

context menu appears.

Fig. 11.2.2(a)

Add Data... Display [Add Data] screen

Symbol Display the symbol which is set in P address of sub program

Delete Delete all symbols of [Symbol/comment display window]

Find... Find [Symbol/comment display window]

Right-click the [Symbol comment display window]. The following

context menu appears.

Fig. 11.2.2(a)

Cut Move selected data to the clipboard

Copy Copy selected data to the clipboard

Paste Copy from the clipboard additionally

Add Data... Display [Add Data] screen

Delete Delete all symbols of [Symbol/comment display window]

Find... Find [Symbol/comment display window]

Address

decision

Decide the address that is automatically assigned.

Decide the assigned address to delete the * mark

which places in the top of the address.
