B-66234EN/05 11.EXTENDED SYMBOL/COMMENT FUNCTION

- 433 -

11.19 HOW TO CONVERT FROM CONVENTIONAL MODEL

To convert the LAD file from conventional model to extended

function, convert to the ladder via mnemonic file.

11.19.1 Converting Mnemonic File

Create mnemonic file from the LAD file of conventional model.

Procedure

1. Open the LAD file of conventional model with FANUC

LADDER-III.

2. Click [Tool(T)] - [Mnemomic Convet(M)].

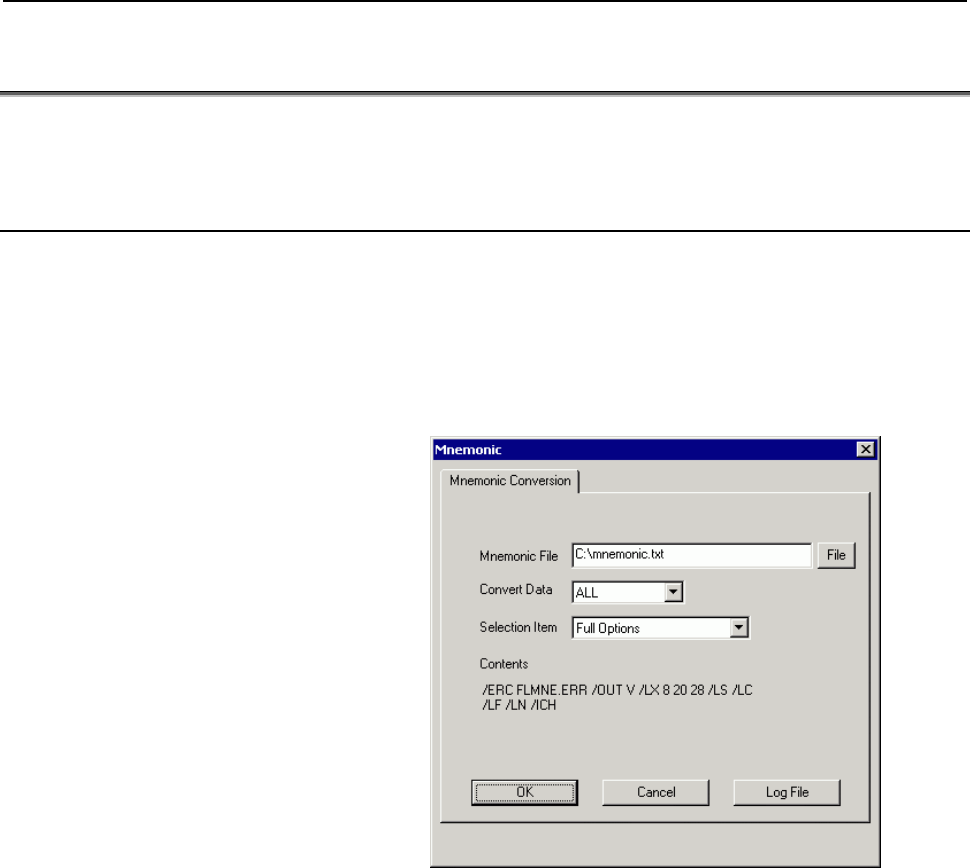

3. Open [Mnemonic] screen.

Fig. 11.19.1

4. Enter [Mnemonic File], [Convert Data Kind] and [Selection

Item] and click the <OK> button, then the mnemonic file is

output.
