B-66234EN/05 11.EXTENDED SYMBOL/COMMENT FUNCTION

- 393 -

11.2.5 Cut, Copy and Paste of Symbol or Comment Data

Plural symbol and comment data can be selected and cut, copy and

paste operation is available to them.

Procedure

1. Select the symbol to modify or copy.

To select plural symbol and comment data, click the

symbol/Comment data with pressing [Ctrl] key.

2. Click the [Cut] or [Copy] of context menu which is displayed by

right-clicking the symbol and comment data selected above.

These cut or copied data are able to paste to test editor.

3. To add new symbols from cut or copied data, click the [Paste] of

context menu which is displayed by right-clicking the symbol

and comment data.

4. When the pasted symbol is already registered (Duplicate symbol

has been detected), [Overlap with registered symbol] dialog will

appears. Please modify symbol data and click <OK> button.

11.2.6 Deleting Symbol and Comment Data

Deleting symbol and comment data.

Procedure

1. Select the symbol to delete.

2. Click the [Delete] of context menu that is displayed by

right-clicking the symbol selected above.

3. Confirm message will appear. Click the <OK> button to delete.

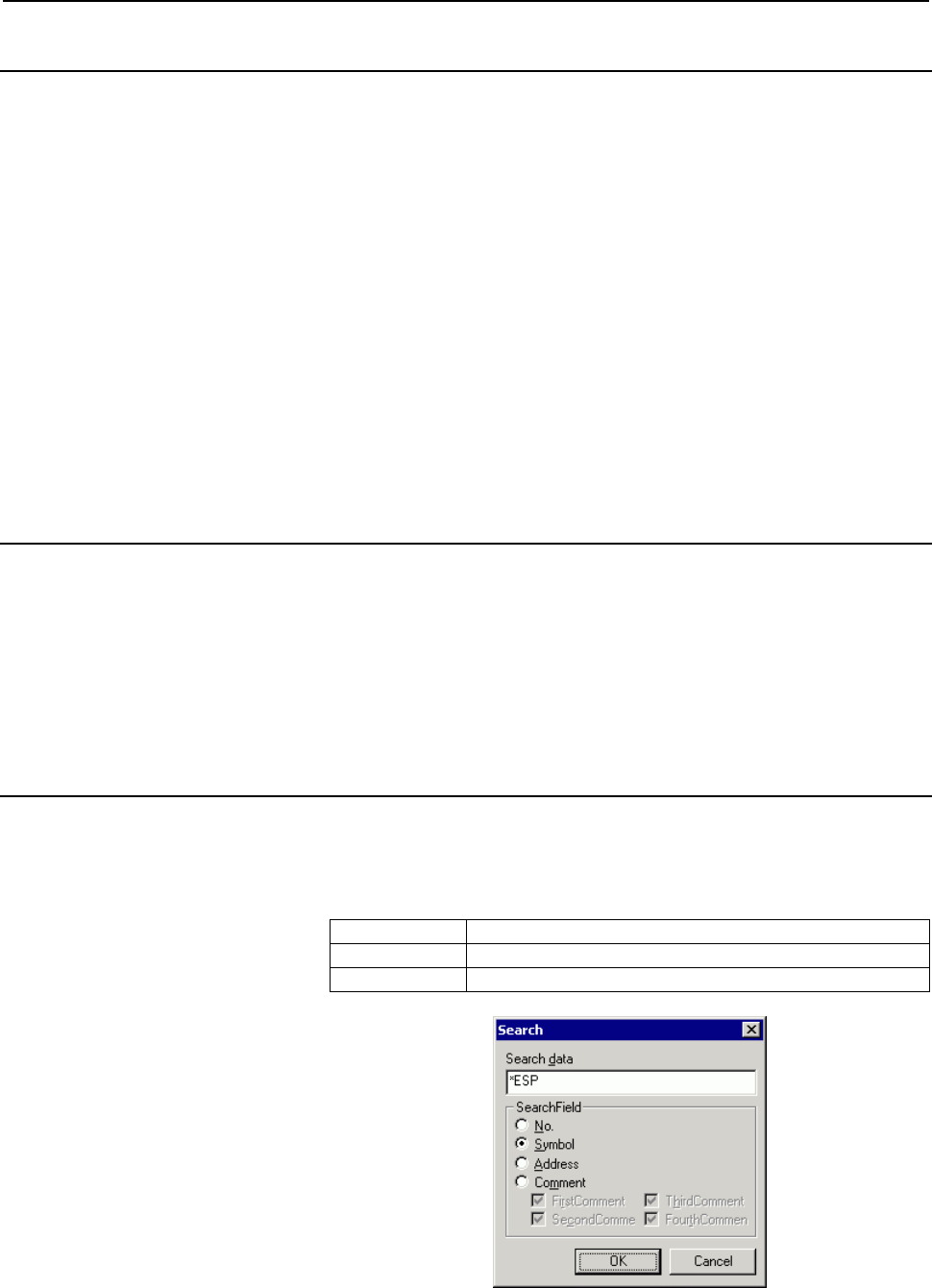

11.2.7 Search

Search the symbol and comment data by No., symbol, address and

comment. It is ignored whether the strings are specified in upper case

or lower case.

Symbol Search same symbol

Address Search same address

Comment Search the comment which include the specified strings.

Fig. 11.2.7
