B-62994EN/02 5. NC PROGRAM
-99-
2. Press the soft key.

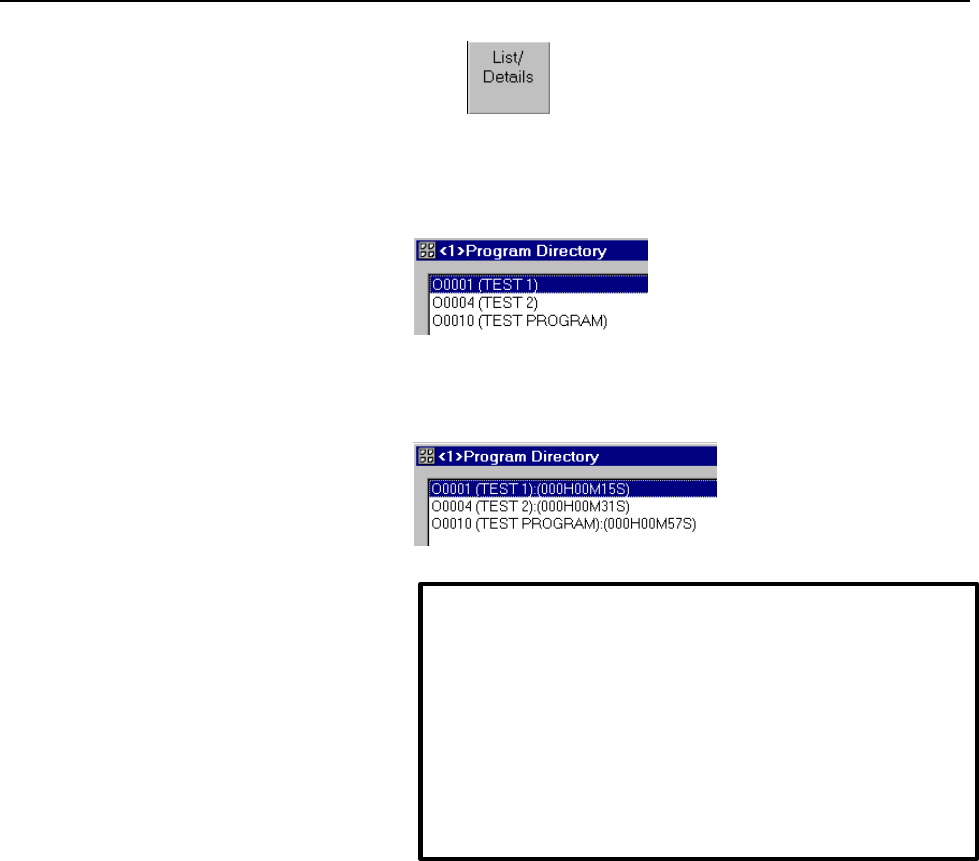

The NC program directory is displayed in detail.
l When the CNC option for the machining time stamp is not provided
l When the CNC option for the machining time stamp is provided
NOTE
Before the machining time can be displayed in the list, the
machining time must be stamped in each program, and the
program must be written back to the CNC.
For an explanation of the machining time stamp, see Section
5.1.15, "Stamping the machining time."
For an explanation of how to write the program back to the
CNC, see Section 5.1.2, "Writing a program back to the NC."
