11.6 Integrating DNC Operation Management Package

This section describes how to integrate the DNC Operation Management

Package.

When the DNC Operation Management Package is integrated with Basic

Operation Package 1, the DNC Operation Management Package functions

can be used with Basic Operation Package 1.

Procedure

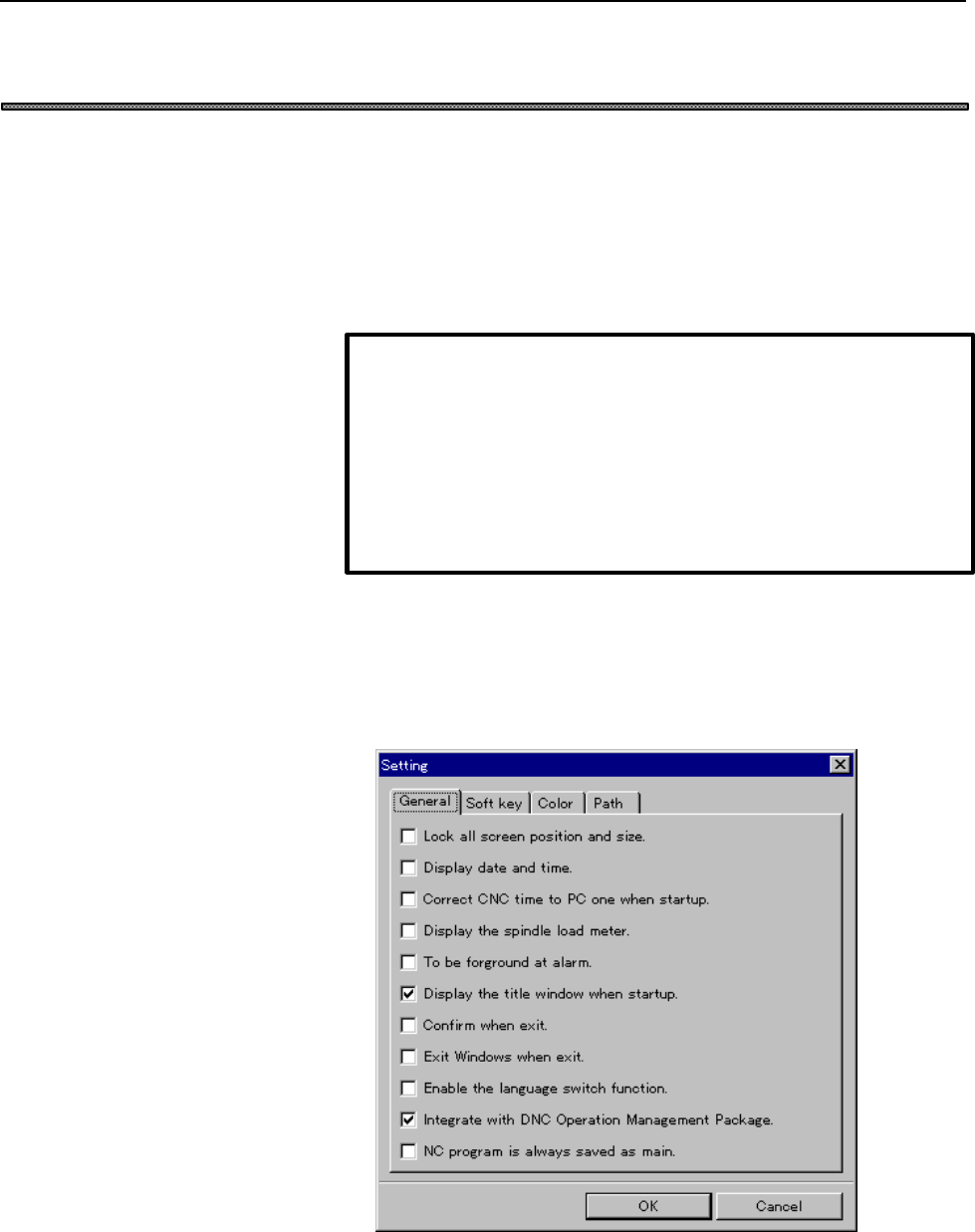

1. If the [Setting] screen is currently not displayed, follow the procedure

described in Section 11.1, "Customizing General Settings for Basic

Operation Package 1" to display the [Setting] screen. Then, click the

"General" tab.

2. Select "Integrate with DNC Operation Management Package".

3. Exit from and restart Basic Operation Package 1.

NOTE

To integrate the DNC Operation Management Package, it must have

already been installed.

When Basic Operation Package 1 and the DNC Operation

Management Package are to be installed on the same personal

computer, Basic Operation Package 1 version 1.4 or later should be

used, regardless of whether these two packages are to be integrated.
